StarTech.com S322M225R

Dual M.2 SATA SSD to 2.5-inch SATA RAID adapter

A two-drive adapter that installs two M.2 SATA B-key/NGFF SSDs in a 2.5-inch SATA drive form factor, with RAID 0, RAID 1, BIG spanning and JBOD support.

2 × M.2 SATARAID 0 / 1 / BIG / JBODSATA III 6Gbps2-year warranty

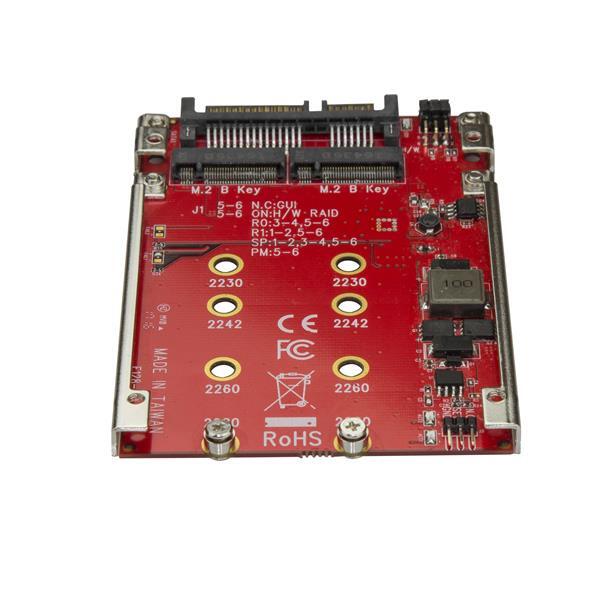

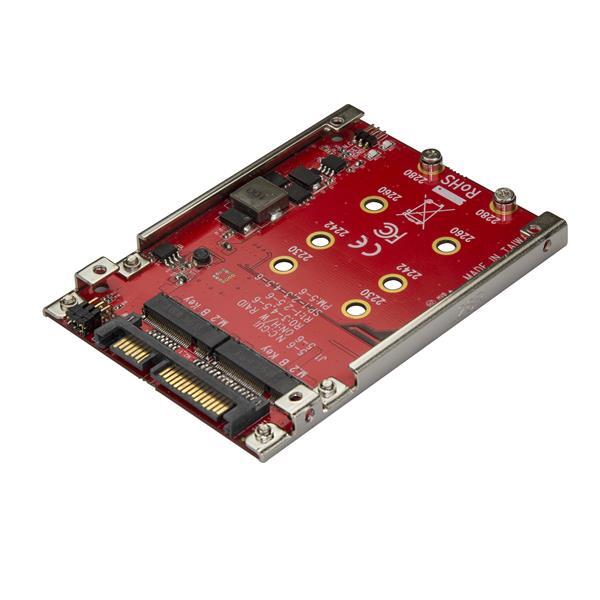

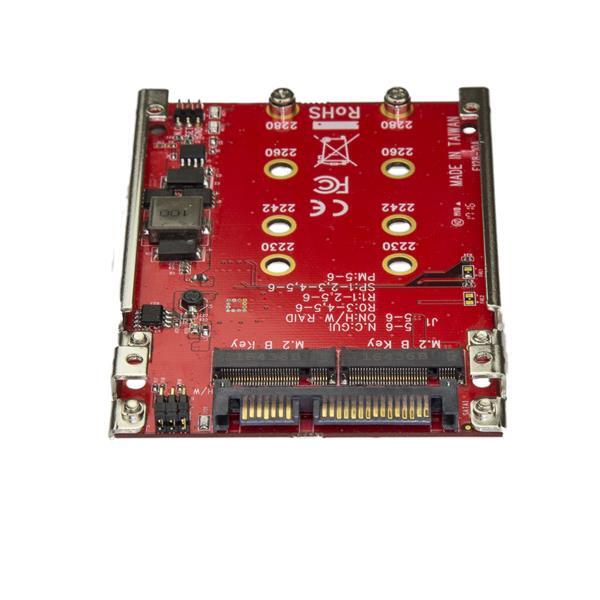

StarTech S322M225R dual M.2 SATA to 2.5-inch SATA RAID adapter

Key capabilities

Two M.2 SATA drives

Supports two M.2 SATA B-key/NGFF SSDs in 2230, 2242, 2260 or 2280 form factors.

RAID options

Supports RAID 0, RAID 1 and BIG/spanning, plus JBOD when used with a SATA controller that supports Port Multiplier.

SATA III performance

Supports SATA III up to 6Gbps with TRIM and S.M.A.R.T. support.

2.5-inch drive-bay form factor

Replaces a conventional 2.5-inch SATA drive while requiring no additional software or drivers.

What to know before buying

This adapter supports M.2 SATA B-key/NGFF drives only. It is not compatible with M.2 NVMe or AHCI PCIe SSDs. JBOD access to both drives requires a host SATA controller with Port Multiplier support.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What drives does the StarTech S322M225R support?

It supports two M.2 SATA B-key/NGFF SSDs in 2230, 2242, 2260 and 2280 sizes.

Does it support M.2 NVMe SSDs?

No. The exact specification states that M.2 NVMe and AHCI PCIe SSDs are not compatible.

Which RAID modes are supported?

RAID 0, RAID 1, BIG/spanning and JBOD are supported.

What is required for JBOD mode?

The host SATA controller must support Port Multiplier to see both drives independently.

What is the maximum interface speed?

The adapter supports SATA III up to 6Gbps.

Does it support TRIM and S.M.A.R.T.?

Yes. Both TRIM and S.M.A.R.T. support are listed.

Does it require drivers?

No. The specification states that it is OS independent and requires no additional software or drivers.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(S322M225R)

Features and highlights

Two M.2 SATA drives

Supports two M.2 SATA B-key/NGFF SSDs in 2230, 2242, 2260 or 2280 form factors.

RAID options

Supports RAID 0, RAID 1 and BIG/spanning, plus JBOD when used with a SATA controller that supports Port Multiplier.

SATA III performance

Supports SATA III up to 6Gbps with TRIM and S.M.A.R.T. support.

2.5-inch drive-bay form factor

Replaces a conventional 2.5-inch SATA drive while requiring no additional software or drivers.

2 × M.2 SATA
RAID 0 / 1 / BIG / JBOD
SATA III 6Gbps
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech S322M225R.

Warranty Information

Warranty	2 Years

Hardware

Chipset ID	ASMedia - ASM1092R
Compatible Drive Types	M.2 (SATA, B-Key, NGFF)
Drive Installation	Fixed
Interface	SATA
Number of Drives	2
Supported Drive Height(s)	2230
Supported Drive Height(s)	2242
Supported Drive Height(s)	2260
Supported Drive Height(s)	2280

Performance

General Specifications	Not compatible with M.2 NVMe or AHCI PCI-Express SSDs In order to see multiple drives in JBOD mode, your computerÕs SATA controller must also support Port Multiplier.
Hot Swap Capability	No
Maximum Data Transfer Rate	6 Gbps
Port Multiplier	Yes
RAID	Yes
S.M.A.R.T. Support	Yes
Supported RAID Modes	RAID 0 (Striped Disks)
Supported RAID Modes	RAID 1 (Mirrored Disks)
Supported RAID Modes	JBOD - (Just a Bunch of Disks)
Supported RAID Modes	BIG (Spanning or Concatenation)
TRIM Support	Yes
Type and Rate	SATA III (6 Gbps)

Connector(s)

Drive Connectors	2 - M.2 (SATA, B-Key, NGFF) Receptacle
Host Connectors	1 - SATA Data & Power Combo (7+15 pin) Receptacle

Software

OS Compatibility	OS independent; No software or drivers required

Environmental

Humidity	15% to 90%
Operating Temperature	+5¡C to +50¡C (+41¡F to +122¡F)
Storage Temperature	-25¡C to +70¡C (-13¡F to +158¡F)

Physical Characteristics

Color	Red
Product Height	0.3 in [0.7 cm]
Product Length	3.9 in [10 cm]
Product Width	2.8 in [70 mm]
Weight of Product	1.4 oz [41 g]

Packaging Information

Package Height	1.2 in [30 mm]
Package Length	5.6 in [14.2 cm]
Package Width	6.8 in [17.2 cm]
Shipping (Package) Weight	3.9 oz [110 g]

What's in the Box

Included in Package	1 - dual M.2 to SATA host adapter
Included in Package	2 - sets of drive-mounting hardware
Included in Package	4 - adapter-mounting screws
Included in Package	1 - quick-start guide

SKU	S322M225R
Barcode #	65030875141
Brand	Startech
Shipping Weight	0.1000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3
