StarTech 2.5" SATA III Removable HDD Bay for PCI Slot - S25SLOTR
Model # S25SLOTR
-
SKU: S25SLOTR
- Pick Up Available
- Australian Warranty
- Checkout Securely

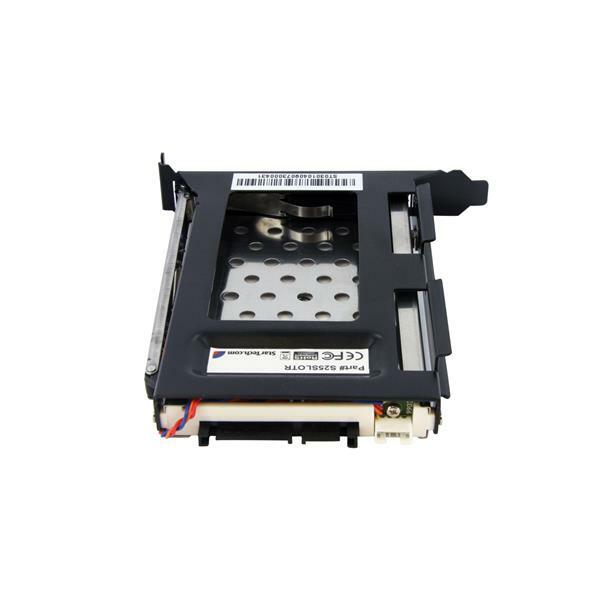

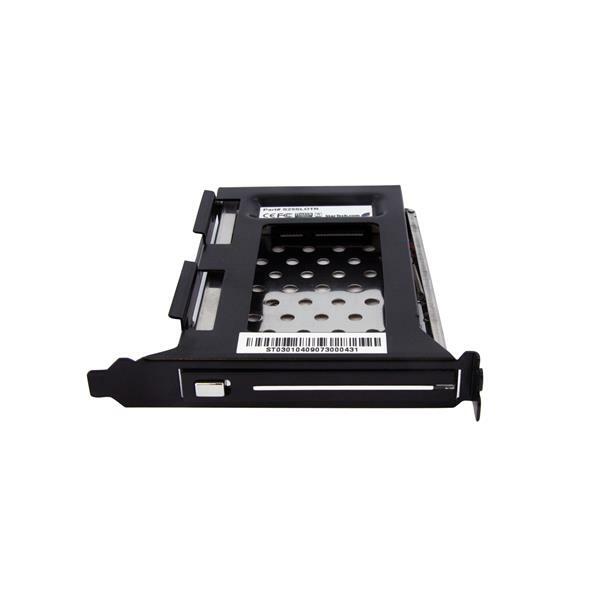

2.5-inch SATA removable drive bay for a full-profile expansion slot
A trayless removable bay that installs in an available full-profile expansion-slot opening, providing rear-panel access to one compatible 2.5-inch SATA HDD or SSD.
Key capabilities
Uses an expansion-slot opening
Mounts in a full-profile expansion-slot opening rather than a front drive bay.
Trayless drive access
Insert and remove a bare compatible 2.5-inch SATA drive without a separate tray.
Hot-swap capable
The exact specification lists hot-swap capability when the host SATA environment also supports it.
SATA cabling included
Includes a 20-inch SATA data cable and LP4-to-SATA breakout/power cable.
What to know before buying
This is not a PCI data-interface card. It occupies a full-profile expansion-slot opening but connects through SATA data and power. The supplied specification lists drives up to 9.5mm high and testing up to 500GB.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is the S25SLOTR used for?
Does the drive connect through PCI?
Does it support hot swap?
What drive size is supported?
What capacity is specified?
Does it require drivers?
What is included?
What warranty applies in Australia?
(S25SLOTR)
Features and highlights
Uses an expansion-slot opening
Mounts in a full-profile expansion-slot opening rather than a front drive bay.
Trayless drive access
Insert and remove a bare compatible 2.5-inch SATA drive without a separate tray.
Hot-swap capable
The exact specification lists hot-swap capability when the host SATA environment also supports it.
SATA cabling included
Includes a 20-inch SATA data cable and LP4-to-SATA breakout/power cable.
- 2.5-inch SATA
- Trayless access
- Hot-swap capable
- 2-year warranty
Specifications
Verified specifications for StarTech S25SLOTR.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Compatible Drive Types | SATA |
|---|---|
| Drive Installation | Removable |
| Drive Size | 2.5in |
| Fan(s) | No |
| Number of Drives | 1 |
Performance
| Hot Swap Capability | Yes |
|---|---|
| Max Drive Capacity | Tested up to 500 GB |
Connector(s)
| Drive Connectors | 1 - SATA Data & Power Combo (7+15 pin) Receptacle |
|---|---|
| Host Connectors | 1 - LP4 (4 pin; Large Drive Power) Male |
| Host Connectors | 1 - SATA (7 pin, Data) Plug |
| Host Connectors | 1 - SATA Power (15 pin) Plug |
Software
| OS Compatibility | OS independent; No software or drivers required |
|---|
Indicators
| LED Indicators | 1 - Solid - Power On Blinking - Activity |
|---|
Environmental
| Humidity | 80% RH |
|---|---|
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -5°C to 75°C (23°F to 167°F) |
Physical Characteristics
| Color | Black |
|---|---|
| Enclosure Type | Aluminum and Steel |
| Max Drive Height | 0.4 in [9.5 mm] |
| Product Height | 4.7 in [12 cm] |
| Product Length | 5.7 in [14.5 cm] |
| Product Width | 0.8 in [21 mm] |
| Weight of Product | 5.9 oz [167 g] |
Packaging Information
| Package Height | 1.3 in [33 mm] |
|---|---|
| Package Length | 5.4 in [13.6 cm] |
| Package Width | 6.3 in [16.1 cm] |
| Shipping (Package) Weight | 8.3 oz [234 g] |

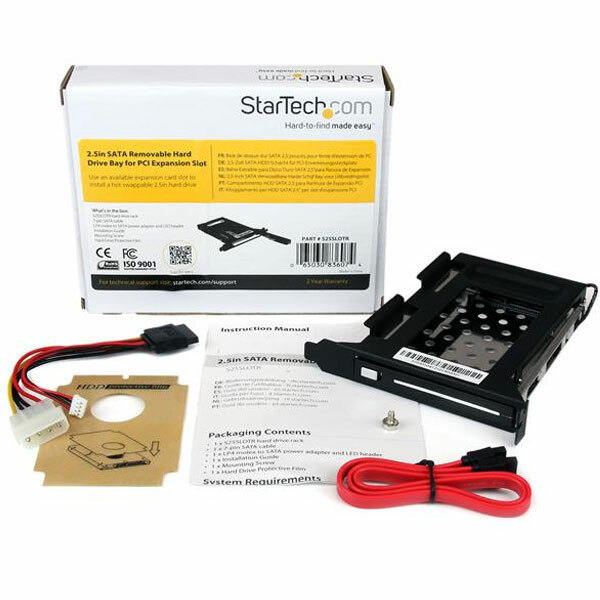

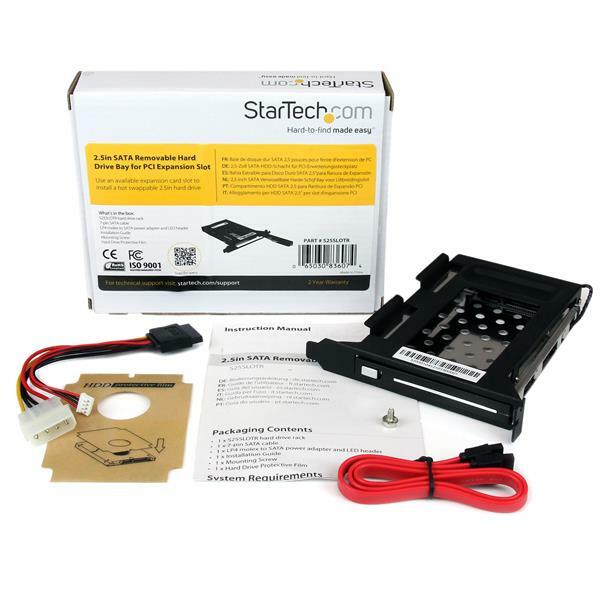

What's in the Box
| Included in Package | 1 - Expansion Slot Removable HDD bracket |
|---|---|
| Included in Package | 1 - 20in SATA cable |
| Included in Package | 1 - LP4 SATA breakout cable |
| Included in Package | 1 - Hard Drive Protective Film |
| Included in Package | 1 - Mounting Screws |
| Included in Package | 1 - Instruction Manual |
| SKU | S25SLOTR |
| Barcode # | 65030836074 |
| Brand | Startech |
| Shipping Weight | 0.2300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.000800000m3 |
