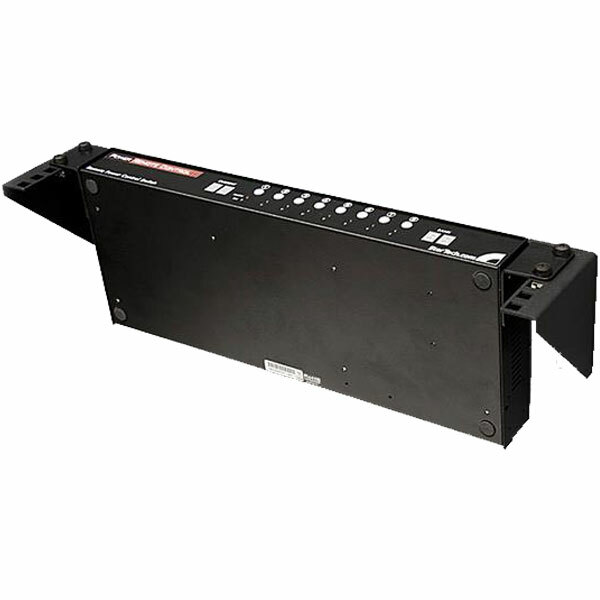

The RK419WALLV 4U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 4U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.
Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.
Need more storage space? StarTech.com also offers a 1U 19in Wallmount Bracket, a 2U 19in Wallmount Bracket and a 3U 19in Wallmount Bracket.
(RK419WALLV)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Frame Type | Open Frame | |
| Industry Standards | EIA/ECA-310-E | |
| Mounting Hole Types | Square (For Cage Nut) | |
| Mounting Rail Profile | L-Shape | |
| Rack Type | 2-Post | |
| U Height | 4U | |
| Wallmountable | Yes | |
| Performance | ||
| Weight Capacity | 125.3 lb [56.7 kg] | |
| Special Notes / Requirements | ||
| Note | Package includes 1½” screws for mounting to wood surfaces, additional hardware will be required for other materials | |
| Physical Characteristics | ||
| Color | Black | |
| Construction Material | Steel | |
| Enclosure Type | Steel | |
| Product Measurements | ||
| Product Height | 7.6 in [19.3 cm] | |
| Product Length | 5.9 in [15.1 cm] | |
| Product Width | 19.8 in [50.4 cm] | |
| Weight of Product | 2.4 lb [1.1 kg] | |
| Packaging Information | ||
| Flat Pack (Assembly Required) | No | |
| Package Height | 6.4 in [16.2 cm] | |
| Package Length | 20.4 in [51.9 cm] | |
| Package Width | 8.3 in [21.1 cm] | |
| Shipping (Package) Weight | 3.7 lb [1.7 kg] | |
| What's in the Box | ||
| Included in Package | 1 - Vertical Wall Mount Bracket | |
| 16 - M5 Cage Nuts | ||
| 16 - M5 Screws | ||
| 6 - Wood Screws | ||
| 1 - Instruction Manual | ||
| SKU | RK419WALLV |
| Barcode # | 65030834414 |
| Brand | STARTECH |
| Shipping Weight | 1.6800kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.170m |
| Shipping Length | 0.522m |
| Shipping Cubic | 0.018635000m3 |
