Tool-free drive installation
Plastic pegs secure a compatible 2.5-inch drive in the bracket without metal drive-mounting screws.
StarTech Tool-less 2.5" SSD/HDD Mounting Bracket - BRACKET125PT
Model # BRACKET125PT
-
SKU: BRACKET125PT
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com BRACKET125PT Australian version

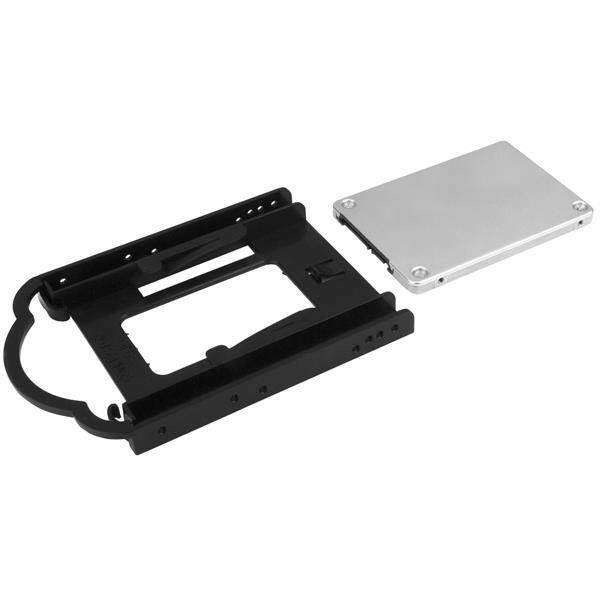

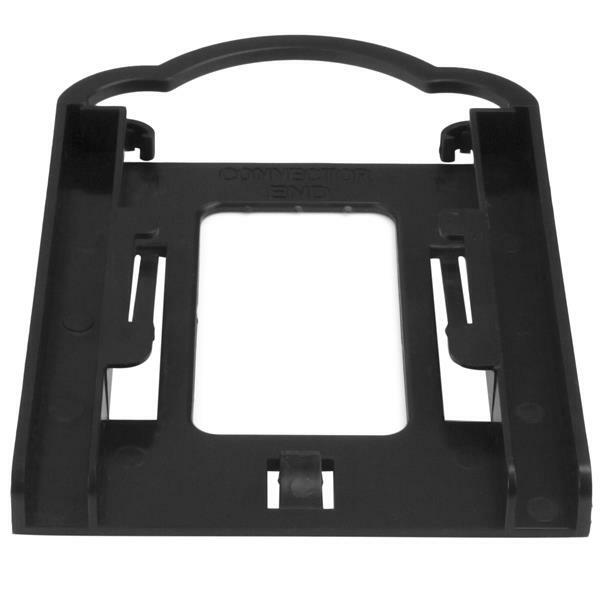

StarTech Toolless 2.5-inch SSD/HDD Mounting Bracket
Fit one 2.5-inch SSD or hard drive into a 3.5-inch bay with a lightweight tool-free bracket that supports several common drive interfaces.
Features and highlights
Practical benefits at a glance
Fits a 3.5-inch bay
Mounts one 2.5-inch storage device in a compatible fixed 3.5-inch desktop or server bay.
Supports common interfaces
Mechanical compatibility includes SATA/IDE, SAS and U.2 drives when the host provides the correct interface.
For slim 2.5-inch drives
Designed for compatible 7mm and 9.5mm drive heights.
Purchase guidance
What to know before ordering
Drive-height check
Use with a 7mm or 9.5mm 2.5-inch drive. Taller 12.5mm and 15mm drives are not listed for this model.
Interface reminder
The bracket is a mechanical mount only; it does not convert SATA, SAS, IDE or U.2 electrical interfaces.
Verified product note: Check drive height, bay size and host interface separately; this bracket provides mounting support and does not perform protocol conversion.
Australian product assurance
Official StarTech.com manufacturer warranty
This BRACKET125PT is the Australian version and is covered by an official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage is subject to StarTech.com terms, eligibility requirements and product assessment.
Questions answered
Frequently asked questions
What is the StarTech BRACKET125PT?
Fit one 2.5-inch SSD or hard drive into a 3.5-inch bay with a lightweight tool-free bracket that supports several common drive interfaces.
What are the main features of the BRACKET125PT?
Tool-free drive installation, Fits a 3.5-inch bay, Supports common interfaces, For slim 2.5-inch drives.
What should I check before buying the BRACKET125PT?
Use with a 7mm or 9.5mm 2.5-inch drive. Taller 12.5mm and 15mm drives are not listed for this model.
What is included with the BRACKET125PT?
1 × mounting bracket; 6 × plastic pegs; quick-start guide
What equipment is the BRACKET125PT compatible with?
Use with a 7mm or 9.5mm 2.5-inch drive. Taller 12.5mm and 15mm drives are not listed for this model.
Is this the Australian version of the BRACKET125PT?
Yes. DeviceDeal supplies the Australian version of the StarTech BRACKET125PT.
Should I keep my DeviceDeal invoice for the BRACKET125PT?
Yes. Keep your DeviceDeal tax invoice as proof of purchase for any eligible warranty request.
What warranty applies to the BRACKET125PT?
It is covered by an official StarTech.com 2 years manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and assessment.
(BRACKET125PT)
Features and highlights
Explore the main capabilities, practical advantages and key points to compare.
Tool-free drive installation
Plastic pegs secure a compatible 2.5-inch drive in the bracket without metal drive-mounting screws.
Fits a 3.5-inch bay
Mounts one 2.5-inch storage device in a compatible fixed 3.5-inch desktop or server bay.
Supports common interfaces
Mechanical compatibility includes SATA/IDE, SAS and U.2 drives when the host provides the correct interface.
For slim 2.5-inch drives
Designed for compatible 7mm and 9.5mm drive heights.
- Tool-free drive installationPlastic pegs secure a compatible 2.5-inch drive in the bracket without metal drive-mounting screws.
- Fits a 3.5-inch bayMounts one 2.5-inch storage device in a compatible fixed 3.5-inch desktop or server bay.
- Supports common interfacesMechanical compatibility includes SATA/IDE, SAS and U.2 drives when the host provides the correct interface.
- For slim 2.5-inch drivesDesigned for compatible 7mm and 9.5mm drive heights.
- Australian versionSupplied by DeviceDeal with official StarTech.com manufacturer warranty coverage in Australia.
StarTech.com BRACKET125PT specifications
StarTech Toolless 2.5-inch SSD/HDD Mounting Bracket
Review the verified current product summary together with every specification supplied in the source catalogue.
Verified product summary
| Drive bays | 1 × fixed 2.5-inch bay |
|---|---|
| Host bay | 3.5-inch |
| Supported drive heights | 7mm and 9.5mm |
| Compatible interfaces | SATA/IDE, SAS and U.2 (mechanical support) |
| Material | Plastic |
| Colour | Black |
| Product dimensions | 150 × 102 × 13 mm |
| Product weight | Approximately 33 g |
| Included | 1 × mounting bracket; 6 × plastic pegs; quick-start guide |
| Manufacturer warranty | 2 Years |
Supplied catalogue Miscellaneous
| Environmentally Friendly | Yes |
|---|
Supplied catalogue Network & Communication
| Wireless LAN | No |
|---|
Supplied catalogue I/O Expansions
| Number of Total Expansion Bays | 1 |
|---|---|
| Number of 2.5" Bays | 1 |
Supplied catalogue Physical Characteristics
| Weight (Approximate) | 34 g |
|---|---|
| Form Factor | Internal |
| Height | 12.7 mm |
| Width | 101.6 mm |
| Depth | 149.9 mm |
| Compatible Drive Bay Width | 3.5" |
| Product Color | Black |
| Product Material | Plastic |
Supplied catalogue Technical Information
| Number of Hard Drives Supported | 1 |
|---|---|
| Number of Solid State Drive Supported | 1 |
Supplied catalogue Interfaces/Ports
| Drive Interface | Serial Attached SCSI (SAS); SATA/600; U.2 |
|---|
Supplied catalogue General Information
| Product Type | Drive Bay Adapter |
|---|---|
| Manufacturer Part Number | BRACKET125PT |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 2.5in SSD / HDD Mounting Bracket for 3.5-in. Drive Bay - Tool-less Installation |
| Brand Name | StarTech.com |
Specification guidance: Check drive height, bay size and host interface separately; this bracket provides mounting support and does not perform protocol conversion.
| SKU | BRACKET125PT |
| Barcode # | 65030866385 |
| Brand | STARTECH |
| Shipping Weight | 0.0600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000750000m3 |
Official StarTech.com manufacturer warranty
Purchase with confidence from DeviceDeal.
2 Years manufacturer warranty
This BRACKET125PT is the Australian version and is covered by an official StarTech.com 2 years manufacturer warranty in Australia.
Keep your DeviceDeal tax invoice as proof of purchase if warranty assistance is required.
Please note: Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
