StarTech.com · HSB100SATBK

StarTech HSB100SATBK 5.25in Trayless Hot-Swap Bay for 3.5in SATA Drive

Trayless mobile rack that installs one 3.5in SATA HDD in an available 5.25in front bay, with SATA III support, key lock and drive activity LED.

Quick answer: HSB100SATBK adds front-access, trayless hot swapping for one 3.5in SATA drive in a 5.25in computer bay.

Best forSystem builders, test benches, image deployment, repair environments and systems that regularly exchange a 3.5in SATA drive.

Check before orderingThe computer requires a free 5.25in front bay, internal SATA data and power connections, and host support for hot swapping.

Answers before you buy

Frequently asked questions

What is StarTech HSB100SATBK?

It is a trayless hot-swap mobile rack for one 3.5in SATA drive, installed in a 5.25in front bay.

Which drives are supported?

One standard 3.5in SATA hard disk drive is supported.

Which computer bay space is required?

One available 5.25in front drive bay is required.

What is the maximum interface speed?

It supports SATA III transfers up to 6Gbps with a compatible drive and host controller.

Does it support hot swapping?

Yes. Hot-swap operation requires compatible host SATA hardware and configuration.

Is software required?

No. It is OS independent and does not require software or drivers; the host controller and operating environment must support the installed drives and intended hot-swap workflow.

Does it include physical drive security?

Yes. The front door includes a key lock.

What warranty applies?

HSB100SATBK carries a 2-year StarTech.com manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(HSB100SATBK)

Features & highlights

Why choose HSB100SATBK?

?Trayless drive accessInsert or remove a compatible 3.5in SATA drive without a separate carrier tray.

?SATA III supportSupports SATA drive connections up to 6Gbps with a compatible controller.

?Built for repeated exchangesRated for more than 50,000 insertion cycles.

?Front door key lockHelps limit unauthorised drive removal.

?Power and activity statusFront LED reports drive power and activity.

?OS-independent designNo software or driver installation is required.

Compatibility reminder: The computer requires a free 5.25in front bay, internal SATA data and power connections, and host support for hot swapping.

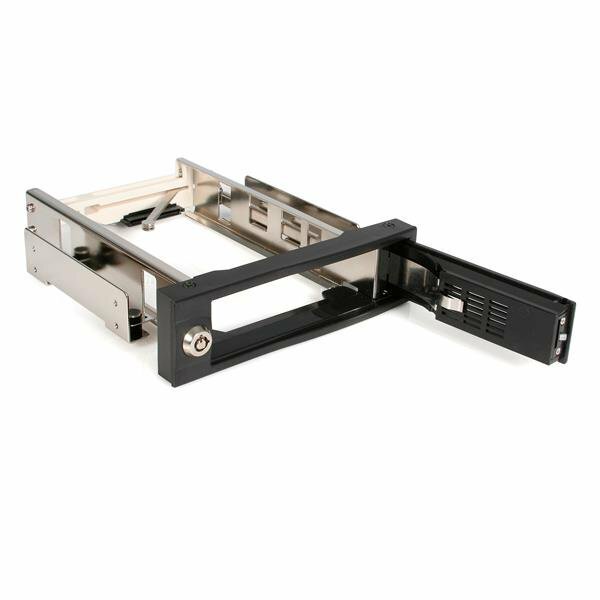

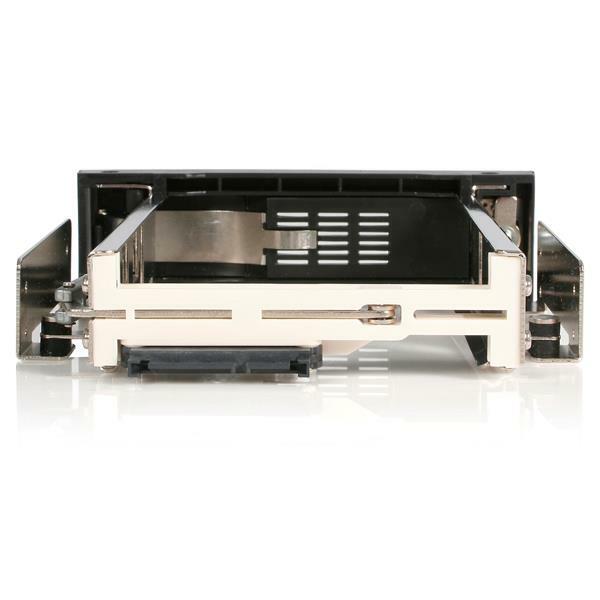

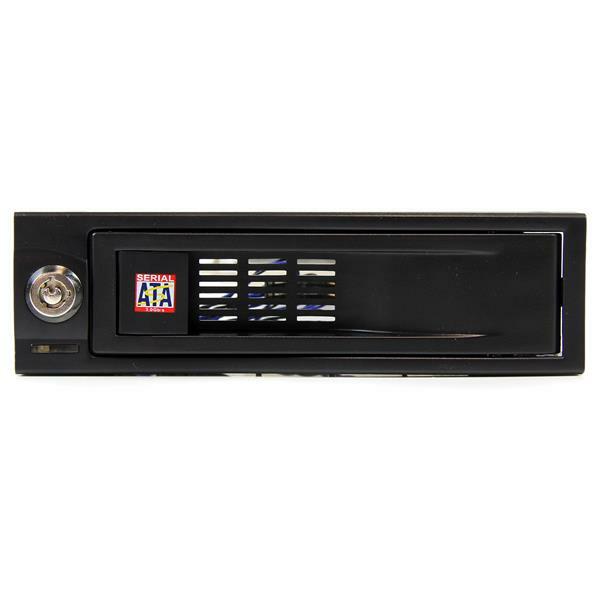

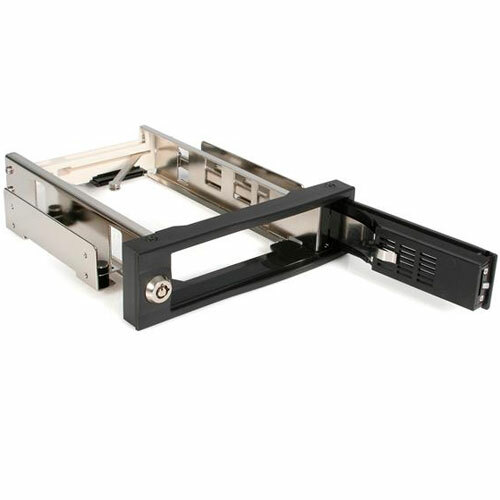

StarTech HSB100SATBK 5.25in Trayless Hot-Swap Bay for 3.5in SATA Drive product image

Technical specifications

HSB100SATBK specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Compatible Drives	1 × 3.5in SATA HDD
Computer Bay Required	1 × 5.25in front bay
Front Door Key Lock	Yes
Enclosure	Aluminium and plastic
Performance
Hot Swap Capability	Yes
Interface Rate	SATA III up to 6Gbps
Insertion Rating	50,000+ cycles
Connectors
Drive Side	SATA data and SATA power receptacles
Host Side	SATA data and SATA power plugs
Physical Characteristics
Dimensions	184 × 149 × 42mm
Weight	261g
Colour	Black
What's in the Box
Included	Hot-swap bay, 2 keys, screw kit, instruction manual and activity LED wire

Sources: https://www.devicedeal.com.au/startech-5.25-trayless-hot-swap-mobile-rack-for-3 and https://www.startech.com/

SKU	HSB100SATBK
Barcode #	65030821360
Brand	Startech
Shipping Weight	0.3600kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.001000000m3
