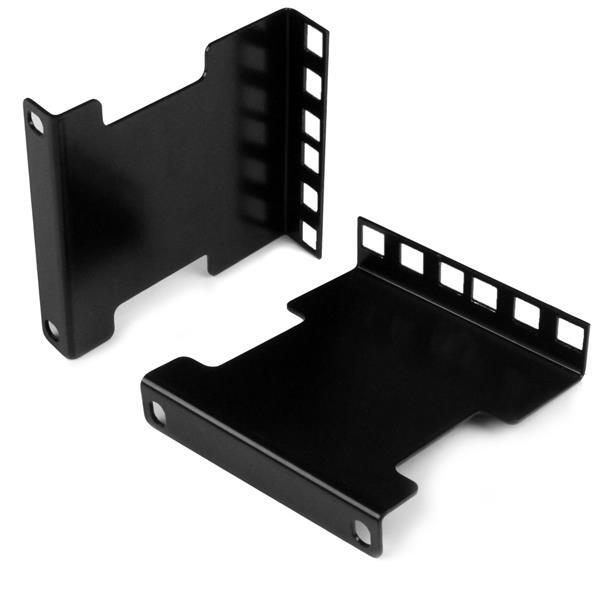

StarTech.com RDA2U

2U server rack depth extender adapter kit

A steel 2U rack depth adapter kit that lets you extend or reduce equipment mounting depth by up to 4 in (10 cm), with support for both two-post and four-post installations.

2U4 in / 10 cm adjustment2-post: 20 lb [9 kg]2-year warranty

StarTech RDA2U 2U server rack depth extender adapter kit

Key capabilities

Adjust rack depth

Extends or reduces the mounting depth of the rack position by up to 4 in (10 cm).

Two-post installation

Supports a total equipment load up to 20 lb [9 kg] when used in a two-post installation.

Four-post installation

Supports a total equipment load up to 130 lb [59 kg] when used in a four-post installation.

Rack installation hardware

Includes two depth-adapter brackets, four 10-32 screws, four 10-32 cage nuts and an instruction manual.

What to know before buying

This adapter changes the effective mounting depth for 2U of rack space; it does not add rack units. Confirm the equipment load, rack-post arrangement and required 4 in (10 cm) offset before installation.

Product video

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What does the StarTech RDA2U rack extender do?

It extends or reduces the mounting depth of 2U of server-rack space by up to 4 in (10 cm).

How much rack space does this adapter use?

It is designed for 2U of rack space.

What is the two-post weight capacity?

The official specification lists a total two-post capacity of 20 lb [9 kg].

What is the four-post weight capacity?

The official specification lists a total four-post capacity of 130 lb [59 kg].

How far can it change the mounting depth?

It can extend or recess the mounting position by up to 4 in (10 cm).

What material and colour are the brackets?

The brackets are steel with a black finish.

What comes in the package?

The package includes two depth-adapter brackets, four 10-32 x 5/8 screws, four 10-32 cage nuts and one instruction manual.

What warranty applies to the StarTech RDA2U in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(RDA2U)

Features and highlights

Adjust rack depth

Extends or reduces the mounting depth of the rack position by up to 4 in (10 cm).

Two-post installation

Supports a total equipment load up to 20 lb [9 kg] when used in a two-post installation.

Four-post installation

Supports a total equipment load up to 130 lb [59 kg] when used in a four-post installation.

Rack installation hardware

Includes two depth-adapter brackets, four 10-32 screws, four 10-32 cage nuts and an instruction manual.

2U
4 in / 10 cm adjustment
2-post: 20 lb [9 kg]
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech RDA2U.

Hardware

Warranty	2 Years
U Height	2U
Mounting hole type	Not separately stated in current exact-SKU datasheet
Cable Management	No
Material	Steel
Colour	Black

Performance

Depth adjustment	Up to 4 in [10 cm] longer or shorter
2-Post Weight Capacity	20 lb [9 kg]
4-Post Weight Capacity	130 lb [59 kg]

Physical Characteristics

Product length	4.4 in [11.3 cm]
Product width	3.5 in [9.0 cm]
Product height	1.0 in [2.5 cm]
Weight of product	8.7 oz [246.8 g]

Packaging Information

Package quantity	1
Package length	4.8 in [12.3 cm]
Package width	4.9 in [12.4 cm]
Package height	1.2 in [3.1 cm]
Shipping weight	10.9 oz [310.0 g]

What's in the Box

Depth-adapter brackets	2
10-32 x 5/8 screws	4
10-32 cage nuts	4
Instruction manual	1

SKU	RDA2U
Barcode #	65030865449
Brand	Startech
Shipping Weight	0.3000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.110m
Shipping Cubic	0.000550000m3
