StarTech.com RK319WALLV

3U vertical 19-inch wall-mount rack bracket

A fully assembled 3U steel bracket for mounting compatible 19-inch rack equipment vertically on a wall, with current exact-SKU StarTech capacity up to 150 lb (68 kg).

3U150 lb / 68 kg19-inch rack standardLifetime warranty

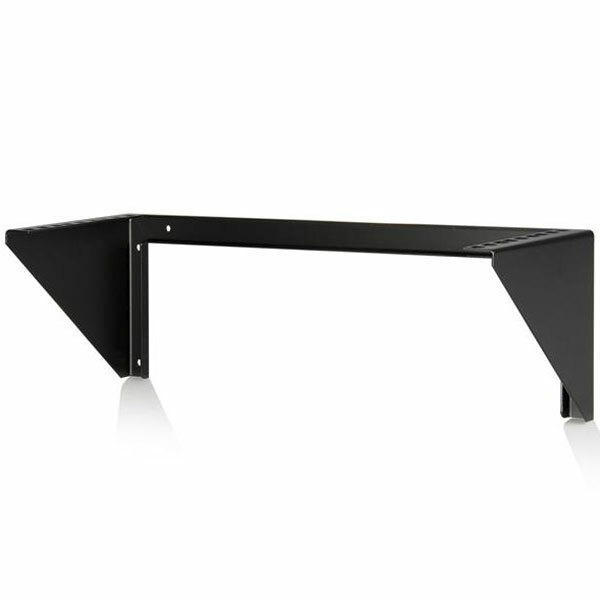

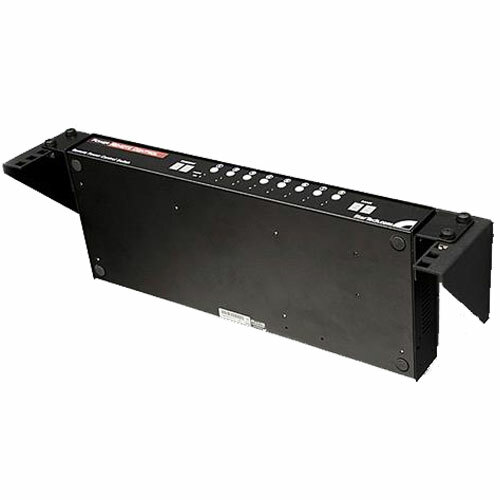

StarTech RK319WALLV 3U vertical wall-mount rack bracket

Key capabilities

Vertical space-saving mount

Mounts compatible rack equipment vertically to help preserve floor and desk space.

150 lb / 68 kg capacity

The current exact-SKU StarTech datasheet lists a maximum equipment load of 150 lb (68 kg).

Standard rack hardware

Built to EIA/ECA-310-E with square cage-nut mounting holes and an L-shaped rail profile.

Fully assembled steel bracket

Ships assembled and includes M5 rack hardware plus wood screws for mounting to suitable wood construction.

What to know before buying

The included mounting screws are intended for wood surfaces. Other wall materials require suitable additional mounting hardware. Confirm the supporting structure, equipment dimensions and total load before installation.

Product video

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech RK319WALLV used for?

It mounts compatible 19-inch rack equipment vertically on a wall in 3U of rack space.

How much weight can the RK319WALLV support?

The current exact-SKU StarTech datasheet lists a maximum equipment load of 150 lb (68 kg).

What rack standard does it use?

It is designed to EIA/ECA-310-E 19-inch rack standards with square cage-nut mounting holes.

Does the bracket require assembly?

No. The current StarTech specification states that it ships fully assembled.

What mounting hardware is included?

The package includes 12 M5 screws, 12 M5 cage nuts, six wood screws and a quick-start guide.

Are the supplied screws suitable for every wall type?

No. StarTech specifies the included screws for wood surfaces; other wall materials require suitable additional mounting hardware.

What are the current product dimensions?

The current exact-SKU StarTech datasheet lists approximately 6.1 x 19.9 x 5.9 inches (15.5 x 50.5 x 15.0 cm), length x width x height.

What warranty applies to the StarTech RK319WALLV in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(RK319WALLV)

Features and highlights

Vertical space-saving mount

Mounts compatible rack equipment vertically to help preserve floor and desk space.

150 lb / 68 kg capacity

The current exact-SKU StarTech datasheet lists a maximum equipment load of 150 lb (68 kg).

Standard rack hardware

Built to EIA/ECA-310-E with square cage-nut mounting holes and an L-shaped rail profile.

Fully assembled steel bracket

Ships assembled and includes M5 rack hardware plus wood screws for mounting to suitable wood construction.

3U
150 lb / 68 kg
19-inch rack standard
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech RK319WALLV.

Hardware

Warranty	Lifetime
Frame type	Open Frame
Industry standard	EIA/ECA-310-E
Mounting hole type	Square (For Cage Nut)
Mounting rail profile	L-Shape
Rack type	2-Post
U height	3U
Wallmountable	Yes

Performance and Requirements

Weight capacity	150.0 lb [68.0 kg]
Mounting note	Included screws are for wood surfaces; additional suitable hardware is required for other materials

Physical Characteristics

Colour	Black
Construction material	Steel
Product length	6.1 in [15.5 cm]
Product width	19.9 in [50.5 cm]
Product height	5.9 in [15.0 cm]
Weight of product	2.0 lb [0.9 kg]

Packaging

Flat pack / assembly required	No
Package length	6.9 in [17.6 cm]
Package width	21.5 in [54.5 cm]
Package height	6.7 in [17.1 cm]
Shipping weight	3.3 lb [1.5 kg]

What's in the Box

3U vertical wall-mount bracket	1
M5 screws	12
M5 cage nuts	12
Wood screws	6
Quick-start guide	1

SKU	RK319WALLV
Barcode #	65030834407
Brand	Startech
Shipping Weight	1.4200kg
Shipping Width	0.170m
Shipping Height	0.170m
Shipping Length	0.522m
Shipping Cubic	0.015086000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
