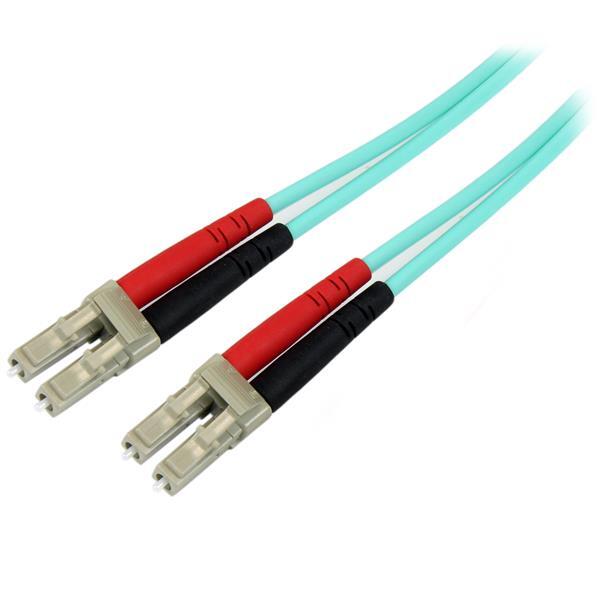

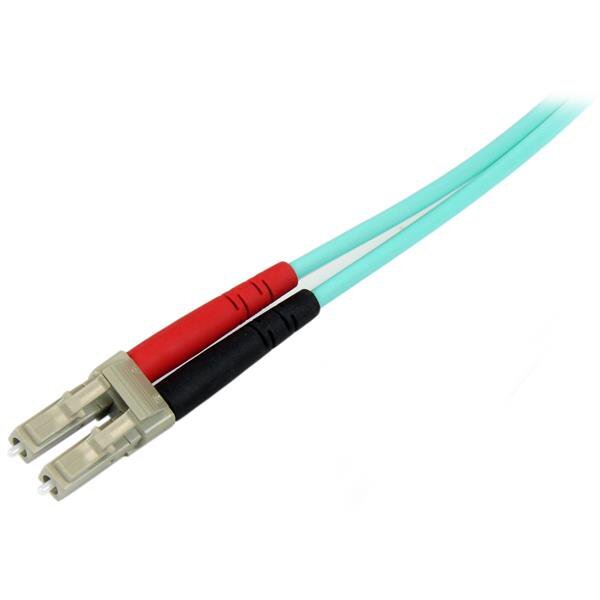

Aqua OM4 Duplex Multimode Fiber Optic Cable - 100 Gb - 50/125 - LSZH - LC/LC - 1 m


This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in 40 and 100 Gigabit networks. The OM4 cable supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources and is backward compatible with your existing 50/125 equipment.

This Aqua OM4 duplex multimode fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. It's ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each OM4 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

The 450FBLCLC1 from StarTech.com is backed by a lifetime warranty.


Applications

  • Use in 40/100 Gigabit Ethernet and Fiber Channel applications
  • Supports VCSEL laser and LED light sources

(450FBLCLC1)

Warranty Information
Warranty Lifetime
Hardware
Fiber Size 50/125
Fire Rating LSZH Rated (Low Smoke Zero Halogen)
Performance
Cable Rating 10Gbps / 40Gbps / 100Gbps
Fiber Classification OM4
Maximum Data Transfer Rate 100Gbps
Type Multi Mode
Wavelength 850nm
Connector(s)
Connector A 1 - Fiber Optic LC Duplex Male
Connector B 1 - Fiber Optic LC Duplex Male
Environmental
Humidity 0~90% RH
Operating Temperature -20¡C to 60¡C (-4¡F to 140¡F)
Storage Temperature -20¡C to 60¡C (-4¡F to 140¡F)
Physical Characteristics
Cable Length 3.3 ft [1 m]
Color Aqua
Product Length 3.3 ft [1 m]
Weight of Product 0.7 oz [20 g]
Packaging Information
Package Height 0.5 in [12 mm]
Package Length 8.7 in [22 cm]
Package Width 7.9 in [20 cm]
Shipping (Package) Weight 1 oz [28 g]
What's in the Box
Included in Package 1 - LC fiber-optic cable
SKU 450FBLCLC1
Barcode # 65030870832
Brand Startech
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 1.000m
Shipping Length 0.150m
