STARTECH.COM | FPWTLTB1

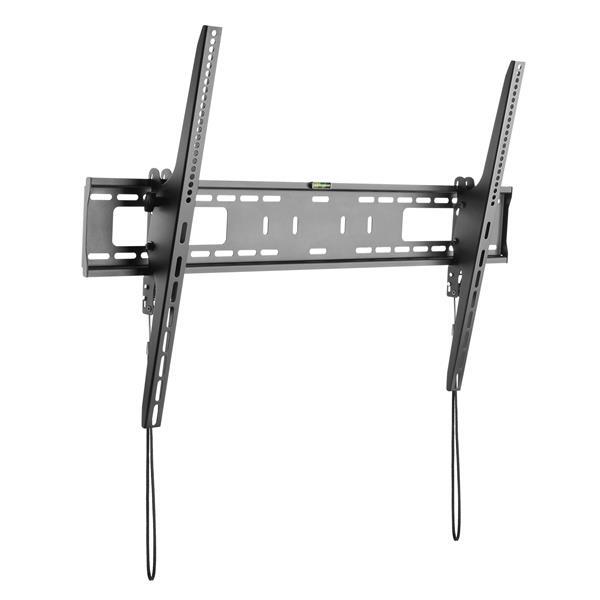

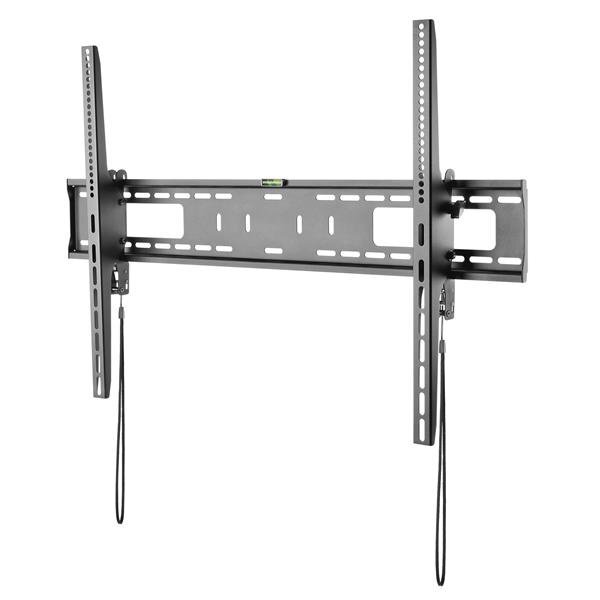

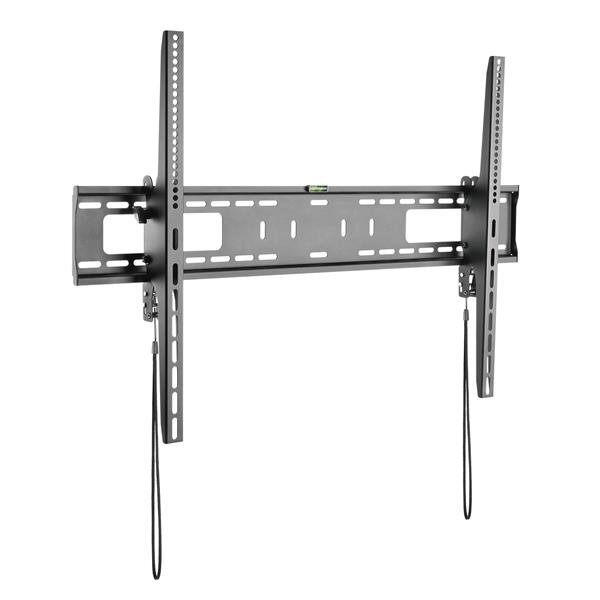

Heavy-Duty Tilting TV Wall Mount

Mount one large 60100in VESA-compatible display weighing up to 75kg and adjust it with +5° upward or -10° downward tilt.

60100in display support

Supports one compatible flat or curved display in the verified 60100in range, up to 75kg.

Mount adjustment

Tool-adjustable display tilt +5°/-10° using the tilt knobs; no swivel or arm extension

Verified VESA support

Supports the listed VESA patterns from the exact FPWTLTB1 specification.

What to know

Confirm the chosen tilt, mounting height and rear-connector clearance before installation. The mount does not swivel or extend. Because this unit can carry a large 75kg display, the supporting wall and fasteners must be suitable and professional installation may be required.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 5-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

Which displays fit the FPWTLTB1?

It supports one flat or curved VESA-compatible display from 60 to 100 inches weighing up to 75kg.

Which VESA patterns does the FPWTLTB1 support?

It supports eighteen patterns from 100×100 to 900×600mm, as listed in the Specifications section.

How far can the FPWTLTB1 tilt?

It tilts up by 5° or down by 10° using the tilt-adjustment knobs.

Does the FPWTLTB1 swivel or extend?

No. It provides tilt adjustment but no swivel or articulating arm extension.

How far does the FPWTLTB1 sit from the wall?

Its low-profile design positions the display approximately 85mm from the wall.

Can the FPWTLTB1 hold a curved display?

Yes, provided the display meets the supported size, weight and VESA requirements.

What is included with the FPWTLTB1?

It includes the wall and vertical brackets, tilt knobs, bubble level, display and wall hardware, spacers and user documentation.

What warranty applies to the FPWTLTB1?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 5-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(FPWTLTB1)

Features and highlights

Single-display wall mount for 60100in flat or curved screens
Maximum display weight 75kg
VESA patterns: 100×100; 100×200; 200×100; 200×200; 200×300; 200×400; 300×200; 300×300; 400×200; 400×300; 400×400; 600×200; 600×300; 600×400; 600×600; 800×400; 800×600; 900×600mm
Tool-adjustable display tilt +5°/-10° using the tilt knobs; no swivel or arm extension
Approximately 85mm from the wall
Cable management: No integrated cable management; open architecture provides cable access
No anti-theft feature
Powder-coated black steel construction
Spring locks provide click-in attachment and release straps assist removal
Included bubble level helps align the mount
5-year StarTech.com manufacturer warranty

Compatibility check: Confirm the display size, weight and exact VESA pattern before installation. Ensure the wall structure and selected fasteners safely support the full installed load, and follow the supplied instructions and local requirements.

Specifications

Product type	Heavy-Duty Tilting TV Wall Mount
Displays supported	1
Supported display size	60100in
Weight capacity	75kg
Supported display types	Flat and curved VESA-compatible displays
VESA patterns	100×100; 100×200; 200×100; 200×200; 200×300; 200×400; 300×200; 300×300; 400×200; 400×300; 400×400; 600×200; 600×300; 600×400; 600×600; 800×400; 800×600; 900×600mm
Adjustment	Tool-adjustable display tilt +5°/-10° using the tilt knobs; no swivel or arm extension
Distance from wall / profile	Approximately 85mm from the wall
Cable management	No integrated cable management; open architecture provides cable access
Anti-theft feature	No anti-theft feature
Colour and material	Powder-coated black steel
Product dimensions	95.4 × 62.5 × 5.0cm (L × W × H)
Product weight	4.5kg
In the box	Wall-mount assembly and display brackets, VESA screws and spacers, wall hardware, alignment or adjustment accessories where applicable, and user documentation
Warranty	5-year StarTech.com manufacturer warranty

SKU	FPWTLTB1
Barcode #	65030880503
Brand	STARTECH
Shipping Weight	3.5900kg
Shipping Width	0.160m
Shipping Height	0.040m
Shipping Length	0.985m
Shipping Cubic	0.006304000m3

Warranty and Australian supply

FPWTLTB1 is supplied by DeviceDeal as an Australian-market product and carries the official 5-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
