STARTECH.COM | FPWARTB1M

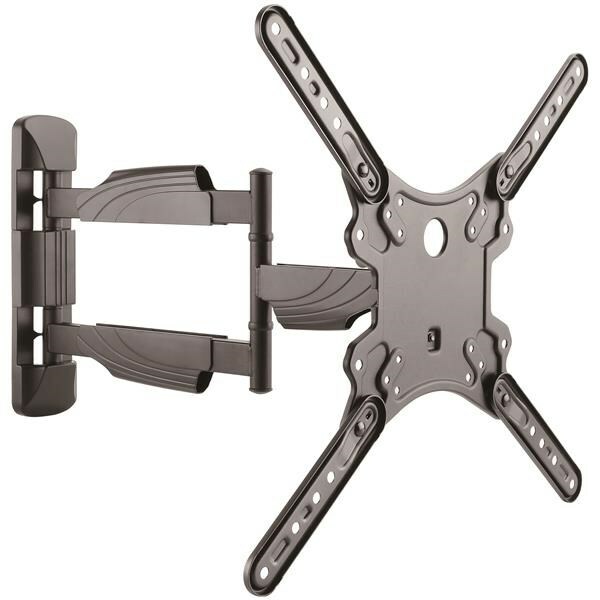

Full-Motion TV Wall Mount for 3255in Displays

Mount one VESA-compatible 3255in flat or curved display weighing up to 35kg, with extending, swivelling, tilting and screen-level adjustment.

3255in, up to 35kg

Supports one VESA-compatible flat or curved display within the verified size and weight limits.

Articulating adjustment

Extends from 49 to 503mm, swivels ±90°, tilts +2°/-12° and provides ±5° screen levelling.

Verified VESA support

Includes mounting hardware for the listed VESA patterns: 100×100; 100×150; 200×100; 200×200; 300×200; 300×300; 400×200; 400×300; 400×400mm.

What to know

Confirm the display size, weight and exact VESA pattern before installation. The wall structure and selected fasteners must safely support the entire installed load. Follow the supplied instructions and local building requirements; professional installation may be appropriate.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 5-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

Which displays fit the FPWARTB1M?

It supports one flat or curved VESA-compatible display within the verified 3255in and 35kg limits.

Which VESA patterns does the FPWARTB1M support?

It supports 100×100; 100×150; 200×100; 200×200; 300×200; 300×300; 400×200; 400×300; 400×400mm.

How can the FPWARTB1M display be adjusted?

It extends from 49 to 503mm, swivels ±90°, tilts +2°/-12° and provides ±5° screen levelling.

How far does the FPWARTB1M sit from the wall?

Approximately 49mm minimum to 503mm maximum from the wall

Can the FPWARTB1M hold a curved display?

Yes, provided the display meets the supported size, weight and VESA requirements.

Does the FPWARTB1M include cable management?

Yes. It has integrated cable management to help keep display cables organised.

What should be checked before installing the FPWARTB1M?

Confirm the display size, weight and VESA pattern, and ensure the wall and fasteners safely support the complete installed load.

What warranty applies to the FPWARTB1M?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 5-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(FPWARTB1M)

Features and highlights

Single-display wall mount for 3255in flat or curved screens
Maximum display weight 35kg
Supported VESA patterns: 100×100; 100×150; 200×100; 200×200; 300×200; 300×300; 400×200; 400×300; 400×400mm
Arm extension from 49 to 503mm; up to 1006mm total lateral range
Display swivel ±90°, tilt +2°/-12° and screen levelling ±5°
Approximately 49mm minimum to 503mm maximum from the wall
±5° screen-level adjustment
Integrated cable management
Powder-coated black steel construction
5-year StarTech.com manufacturer warranty

Compatibility check: Use only with a display within the stated 3255in, 35kg and VESA limits. Confirm the wall structure, fasteners, clearance and local installation requirements before mounting.

Specifications

Product type	Full-motion articulating single-display TV wall mount
Supported display size	3255in
Weight capacity	35kg
Supported display types	Flat and curved VESA-compatible displays
VESA patterns	100×100; 100×150; 200×100; 200×200; 300×200; 300×300; 400×200; 400×300; 400×400mm
Arm extension	49503mm
Total lateral range	Up to 1006mm
Display swivel	+90° / -90°
Display tilt	+2° / -12°
Distance from wall	Approximately 49mm minimum to 503mm maximum from the wall
Screen levelling	±5° screen-level adjustment
Cable management	Integrated
Construction	Powder-coated black steel
Product dimensions	Approximately 61.4 × 40.0 × 40.0cm (L × W × H)
Product weight	Approximately 2.8kg
Environmentally friendly	Yes, as listed in the supplied catalogue
In the box	Wall-mount assembly, display brackets, mounting hardware, tools and instruction manual
Warranty	5-year StarTech.com manufacturer warranty

SKU	FPWARTB1M
Barcode #	65030870375
Brand	Startech
Shipping Weight	3.4000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.390m
Shipping Cubic	0.001950000m3

Warranty and Australian supply

FPWARTB1M is supplied by DeviceDeal as an Australian-market product and carries the official 5-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
