Brateck · LDA30-112

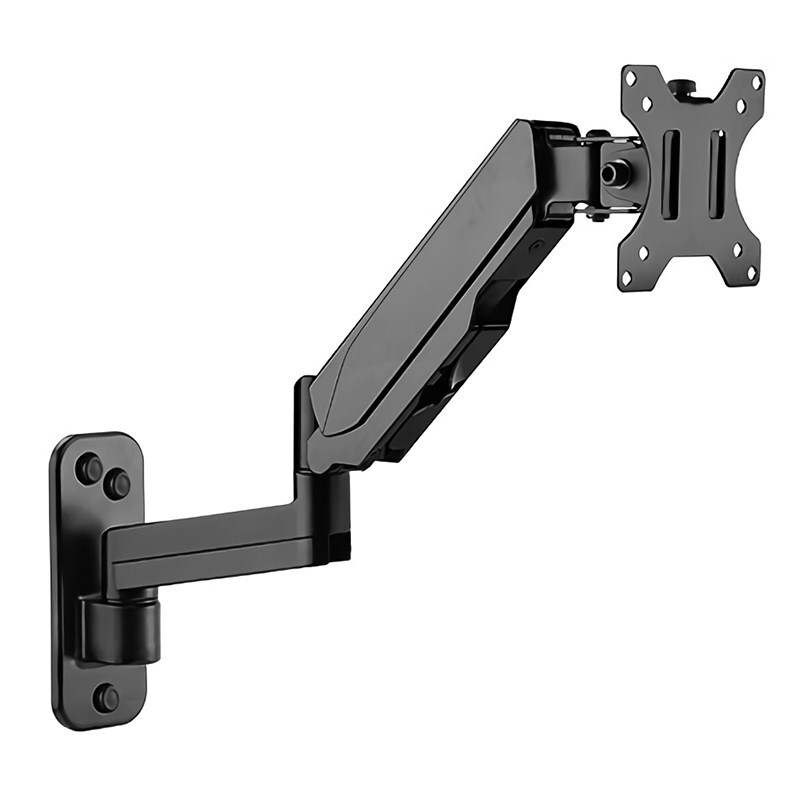

Brateck LDA30-112 Wall-Mounted Gas-Spring Monitor Arm

A wall-mounted gas-spring arm for one 17-inch to 32-inch monitor, including curved screens, with 18 kg capacity, full-motion adjustment and cable management.

1732-inch monitor18 kg capacity422 mm arm extension

Brateck LDA30-112 wall-mounted gas-spring monitor arm

Product highlights

Gas-spring adjustment

The built-in gas spring supports smooth and accurate monitor positioning.

Full-motion viewing

Tilt, swivel and screen rotation allow the monitor angle to be adjusted.

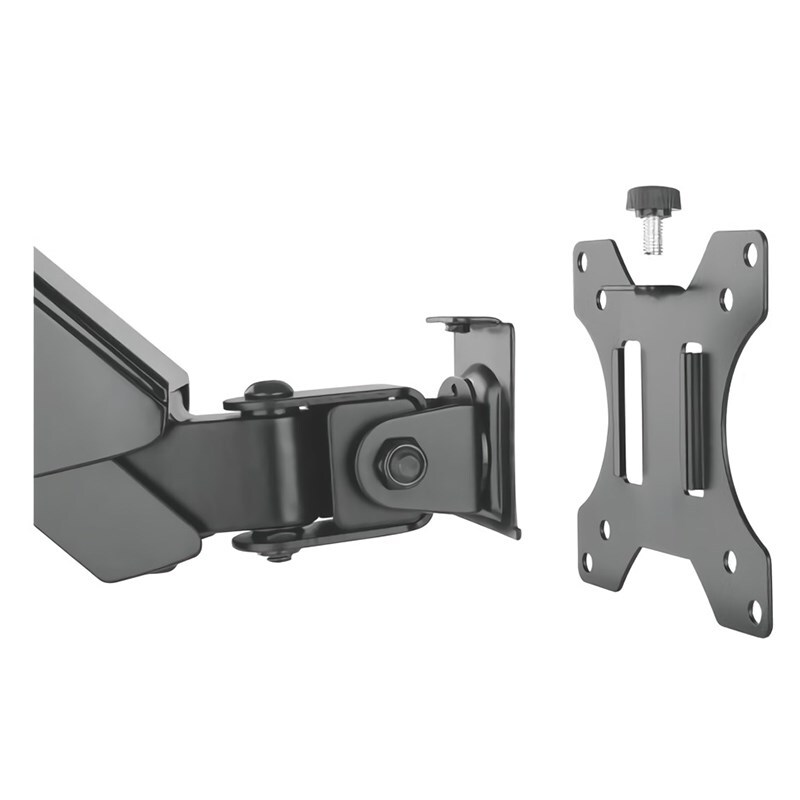

Quick-release VESA plate

The supplied quick-release VESA plate is designed to simplify screen installation.

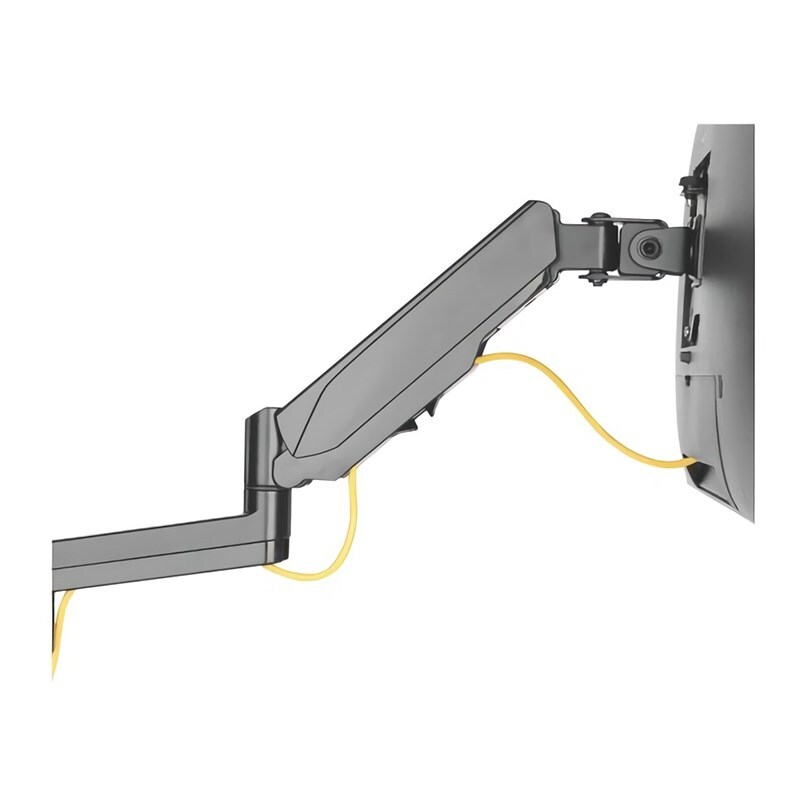

Integrated cable management

Built-in cable management helps organise monitor cables along the arm.

Australian warranty confidence

Purchase from an authorised reseller

DeviceDeal is an authorised reseller of Brateck products. This product is supplied with the stated 12 months limited warranty and manufacturer warranty coverage in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to the manufacturer's terms, eligibility requirements and product assessment.

Frequently asked questions

What monitor sizes fit the Brateck LDA30-112?

It supports one 17-inch to 32-inch monitor, including curved monitors.

What is the monitor weight range?

The supplied per-screen capacity is 18 kg (2.217.6 lb).

Which adjustments are available?

The arm provides tilt, swivel, screen rotation and up to 422 mm full extension.

Does it include cable management?

Yes. Integrated cable management is included.

What warranty is supplied?

DeviceDeal is an authorised Brateck reseller, and the supplied source states a 12 Months Limited Warranty.

(LDA30-112)

Features and highlights

Single-screen support

Fits one 17-inch to 32-inch monitor, including curved monitors.

Per-screen capacity

18 kg (2.217.6 lb).

VESA support

75 × 75 mm and 100 × 100 mm.

Adjustment ranges

Tilt +35° to -35°; swivel +90° to -90°; screen rotation +180° to -180°.

Arm extension

Up to 422 mm (16.6 inches).

Installation features

Wall-mounted design, quick-release VESA plate and integrated cable management.

Technical specifications

Product details

Brand	Brateck
Model	LDA30-112
Product category	Gas-spring monitor arm
Rank	Standard
Materials	Aluminium; plastic; steel
Surface finish	Powder coating
Colour	Matte black; metallic grey

Display support

Screen quantity	1
Screen size	1732 inches
Curved-monitor support	Yes
Weight capacity per screen	18 kg (2.217.6 lb)
VESA compatibility	75 × 75 mm; 100 × 100 mm

Adjustment

Tilt range	+35° to -35°
Swivel range	+90° to -90°
Screen rotation	+180° to -180°
Full arm extension	422 mm (16.6 inches)
Profile	99521 mm (3.920.5 inches)

Physical and installation

Dimensions	467 × 114 × 387 mm (18.4 × 4.5 × 15.2 inches)

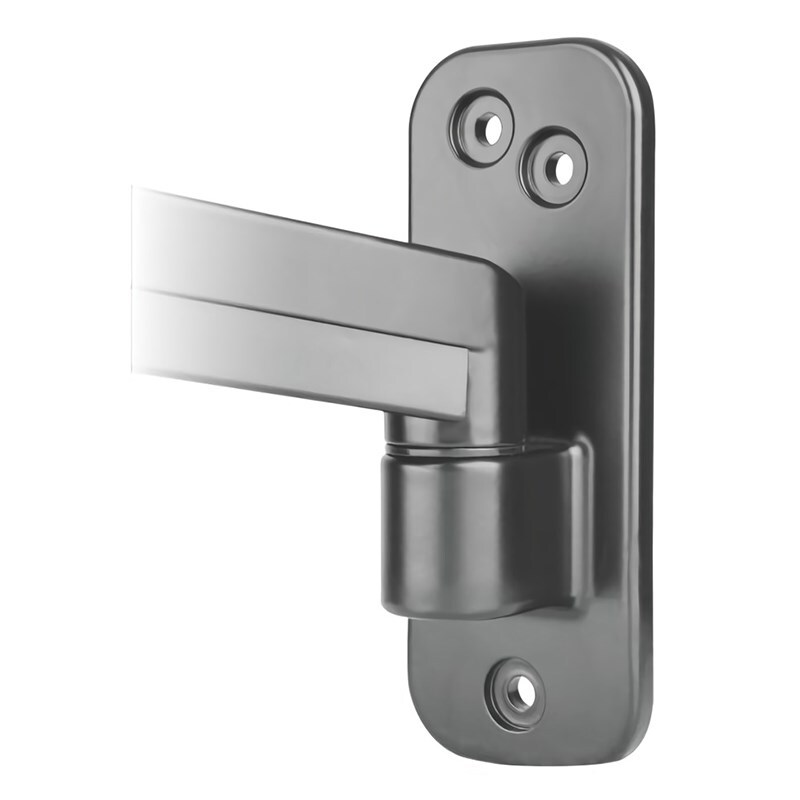

Installation	Wall mounted
Quick-release VESA plate	Yes
Cable management	Yes

Package and other information

Accessory kit package	Normal / ziplock polybag; compartment polybag
Instruction manual included	Yes
Power plug included	No
Anti-theft	No
Magnetic	No
Lithium battery	No

Warranty

Warranty	12 Months Limited Warranty

SKU	LDA30-112
Barcode #	6956745159487
Brand	BRATECK
Shipping Weight	8.0000kg
Shipping Width	0.114m
Shipping Height	0.387m
Shipping Length	0.467m
Shipping Cubic	0.020603000m3

Warranty information

12 Months Limited Warranty

DeviceDeal is an authorised reseller of Brateck products. Brateck LDA30-112 Wall-Mounted Gas-Spring Monitor Arm is supplied with the stated 12 months limited warranty and manufacturer warranty coverage in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims remain subject to the manufacturer's warranty terms, eligibility requirements and product assessment.
