STARTECH.COM | H2M1AS2-MONITOR-ARM

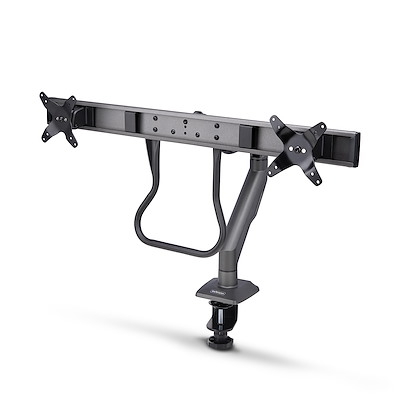

Dual Monitor Arm with Crossbar

Position two compatible 1727in displays on a mechanical-spring arm with an alignment crossbar, synchronised movement handle and integrated cable management.

Dual 1727in display support

Carries two compatible VESA displays on a sliding crossbar designed to keep both screens aligned.

Synchronised movement

A built-in handle moves the dual-screen assembly together, reducing the need to realign each monitor after repositioning.

Mechanical-spring adjustment

Provides a 202529mm height range and up to 574mm arm extension with tool-free one-touch positioning.

Full-motion viewing

Supports +65°/-15° tilt, ±15° display swivel, ±180° arm pivot and 360° display rotation.

What to know before ordering

Position two compatible 1727in displays on a mechanical-spring arm with an alignment crossbar, synchronised movement handle and integrated cable management. Check the exact host, display, mounting, cable, power and compatibility requirements below before purchase.

Compatibility checklist

Confirm both displays are 1727in and use 75×75 or 100×100mm VESA mounting.
Because StarTech currently gives conflicting total versus per-display load wording, confirm the permitted weight allocation directly with StarTech before mounting heavy screens.
The technical table lists no curved or UltraWide display support; check panel shape, dimensions and clearance as well as nominal size.

Common applications

Build an aligned dual-screen productivity workstation
Move two monitors together at a shared or hot-desk workstation
Position slim-bezel displays side by side while organising cables

DeviceDeal purchase confidence

Supplied by DeviceDeal for Australian customers with local purchasing support, a tax invoice and the verified 10-year StarTech.com manufacturer warranty.

Frequently asked questions

How many displays does H2M1AS2-MONITOR-ARM support?

It supports two compatible displays on a single crossbar assembly.

What display sizes are supported?

The current technical specification lists 1727in displays.

What is the weight capacity?

The technical table lists 15kg per display, while StarTech marketing also describes 15kg as the total capacity. Confirm the permitted load allocation with StarTech before installation.

Which VESA patterns fit?

Each display must use a 75×75 or 100×100mm VESA pattern.

Can the two displays move together?

Yes. The built-in handle lets the crossbar assembly move both monitors together, while the VESA mounts can slide for alignment.

Does it support curved or UltraWide displays?

The current technical table lists curved-display and UltraWide support as No.

What desk thickness is supported?

The listed desk-clamp surface thickness is 2060mm. Confirm the desk is structurally suitable.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal carries a 10-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(H2M1AS2-MONITOR-ARM)

Features and highlights

Crossbar desk mount for two 1727in displays
VESA patterns: 75×75 and 100×100mm
Current technical table lists 15kg weight capacity per display; manufacturer marketing also describes 15kg as the total capacity
Mechanical-spring assisted, articulating arm
Height range: 202529mm; arm extension: 160574mm
Tilt: +65°/-15°; display swivel: ±15°; arm pivot: ±180°; rotation: 360°
Sliding VESA mounts and a grab handle for synchronised positioning
Desk and grommet mounting listed; desk-clamp thickness 2060mm
Integrated cable management; tools included
TAA compliant
10-year StarTech.com manufacturer warranty

Compatibility check: Confirm both displays are 1727in and use 75×75 or 100×100mm VESA mounting.

Specifications

Product type	Mechanical-spring dual-monitor desk arm with crossbar
Displays supported	2
Display size	1727in per display
Weight capacity	Official technical table: 15kg per display; official marketing also states 15kg totalconfirm the permitted load allocation with StarTech before installation
Curved display support	No
UltraWide display support	No
VESA patterns	75×75 and 100×100mm
Mounting options	Desk and grommet clamp
Desk-clamp surface thickness	2060mm
Height adjustment	202529mm
Arm extension	160574mm
Display tilt	+65° / -15°
Display swivel	±15°
Arm swivel / pivot	+180° / -180°
Display rotation	360°
Cable management	Yes
Tools included	Yes
Colour and material	Black; aluminium, steel and plastic
Product dimensions	800 × 350 × 529mm (L × W × H)
Product weight	6.0kg
Package contents	Monitor arm; EVA base cushion; two VESA mounts; eight VESA screws; cable clip; M3 and M6 hex keys; crossbar and two end caps; four M6×12 screws; four M6 cap nuts; grab handle; quick-start guide
TAA compliant	Yes
Warranty	10 years

SKU	H2M1AS2-MONITOR-ARM
Barcode #	65030906340
Brand	Startech
Shipping Weight	8.2000kg
Shipping Width	0.018m
Shipping Height	0.080m
Shipping Length	0.035m

Warranty and Australian supply

H2M1AS2-MONITOR-ARM is the Australian version supplied by DeviceDeal and carries the official 10-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
