Ergotron 45-594-216

Ergotron 45-594-216 StyleView Combo Wall Workstation

A white StyleView healthcare wall workstation for a monitor up to 24 inches, with worksurface, pull-out keyboard tray, CPU support and a 14.51 kg load capacity.

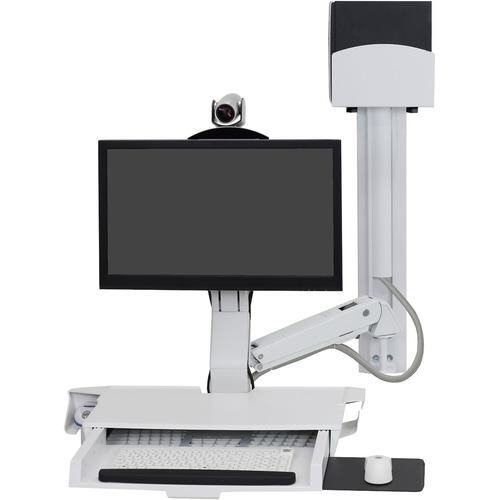

Ergotron 45-594-216 StyleView white combo wall workstation

Maximum screen size24 inches

Maximum load14.51 kg

Workstation formatWall-mounted sit-stand combo

ColourWhite

Product overview

The StyleView Combo System combines a monitor, small CPU holder, worksurface, keyboard tray and accessory support on one height-adjustable wall arm. It is designed to help caregivers document while sitting or standing and share information with patients or colleagues using the monitor's pan-pivot movement.

Important product details

The system supports the supplied device list: CPU, keyboard, LCD display, monitor, barcode scanner, mouse and wrist rest.
The narrative states that the monitor pan-pivot moves up to 180 degrees, while the specification table separately lists 360-degree panning.

Australian manufacturer warranty

DeviceDeal is an authorised reseller. This Australian-version Ergotron product is covered by the applicable Ergotron manufacturer warranty in Australia.

Frequently asked questions

What screen size does the Ergotron 45-594-216 support?

The supplied maximum screen size is 61 cm, or 24 inches.

What is the maximum load capacity?

The supplied maximum load capacity is 14.51 kg.

Which workstation components are supported?

The supplied list includes a monitor, LCD display, CPU, keyboard, mouse, barcode scanner and wrist rest.

Can caregivers work sitting or standing?

Yes. The supplied description identifies a height-adjustable sit-stand arm.

Which monitor movements are listed?

The narrative states up to 180-degree monitor pan-pivot movement, while the specification table also lists 360-degree panning, 30-degree tilt and 90-degree rotation.

(45-594-216)

Features and highlights

Ergotron 45-594-216 StyleView Combo Wall Workstation

A healthcare-focused sit-stand wall workstation that keeps the display, input devices and work surface together.

Sit-stand workstationThe height-adjustable arm supports seated or standing workflows.

Integrated worksurfaceA sturdy worksurface is included in the combo format.

Pull-out keyboard trayProvides a keyboard tray with an integrated wrist rest.

Monitor sharingThe supplied pan-pivot description supports screen sharing with patients or colleagues.

Antimicrobial featureAntimicrobial construction is listed among the supplied features.

Cable managementIntegrated cable management helps organise installed equipment.

Key highlights

StyleView product line
Monitor support up to 61 cm (24 inches)
Aluminium and plastic construction
Small CPU-holder configuration
Australian-version product supplied by authorised reseller DeviceDeal with Ergotron manufacturer warranty in Australia

Specifications Ergotron 45-594-216 StyleView Combo Wall Workstation

SKU: 45-594-216

General information

Brand	Ergotron
Manufacturer	Ergotron, Inc
Manufacturer part number	45-594-216
Product line	StyleView
Product name	SV Combo System with Worksurface & Pan, Small CPU Holder (White)
Product type	Wall Mount

Display and device support

Maximum screen size supported	61 cm (24 in)
Maximum load capacity	14.51 kg
Devices supported	CPU; Keyboard; LCD Display; Monitor; Bar Code Scanner; Mouse; Wrist Rest
VESA compatible	Yes

Movement and features

Features	360° Panning; 30° Tilt; Keyboard Tray; Antimicrobial; Durable; Ergonomic; Integrated Wrist Rest; Cable Management; Pivot; Screen Level Adjustment; 90° Rotation
Narrative monitor pan-pivot movement	Up to 180°

Physical characteristics

Approximate weight	18.60 kg
Product colour	White
Product material	Aluminium; Plastic

Source review note: The supplied narrative and specification table use different movement descriptions: the monitor pan-pivot is stated as up to 180°, while 360° panning is also listed. Both values are preserved with their supplied scope.

SKU	45-594-216
Barcode #	698833077599
Brand	ERGOTRON
Shipping Weight	24.6000kg
Shipping Width	0.670m
Shipping Height	0.230m
Shipping Length	0.960m

Ergotron manufacturer warranty

Australian manufacturer warranty

DeviceDeal is an authorised reseller, and this Australian-version Ergotron 45-594-216 is covered by the applicable Ergotron manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to Ergotron warranty terms, eligibility requirements and product assessment.
