TP-Link Archer AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter - Interface: PCI Express x1/x4/x8 - Ports: USB 2.0 - Supports Bluetooth 5.0/4.2/4.0 - Intel WiFi 6 Chipset - Wireless Standards: iEEE 802.11ax/ac/n/a 5 GHz & IEEE 802.11ax/n/g/b 2.4 GHz - 3 Years Limited Warranty
(ARCHER-TX3000E)
| HARDWARE FEATURES |
| Dimensions |
3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm) |
| Antenna Type |
Two High-Gain Dual Band Antennas
Magnetized Antenna Base |
| Chipset |
Intel Wi-Fi 6 Chipset |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0 |
| WLAN Signal Rate |
5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity |
5 GHz :
11ax HT160：-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160：-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm |
| WLAN Transmit Power |
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP) |
| WLAN Modes |
Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Bluetooth Profiles |
Archer TX3000E support the native BT profiles implemented in Windows 10.
For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |

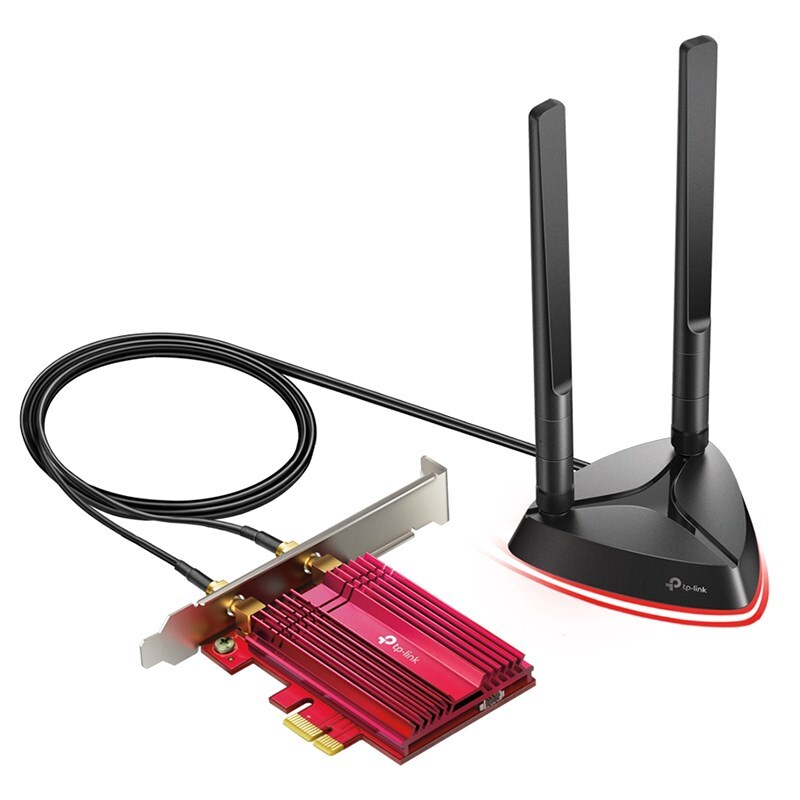

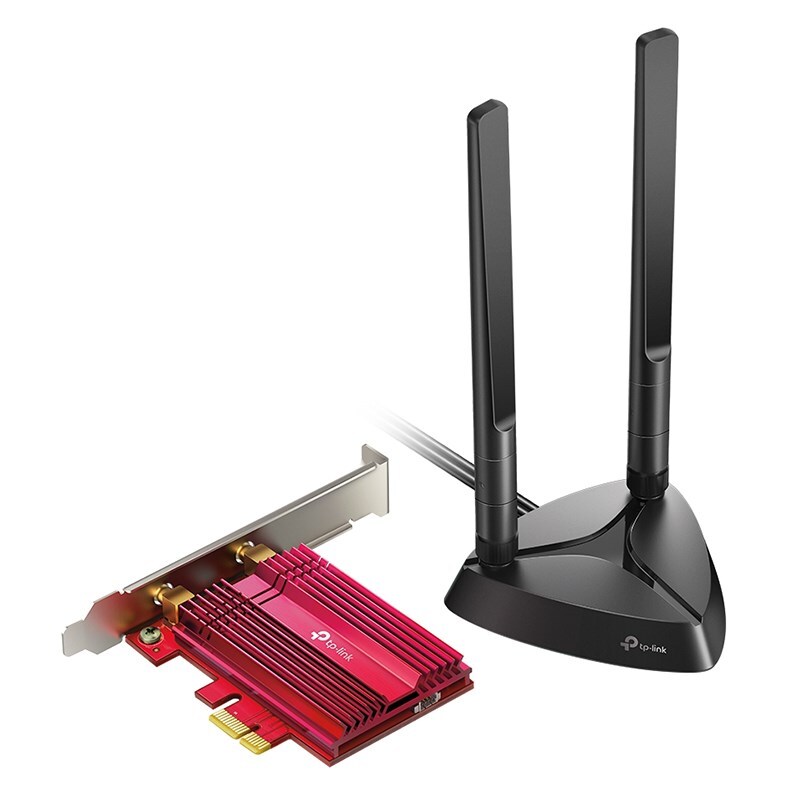

Archer TX3000E
Magnetized Antenna Base with 1m RF Cable
Two 5 dBi High Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD |
| System Requirements |
Windows 10(64-bit) only |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| SKU |
ARCHER-TX3000E |
| Barcode # |
6935364088897 |
| Brand |
TP-LINK |
| Shipping Weight |
0.2000kg |
Manufacturer Warranty: 3 Year Manufacturer Warranty
