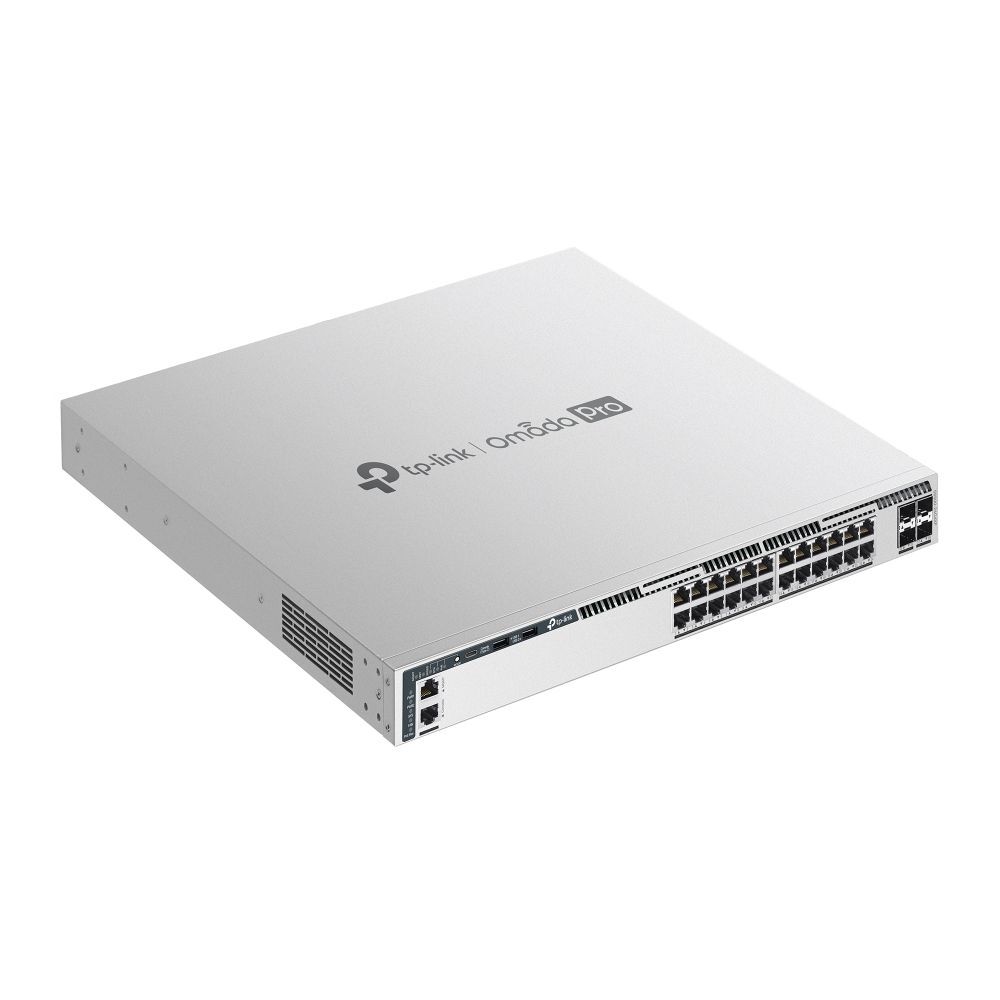

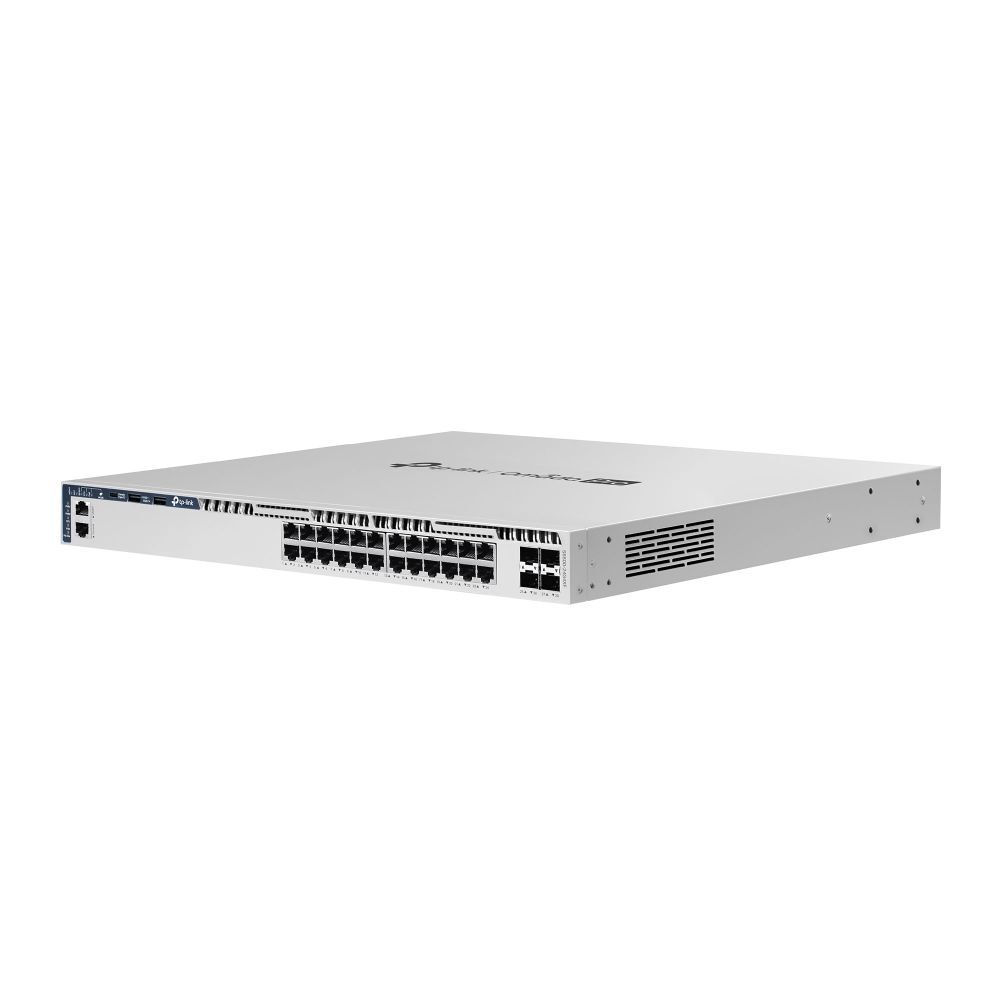

(S6500-24G4XF)
HARDWARE FEATURES
Interface 24× 10/100/1000 Mbps RJ45 Ports
4× 1/10Gbps SFP+ Slots*
2× USB 2.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port

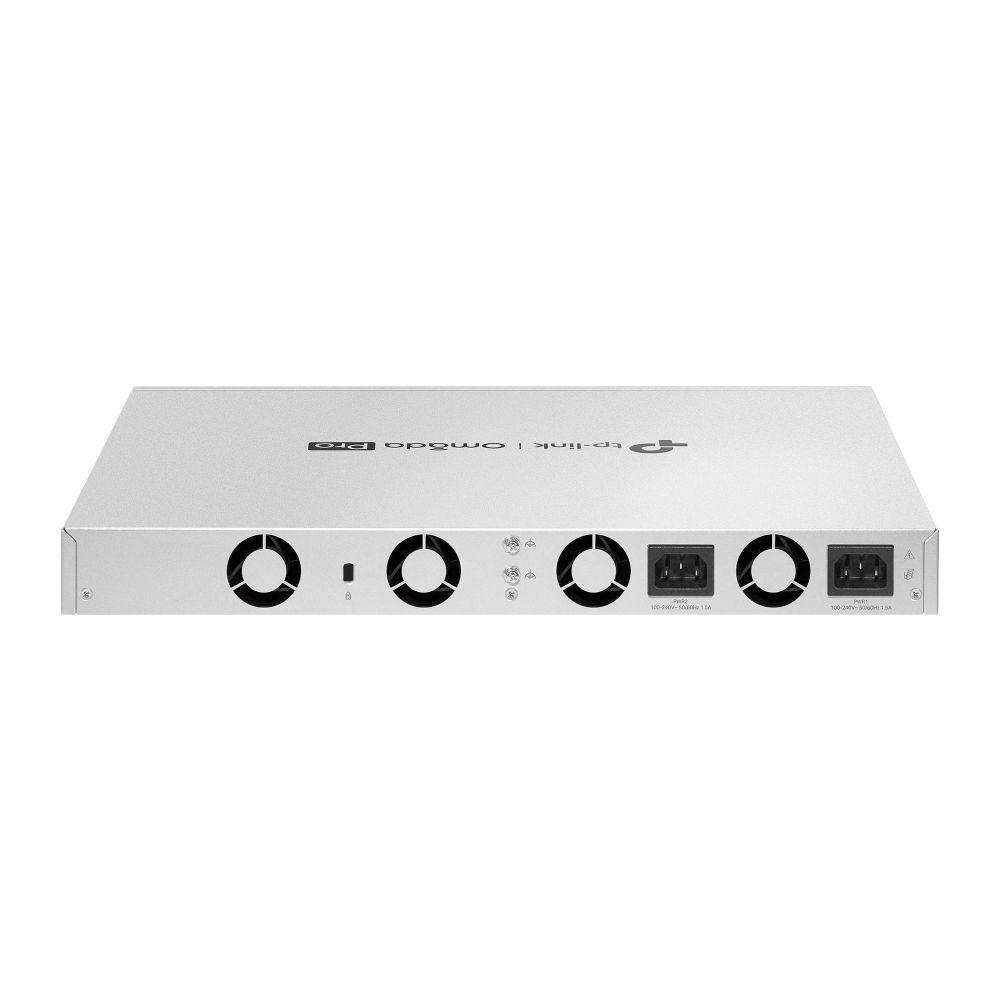

Fan Quantity Four Internal Fixed Fans
Power Supply Two Internal Fixed Power Supply Modules (100240 VAC, 50/60 Hz)
Dimensions ( W x D x H ) 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting Rackmountable
Max Power Consumption 28.4 W (220 V/50 Hz)
Max Heat Dissipation 96.91 BTU/hr (220 V/50 Hz)
PERFORMANCE
Switching Capacity 128 Gbps per Unit
Stacking Stacking Number: 12 (standalone mode)
Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)**
Stack Bandwidth: Up to 80 Gbps (4 stacking ports)
Packet Forwarding Rate 95.2 Mpps
MAC Address Table 32 K
Packet Buffer Memory 3 MB
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
Bandwidth Control
- Rate Limit
- Storm Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
WRED profile: 16
L3 Features L3 Interface: 256 (IPv4,IPv6)
Static Route: 1,024 IPv4, 512 IPv6
Host Route Table: Max 6,100 entries
IPv4 Network Router entries: 10,240 (shared with IPv6 Network Router entries)
IPv6 Network Router entries: 5,120 (shared with IPv4 Network Router entries)
ECMP: 256 entries, max 32 ECMP Nexthops per Destination
Static ARP: 512 static entries
Dynamic ARP: 7,680 dynamic entries
ND: 7680
DHCP Server: Max 64 IP pool, Max 8,000 IP entries
DHCPv4/v6 Relay
VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance
OSPFv2
- OSPF Instance: 16
- Network Entries: 256 entries
- Area Entries for Stub or NSSA: 16 per instance
- Area Range Entries: 16 per instance
- Virtual-link Entries: 16 per instance
OSPFv3
- Area Entries for Stub or NSSA: 16 per instance
- Area Range Entries: 16 per instance
RIPv1/v2
- Network Entries: 256
- Redistribute Entries: 20
RIPng
IS-IS
- IS-IS Interfaces: 128
- IS-IS Area Numbers: 3
- Max Redistribute Configs: 10
- IS-IS IPV6
- IS-IS BFD
BGP: Max 20 redistribute configs
PIM-DM/PIM-SM/PIM-SSM
- IP Multicast Route Entries: 1K
- PIM Neighbors: 256
- Max PIM Interfaces: 128
IGMP: Version v1/v2/v3, Max 2,048 multicast groups
BFD: 16 template numbers, 8 session numbers
PBR
uRPF
L2 and L2+ Features Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
ERPS
Mirroring
RSPAN
MAC Address Table
Multicast
- IGMP Snooping
- MLD Snooping
- Multicast VLAN Registration (MVR)
- Max Multicast Table: 4K (IPv4, IPv6)
- Fast Leave
- Static Multicast Groups
- Multicast Filtering
- IGMP Snooping Authentication
Advanced Features Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow
VLAN Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
Voice VLAN
Private VLAN
Security Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
DHCP Filter
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control
MACSec (-128, -256)
Secure boot
RADSEC
Virtualization IP Tunnel
- IPv6 over IPv4
- IPv6 over IPv4 GRE
- IPv4 over IPv4 GRE
- Tunnel entries: 100
MANAGEMENT
Omada App Yes, through Omada Pro Controller
Centralized Management Omada Pro Cloud-Based Controller
Omada Pro Hardware Controller
Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
IEEE 802.3az Energy Efficient Ethernet (EEE)
Configuration Rollback
Hot Patching
NETCONF
OTHERS
Package Contents S6500-24G4XF Switch
2× Power Cords
RJ45 Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
