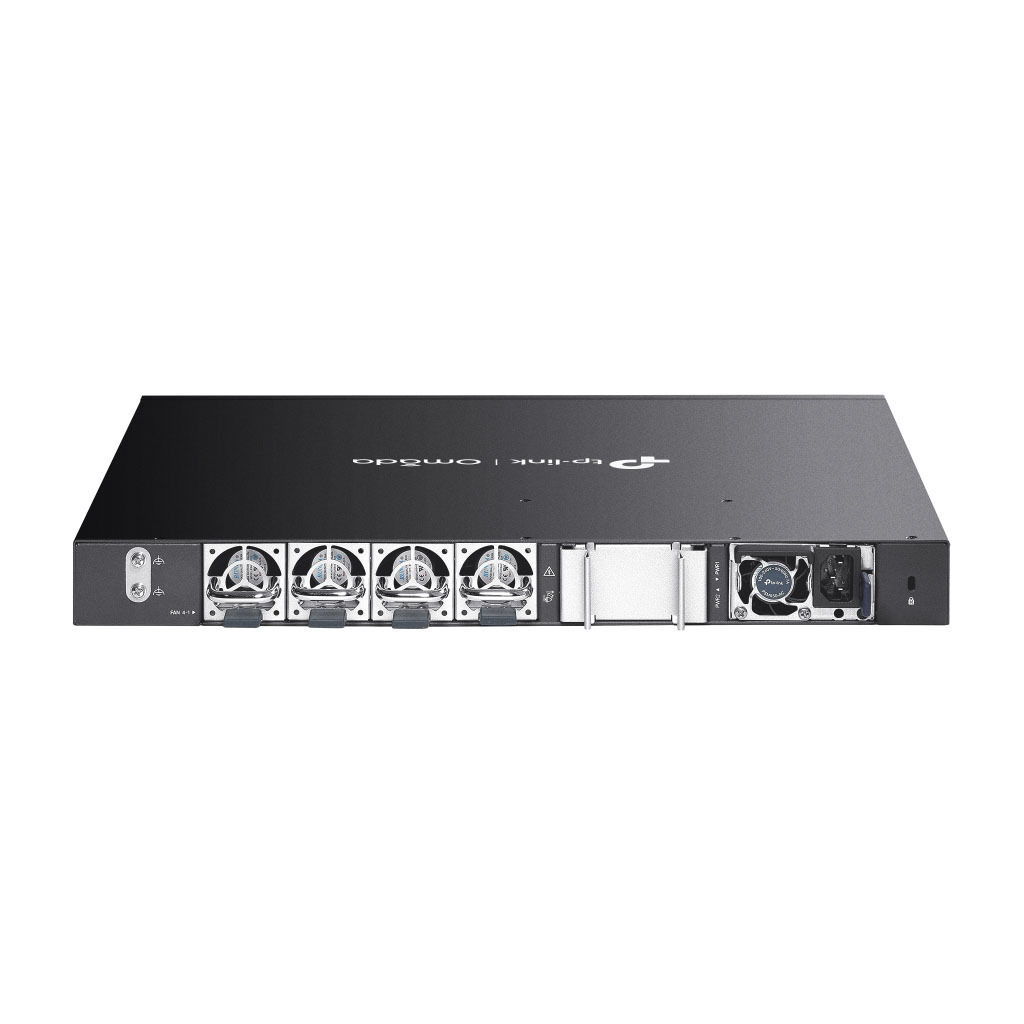

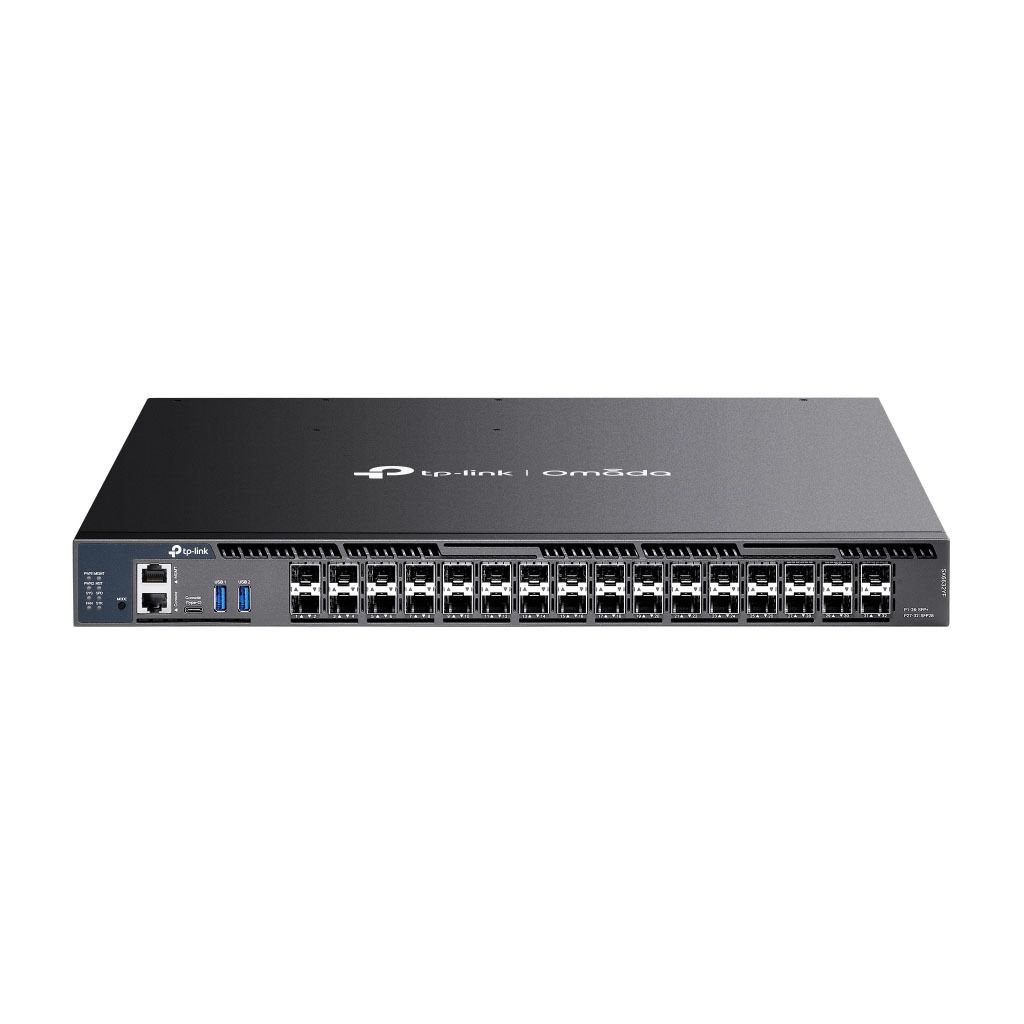

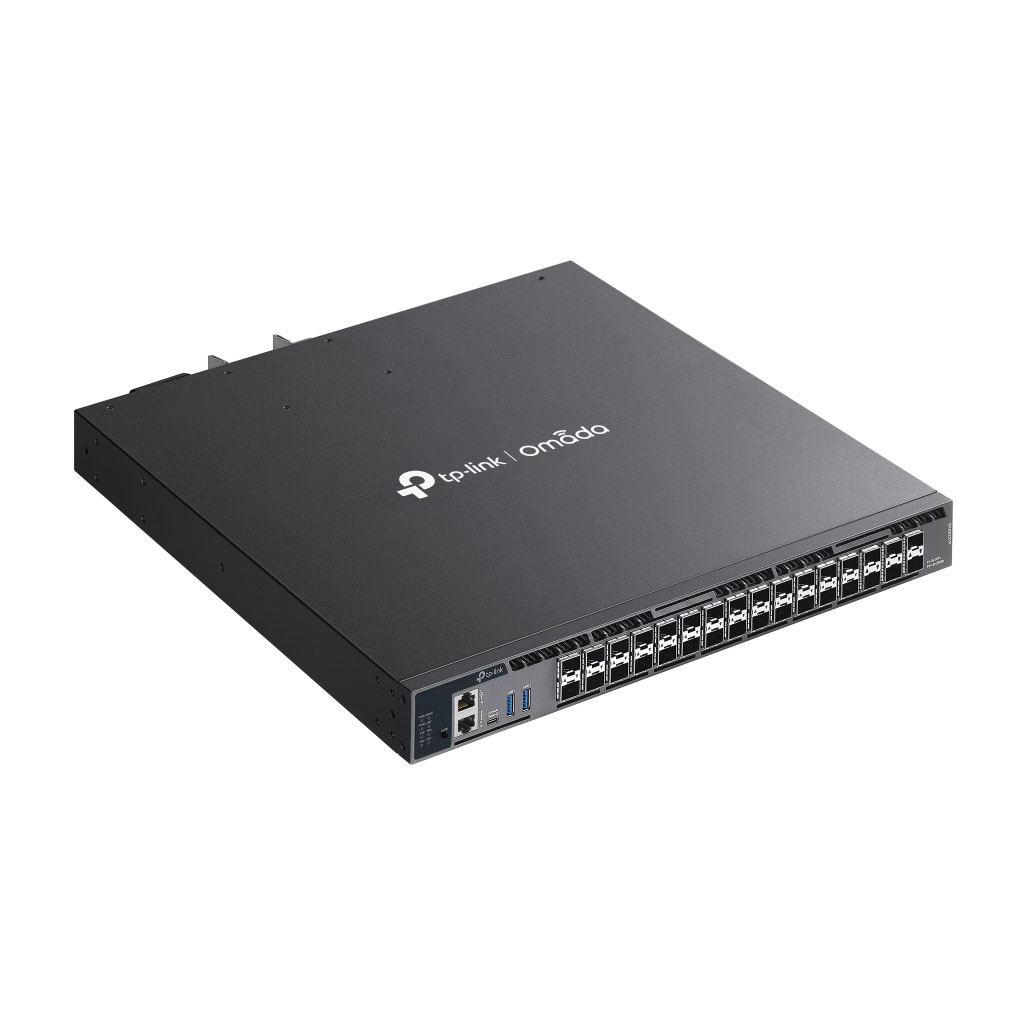

TP-Link SX6632YF Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots - Interface: 6x 10/25G SFP28 Slots, 26x 10G SFP+ Slots, 2x USB 3.0 Ports, 1x RJ45 Console Port, 1x USB Type C Console Port, 1x RJ45 Management Port - Switching Capacity: 820 Gbps - Packet Forwarding Rate: 610.1 Mpps - SX6632YF

· 26x 10G SFP+ slots and 6x 25G SFP28 slots

· 820 Gbps switching capacity

· Physical Stacking for built-in redundancy and performance

· L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay

· Security Strategies: ACL, Port Security, DoS Defend, 802.1X

(SX6632YF)

HARDWARE FEATURES
Interface	• 6× 10/25G SFP28 Slots • 26× 10G SFP+ Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type C Console Port • 1× RJ45 Management Port
Fan Quantity	Four field-replaceable and hot-swappable fans
Physical Security Lock	√
Power Supply	Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz) *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
Power Consumption	86.7 W (110 V/60 Hz)
Dimensions ( W x D x H )	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting	Rack Mountable
Max Heat Dissipation	295.85 BTU/hr (110 V/60 Hz)

PERFORMANCE
Switching Capacity	820 Gbps
Stacking	• Stacking Number: 8 • Stacking Port: 25G SFP28 • Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate	610.1 Mpps
MAC Address Table	128 K
Packet Buffer Memory	8 MB
Jumbo Frame	9 KB

SOFTWARE FEATURES
Quality of Service	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Strom Control • Voice VLAN • User-Defined OUI
L3 Features	• Routing IP Interfaces - Static Routing - Host Route Table - RIP v1/v2 - RIPng - OSPFv2/v3 - VRRP - ECMP - ARP Proxy • DHCP - DHCP Server - DHCP Relay - DHCPv6 Relay - DHCP Snooping - DHCPv6 Snooping • Multicast - Multicast Table - IGMP v1/v2/v3 - Static Multicast Routing
L2 and L2+ Features	• Switching - Port Mirroring（SPAN） - RSPAN - Loopback Detection - Traffic Monitor • Trunking - Static LAG - LACP 802.3ad • Mac Address - MAC Address Table - Static MAC - Dynamic MAC Address - Filtering MAC Address - MAC Flapping • STP - STP 802.1d - RSTP 802.1w - MSTP 802.1s - Loop/Root/TC Protect - BPDU Protect/Filtering • ERPS • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering
Advanced Features	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
VLAN	• IEEE 802.1q Tag VLAN • MAC VLAN • Protocol VLAN • VLAN VPN(QinQ) • Private VLAN • GARP/GVRP • Voice VLAN • Multicast VLAN • Management VLAN
Security	• Access Security - Port/MAC/IP-based Access Control - SSL - SSH • Port Security • Port Isolation • CPU-Deffend • Time Range - Time Range Defination - Periodic Time Range - Absolute Time Range - Time Holiday • ACL - Entries - L2/L3/L4 ACL - ACL Action - ACL over VLAN - ACL over Port • IP-MAC Binding - IP+MAC+PORT+VID Binding - Manual Binding - ARP Scanning - DHCP Filter - DHCPv6 Filter - DHCP Option 82 • ARP Inspection (Dynamic ARP Inspection) • IP Source Guard • IPv6 Source Guard • ND Neighbor Discovery/ ND Snooping/ ND Filtering • DoS Defend • Authentication, Authorization & Accounting (AAA) - 802.1X Port Authentication - RADIUS Authentication - RADIUS Accounting - TACACS+ Authentication

MANAGEMENT
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log

OTHERS
Package Contents	• SX6632YF Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

SKU	SX6632YF
Brand	TP-LINK

Manufacturer Warranty: 5 Years Limited Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

TP-Link SX6632YF Omada 26-Port 10G Stackable L3 Managed Aggregation Switch

Name: TP-Link SX6632YF Omada 26-Port 10G Stackable L3 Managed Aggregation Switch
Brand: TP-LINK
SKU: SX6632YF
Price: 5999 AUD
Availability: OutOfStock
