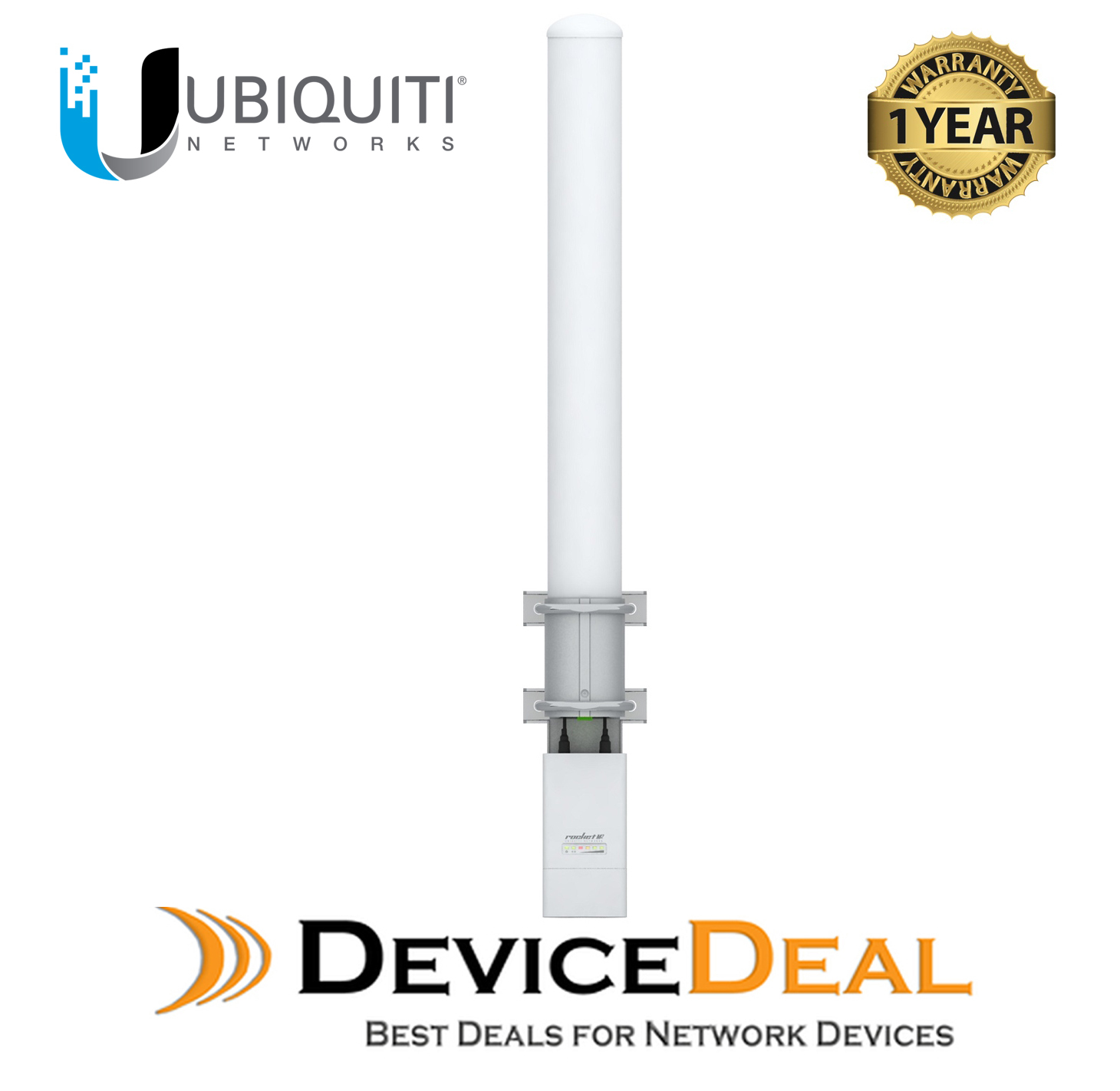

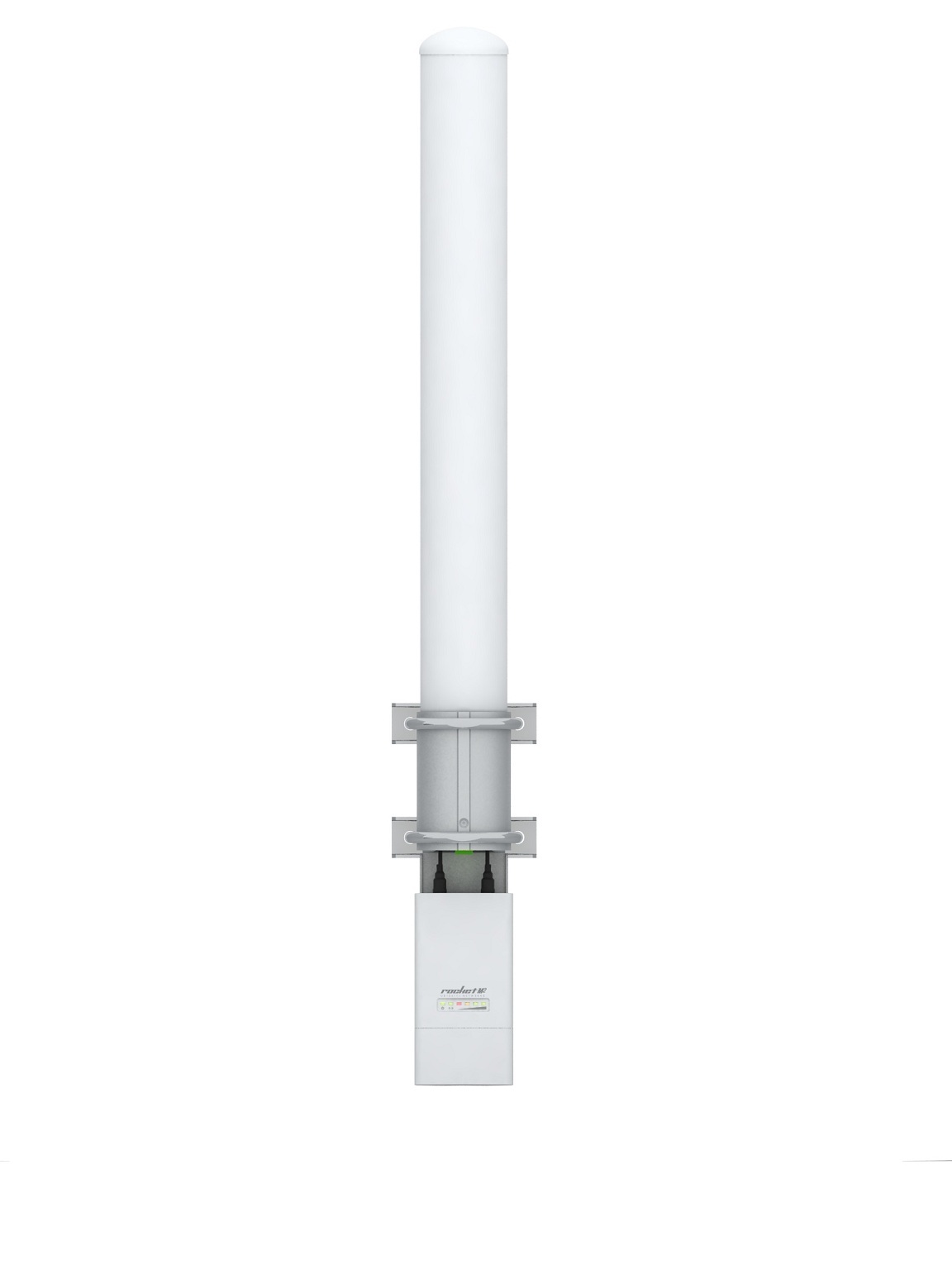

Ubiquiti AMO-2G13 airMAX 2.4 GHz 13 dBi Omni Antenna
A 2.4 GHz airMAX 2x2 dual-polarity omnidirectional antenna with 13 dBi gain, 360 deg horizontal coverage and included mounting hardware for compatible Rocket M radios.
High-gain omnidirectional coverage for 2.4 GHz networks
The AMO-2G13 combines 360-degree horizontal coverage with higher 13 dBi gain and a narrow vertical beam for compatible Rocket M point-to-multipoint deployments.
360 deg horizontal coverage
The omnidirectional pattern provides full horizontal coverage.
13 dBi gain
The antenna provides 13 dBi gain.
2.35-2.55 GHz operation
The frequency range is 2.35 to 2.55 GHz.
7 deg elevation beamwidth
The elevation beamwidth is 7 degrees.
Dual-linear polarisation
Dual-linear polarisation supports 2x2 radio operation.
25 dB cross-polarisation isolation
Minimum cross-polarisation isolation is 25 dB.
Rocket M mounting
A Rocket M bracket and universal pole mount are included.
Weatherproof RF jumpers
Weatherproof RF jumper cables are included.
i
Radio compatibility
This is a passive antenna. A compatible Rocket M radio is required.
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AMO-2G13 is backed by a 1-year Ubiquiti manufacturer warranty, with support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti AMO-2G13.
What is the Ubiquiti AMO-2G13?
It is a high-gain 2.4 GHz airMAX 2x2 omnidirectional antenna for compatible point-to-multipoint networks.
Does it provide 360-degree coverage?
Yes. The antenna provides 360-degree horizontal coverage.
What is the antenna gain?
The antenna gain is 13 dBi.
Which frequency range is supported?
It operates from 2.35 to 2.55 GHz.
What is the elevation beamwidth?
The elevation beamwidth is 7 degrees.
What mounting hardware is included?
A universal pole mount, Rocket M bracket and weatherproof RF jumper cables are included.
Is a radio included?
This is a passive antenna; a compatible Rocket M radio is required.
What warranty does the Ubiquiti AMO-2G13 include?
The Ubiquiti AMO-2G13 is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AMO-2G13)
Features and highlights
A 2.4 GHz airMAX 2x2 dual-polarity omnidirectional antenna with 13 dBi gain, 360 deg horizontal coverage and included mounting hardware for compatible Rocket M radios.
✓
360 deg horizontal coverage
The omnidirectional pattern provides full horizontal coverage.
✓
13 dBi gain
The antenna provides 13 dBi gain.
✓
2.35-2.55 GHz operation
The frequency range is 2.35 to 2.55 GHz.
✓
7 deg elevation beamwidth
The elevation beamwidth is 7 degrees.
✓
Dual-linear polarisation
Dual-linear polarisation supports 2x2 radio operation.
✓
25 dB cross-polarisation isolation
Minimum cross-polarisation isolation is 25 dB.
✓
Rocket M mounting
A Rocket M bracket and universal pole mount are included.
✓
Weatherproof RF jumpers
Weatherproof RF jumper cables are included.
Key product facts
360 deg : Horizontal coverage
13 dBi: Antenna gain
7 deg : Elevation beamwidth
2.4 kg: Product weight
Radio compatibility: This is a passive antenna. A compatible Rocket M radio is required.
Technical specifications
Product specifications for Ubiquiti model AMO-2G13.
Product details
Brand
Ubiquiti
Model / SKU
AMO-2G13
Product type
2.4 GHz 2x2 omnidirectional antenna
Horizontal coverage
360 deg
RF performance
Frequency range
2.35-2.55 GHz
Gain
13 dBi
Elevation beamwidth
7 deg
Polarisation
Dual-linear
Minimum cross-polarisation isolation
25 dB
Connections and physical
RF connectors
2 x RP-SMA
Dimensions
1390 x 122 x 105 mm
Weight
2.4 kg
Included mounting
Pole mount
Universal pole mount
Radio bracket
Rocket M bracket
RF cables
Weatherproof RF jumper cables
Warranty
Manufacturer warranty
1 year Ubiquiti manufacturer warranty
Authorised reseller
DeviceDeal
SKU
AMO-2G13
Barcode #
810354020964
Brand
Ubiquiti
Shipping Weight
4.0500kg
Shipping Width
0.158m
Shipping Height
0.133m
Shipping Length
1.448m
Shipping Cubic
0.030428000m3
