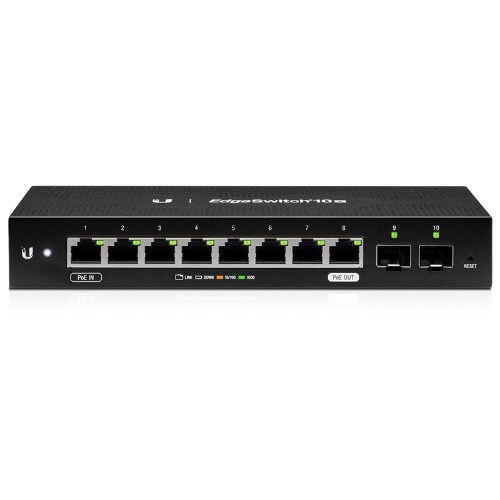

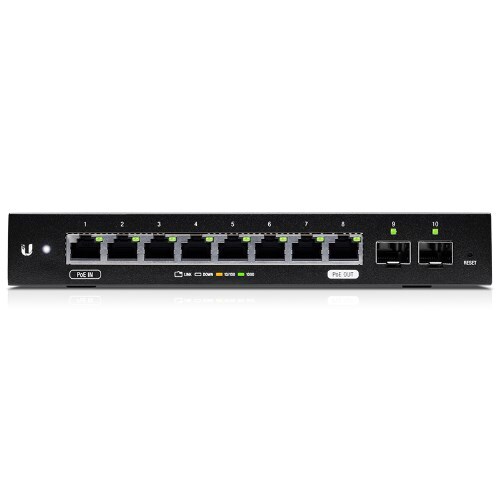

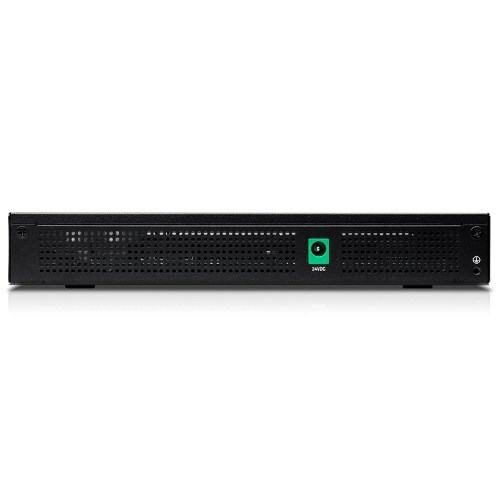

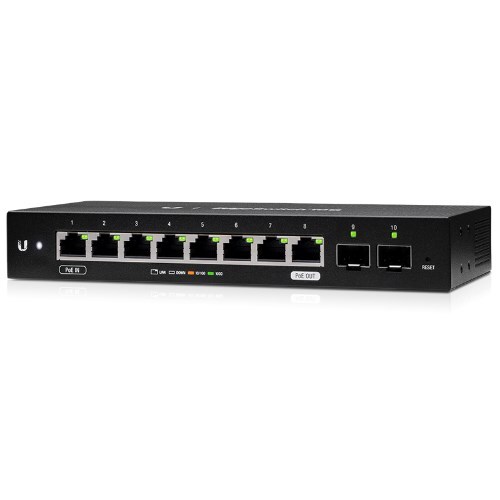

Ubiquiti Networks EdgeSwitch 10x Managed 10-Port Gigabit Switch with PoE Passthrough. 8x Gigabit RJ45 Ports, 2x SFP Ports, Non-Blocking Throughput: 10 Gbps, Switching Capacity: 20 Gbps, Forwarding Rate: 14.88 Mpps, Supports PoE Input on Port 1, Software-selectable PoE Passthrough on Port 8, Powered by 24V Passive PoE or External AC/DC Adapter, DC Jack Supports Battery Backup with EdgePower™ (sold separately), Wall- or Rack-Mountable*



Dimensions: 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
Weight: 500 g (1.10 lb)
Total Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Max. Power Consumption (Excluding PoE Output): 8W
Power Method: 24VDC, 1A or 24V Passive PoE
Supported Voltage Range: 9 - 30VDC
Power Supply: 24VDC, 1A Power Adapter (Included) or 24V Passive PoE

LEDs Per Port:
   System - Status
   RJ45 Data Ports - Link/Speed/Activity
   SFP Data Ports - Link/Activity

Networking Interfaces:
   (8) 10/100/1000 Mbps RJ45 Ports
   (2) 1 Gbps SFP Ports

Management Interface: Ethernet In-Band
Certifications: CE, FCC, IC
Rackmount: Yes (Use the optional ER-RMKIT for rackmounting, sold separately)
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Operating Temperature: -10 to 50° C (14 to 122° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard

Barcode # 817882025188
Brand Ubiquiti
Shipping Weight 2.8127kg
Shipping Width 0.261m
Shipping Height 0.073m
Shipping Length 0.544m
Shipping Cubic 0.010365000m3

Manufacturer Warranty: 12 Months Limited Warranty

Be The First To Review This Product!

Help other DeviceDeal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti Networks EdgeSwitch Managed 10-Port Gigabit Switch with PoE Passthrough

Model # ES-10X
