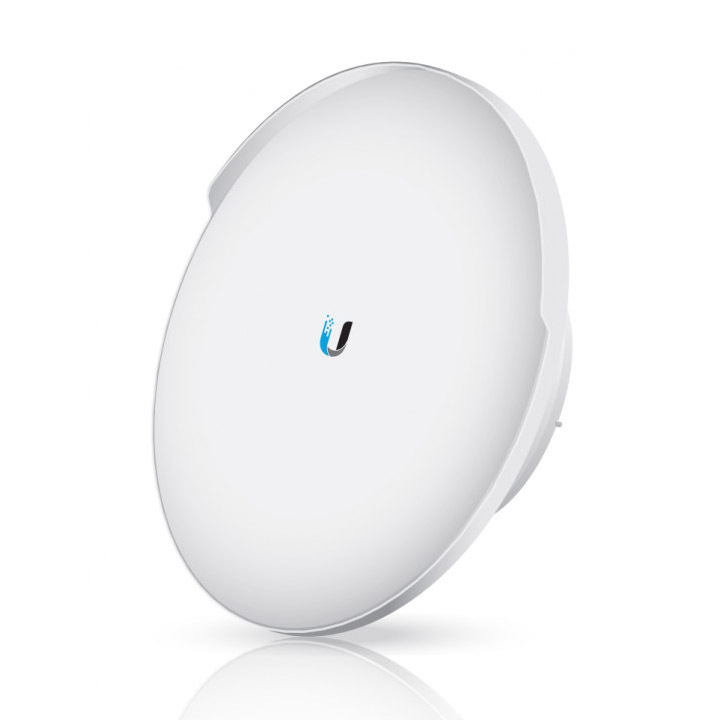

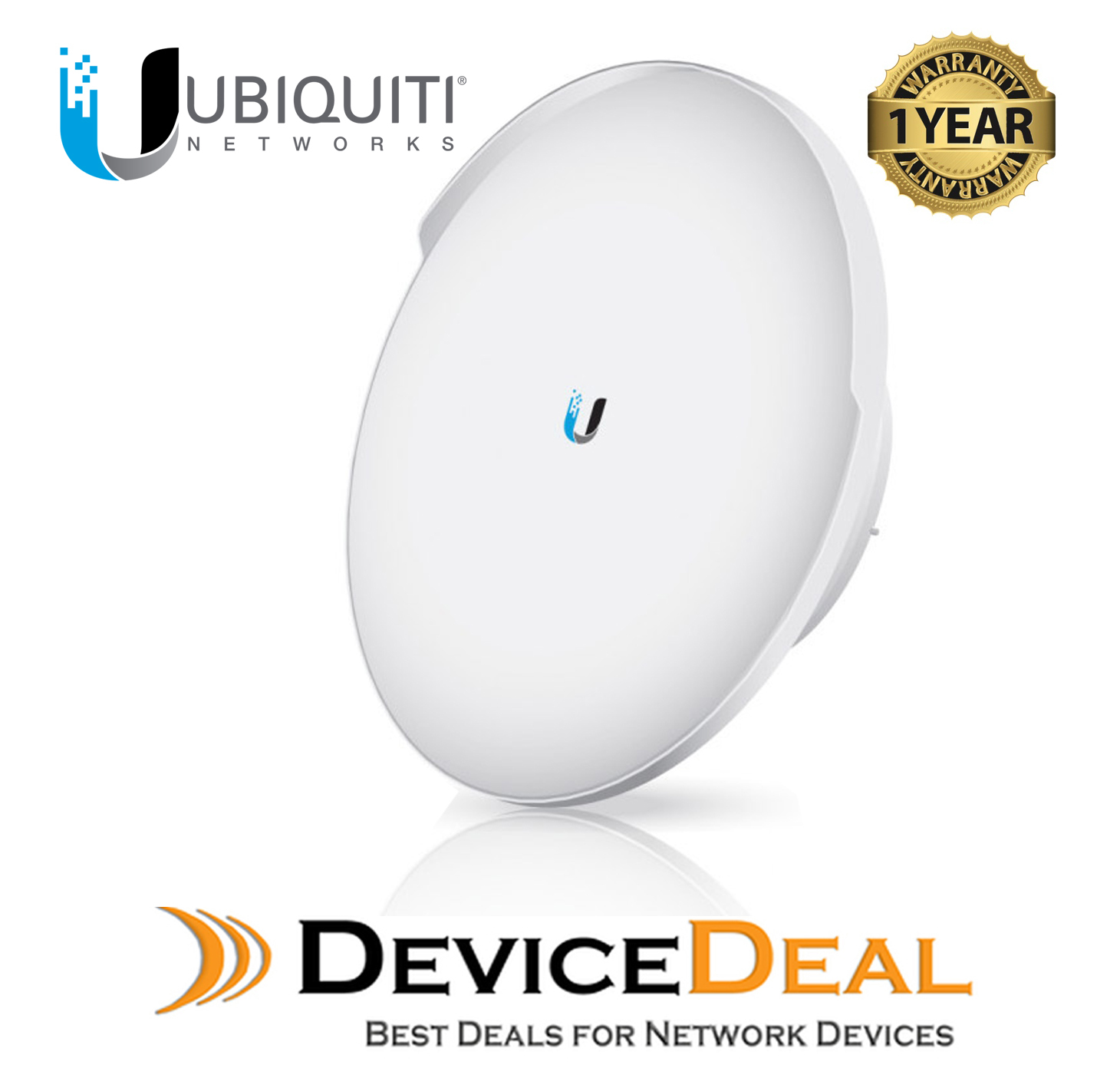

airMAX® ac 2x2 PtP Bridge Dish Antenna

The RocketDish ac Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket5ac radios for Point‑to‑Point (PtP) bridging and backhauls. They are compatible with the RocketM5; however, optimal performance requires the Rocket5ac.





Breakthrough Design and Performance

The powerful RocketDish ac Antennas feature carrier-class construction and 2x2, dual-polarity performance.



Powerful Beam Directivity

The RocketDish ac Antennas feature high isolation and improved F/B ratio for better Signal-to-Noise Ratio (SNR), which allows the use of higher-order modulation and the maximum data rate.



Reduced Interference, Higher Gain

The improved F/B ratio and lower sidelobes significantly reduce interference, so the innovative RocketDish ac Antennas provide superior gain and beam performance for high-capacity, multipoint networks.



Industrial-Strength Construction

RocketDish ac Antennas are designed with robust mechanical design for outdoor application use.



Plug and Play Integration

Every RocketDish ac Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.



Weatherproof Design

Ruggedized yet lightweight components resist corrosion and are designed to withstand harsh outdoor conditions. The included radome and metal shroud help protect against nature’s elements.

Ubiquiti Networks RocketDish AC 5GHz Bridge Dish Antenna - airMAX ac 2x2 PtP Bridge Dish Antenna - Complements Rocket5ac radios for Point-to-Point (PtP) bridging and backhauls - 5 GHz Operating Frequency (5.1-5.8 GHz) - 31 dBi Antenna Gain - Cross-pol Isolation: 35 dB Min - Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included - 12 Months Limited Warranty - RD-5G31-AC

(RD-5G31-AC)

Antenna PtP Bridge Dish Antenna
Dimension 748 x 748 x 349 mm
Gain 31dBi
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
Typical Application Outdoor
Weight 7.6 kg (Mount Included)
Wireless frequency range 5.1 - 5.8 GHz
SKU RD-5G31-AC
Barcode # 810354021411
Brand Ubiquiti
Shipping Weight 8.2800kg
Manufacturer Warranty
1 Year Manufacturer Warranty
Manufacturer Contact Info
https://www.ubnt.com/
