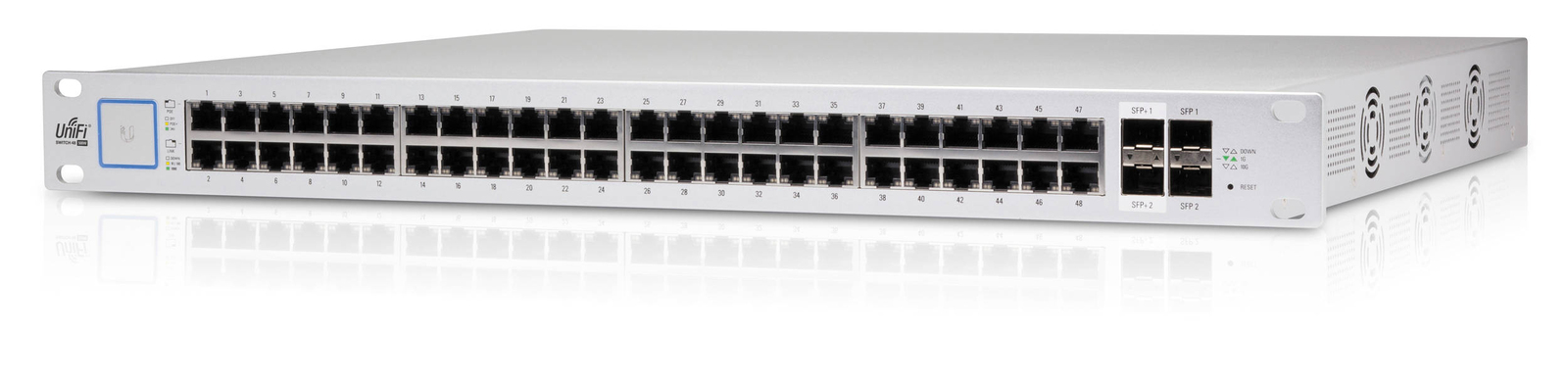

Ubiquiti Networks UniFi Switch US-48-500W 48 Port Managed PoE+ Gigabit Switch

Managed PoE+ Gigabit Switch with SFP

Available with 24 or 48 RJ45 Gigabit ports, the UniFi® Switch delivers robust performance, PoE+ support, and intelligent switching for growing networks.

Powerful Enterprise Switch Models

The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.

Advanced Port Management

Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.

Optical Fiber Connectivity

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ Support

The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Breakthrough Value

The UniFi® Switch provides top price/performance value: a full-featured, enterprise-class switch starting at AU $399.00 USD MSRP.

Seamless Integration

The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.

Ubiquiti Networks UniFi Switch US-48-500W 48 Port Managed PoE+ Gigabit Switch - 48x Gigabit RJ45 ports - 2x SFP+ ports - 2x SFP ports - 1x Serial console port - 140 Gbps Switching capacity - Supports POE+ IEEE 802.3at/af and 24V Passive PoE - Rackmountable - 1 Year Warranty

(US-48-500W)

Dimensions	485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
Features	The UniFi Switch provides fiber connectivity options for easy expansion of your networks
Network Ports	48 10/100/1000 Mbps RJ45 Ethernet Ports 2 1/10 Gbps SFP+ Ethernet Ports 2 1 Gbps SFP Ethernet Ports
Weight	6.1 kg (13.5 lb)
Data Tranfer Rates	104.16 Mpps

Total Non-Blocking Throughput: 70 Gbps

SFP+ Ports: 2

SFP Ports: 2

Max. Power Consumption: 500W

SKU	US-48-500W
Barcode #	810354020780
Brand	Ubiquiti
Shipping Weight	9.0000kg
Shipping Width	0.420m
Shipping Height	0.093m
Shipping Length	0.570m
Shipping Cubic	0.022264000m3

Manufacturer Warranty: 1 Year Manufacturer Warranty
Manufacturer Contact Info: https://www.ubnt.com/
