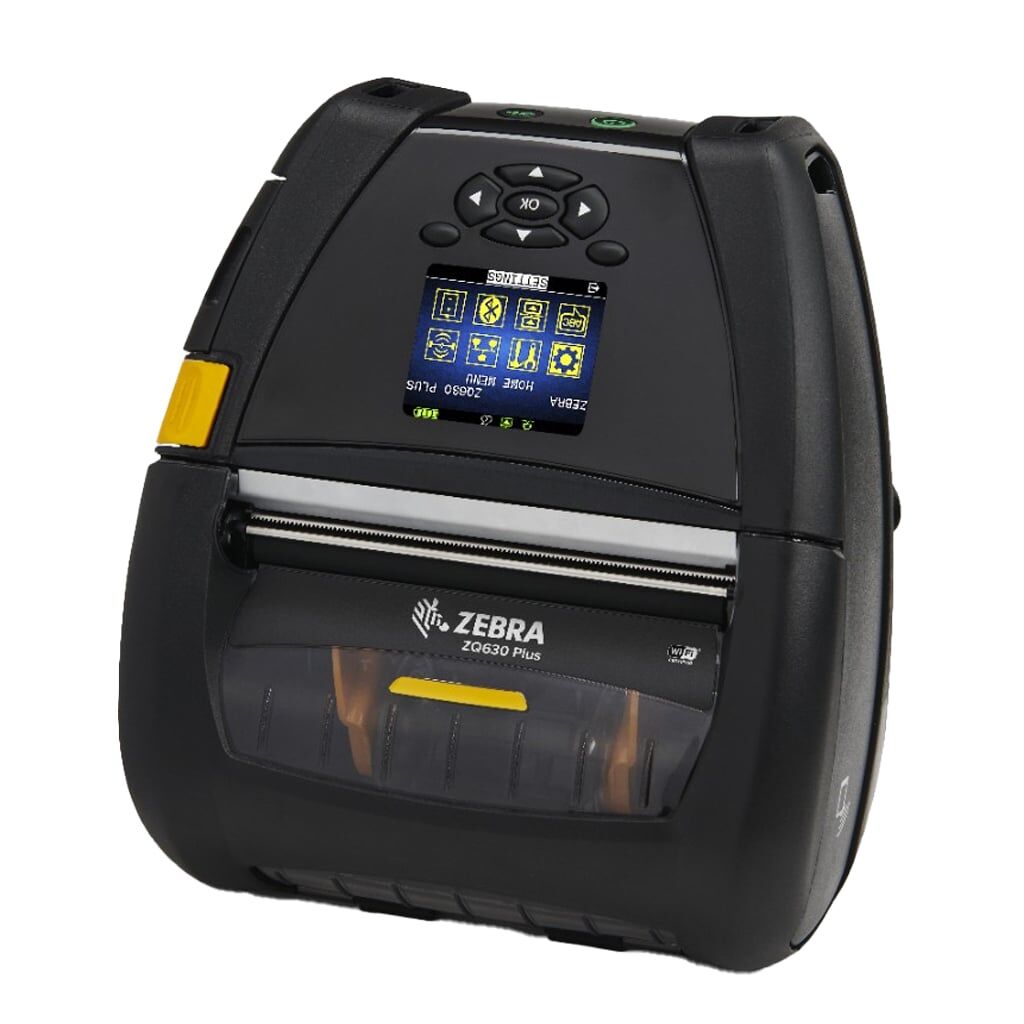

Zebra ZQ630 Plus Mobile Direct Thermal Label/Receipt Printer 203DPI Bluetooth Wi-Fi NFC 4" – ZQ63-AAWAA04-00



Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.

Premium Features for Maximum Productivity

The Latest Wireless Connections

The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Instant Wake-Up Over Wi-Fi

This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

The ZQ600/ZQ600 Plus Series provides a large display, userfriendly interface and easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it longlasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Unsurpassed Battery Power Management

Do More on a Single Charge

With the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power

  • Apple® iOS, Android™ and Windows® Mobile connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL™ and ZPL® programming languages
  • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing

(ZQ63-AAWAA04-00)

Battery Information
Battery Capacity 6800 mAh
Display & Graphics
Display Screen Yes
Memory
Standard Memory 256 MB
Power Description
Power Source Battery
Software
Operating System Supported Link-OS
Miscellaneous
Platform Supported Android
  iOS
  PC
Certifications & Standards

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B


Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5


Safety:

  • CE
  • TUV
  • CSA
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Near Field Communication (NFC) Yes
Physical Characteristics
Weight (Approximate) 1.10 kg
Height 82.6 mm
Width 165.1 mm
Depth 186.7 mm
Fonts & Emulation
Language Emulation ZBI 2.0
  ZPL
  XML
  EPL
  CPCL
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZQ63AAWAA0400
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZQ630 Plus
Product Name ZQ630 Plus Direct Thermal Printer
Product Series ZQ600
Brand Name Zebra
Media Types & Handling
Media Thickness 165.1 µm
Maximum Roll Diameter 66.04 mm
Media Type Tag
  Black Bar
  Black Mark
  Die-cut Label
  Gap
  Label
  Linered Media
  Receipt
Media Sensor Black Mark Sensor
  Gap Sensor
Maximum Label Width 111.76 mm
Maximum Label Length 812.80 mm
Technical Information
Application/Usage Desktop
  Industrial
  Mobile
Barcode Symbology Supported Code 93
  Data Matrix
  2 and 5 Digits Add-on
  Code 39
  AZTEC
  Codabar (NW-7)
  Code 128
  UPC-A
  UPC E with 2 and 5 add on
  UCC/EAN 128
  TLC 39
  QR Code
  POSTNET
  PDF417
  MSI PLESSEY
  Micro PDF-417
  Maxi Code
  Interleaved 2 of 5
  GS1 DataBar
  FIM
  EAN-8
  EAN-13
Maximum Print Width 104 mm (4.09")
Recommended Use Label/Receipt Print
Connectivity Technology Wireless
Features Belt Clip
  Dust Resistant
  Water Resistant
  Shoulder Strap
Print Technology Direct Thermal
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 813 mm
Character Sets Agfa Monotype
  Universal Font Scaling Technology (UFST)
Optional Connectivity Serial (RS-232)
  USB
  Ethernet
Ingress Protection (IP) Rating IP54
Maximum Print Resolution (dpi) 203
SKU ZQ63-AAWAA04-00
Brand ZEBRA
Shipping Weight 0.7000kg

Manufacturer Warranty
