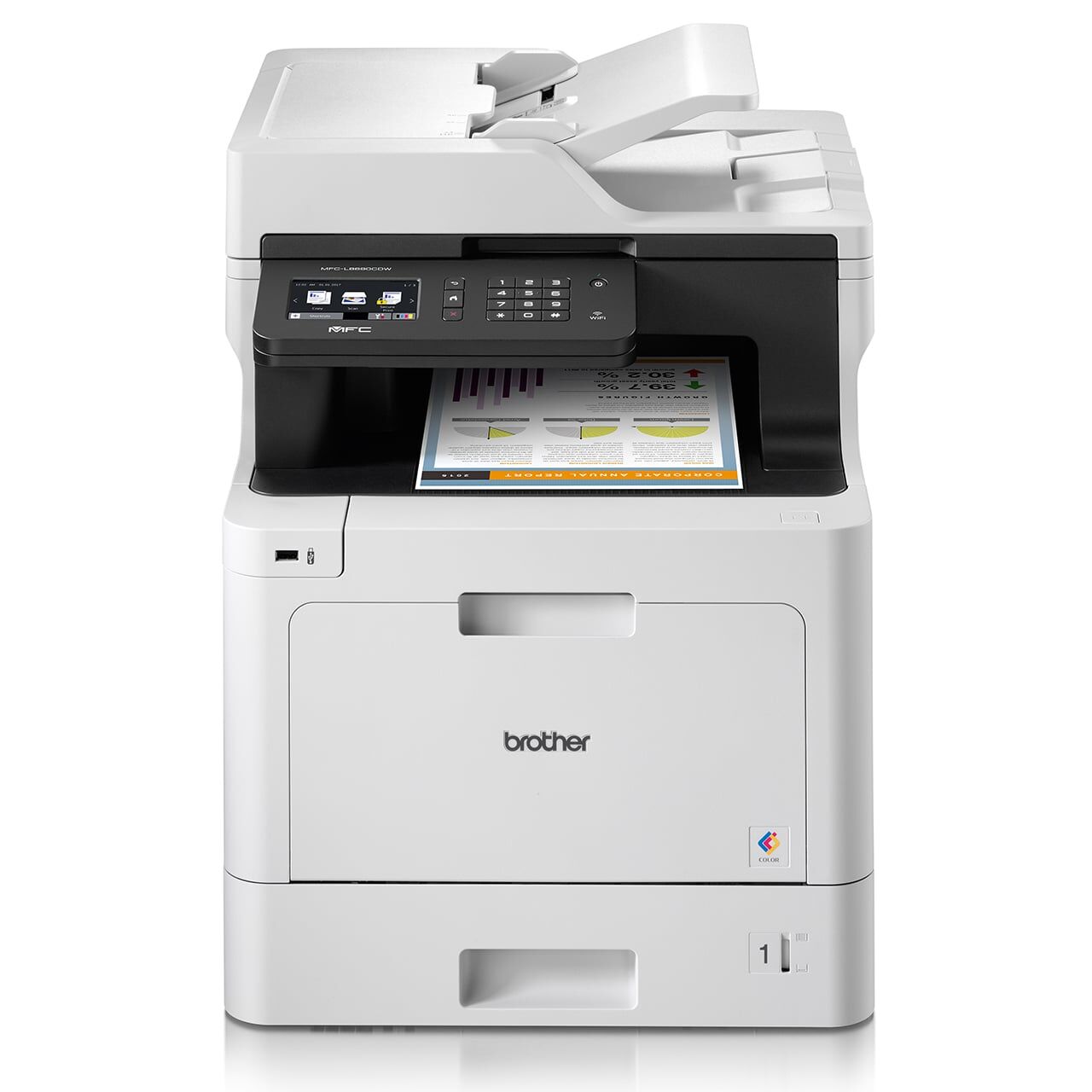

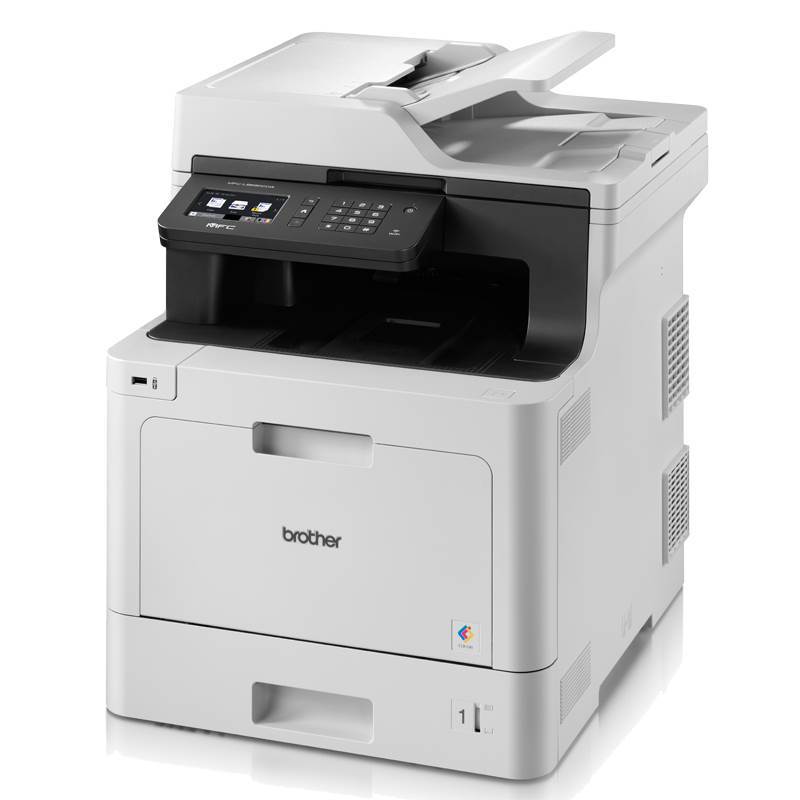

MFC-L8690CDW Professional Colour Laser Multi-Function Printer with Scanner (Print/Scan/Copy/Fax)
The MFC-L8690CDW is designed and engineered for business so you can work quickly and efficiently. This Colour Laser Multi-Function device is packed with automation features so you can digitise documents to your PC, Mac or Cloud storage. Utilise the one-touch feature which allows you to quickly connect with any device (mobile or desktop) and deliver professional 2400dpi quality documents by default, without having to navigate print settings or increase toner costs. It's an intelligent and efficient device to support your team or workgroup.
Key Features:
- Fast print speeds of up to 31 ppm colour and monochrome
- Paper input of up to 300 sheets
- Maximum paper input of up to 1,050 sheets
- Automatic 2-sided (duplex) printing
- 2-sided (duplex) scan speed of 56 ipm colour & monochrome
- Optional high-yield replacement cartridges: 4,500-page BK, 4,000-page C / M / Y
- Gigabit Ethernet and wireless (IEEE 802.11b/g/n) network interfaces
- Intuitive 9.3cm colour touchscreen

Automation
Automate scanning jobs and complete tasks with a touch of a button with 64 programmable shortcut buttons

Simultaneous Print & Scan
Remove office bottlenecks with this multi-tasking feature which allows Print & Scan functions to operate simultaneously

Speed
Digitise and print your documents quicker with ultra fast 31ppm print speed and 56ipm Single Pass Duplex Scan / Copy, reducing the time you spend waiting for your task to complete

Professional Quality
Print crisp and professional laser quality documents at 2400dpi delivered by super high-yield toners working with a pre-programmed printer driver

Scalability

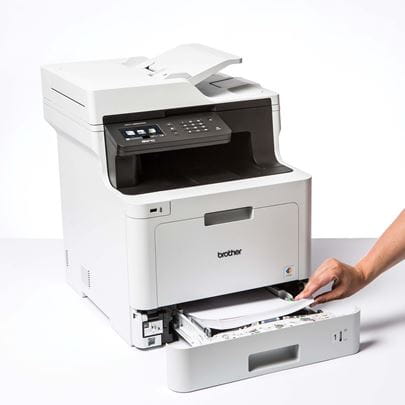

Reduce the hassle of changing paper by having various paper types ready to print from multiple paper trays

Workflow Integrations
Utilise software integration options for print and document management requirements, tailored to your business needs. Contact our team to find out more
(MFC-L8690CDW)
Basic Specs
FUNCTIONS
Print,Scan,Copy,Fax
PRINTER TYPE
Colour Laser
PRODUCT DIMENSIONS (WIDTH X DEPTH X HEIGHT)
435 mm x 526 mm x 539 mm
PRINT SPEED
Up to 31 ppm
MAXIMUM PAPER CAPACITY
Up to 1,050 Sheets (with added optional trays)
WARRANTY
1 year Return to Base Warranty
RESOLUTION
2,400dpi (2,400 x 600) default
BORDERLESS
N/A
2-SIDED - PAPER TYPE
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper, Glossy Paper
2-SIDED - PAPER SIZE
A4
Print Media
PAPER INPUT - PAPER TRAY #1 - PAPER TYPE
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
PAPER INPUT - PAPER TRAY #1 - PORTRAIT
A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal
PAPER INPUT - PAPER TRAY #1 - MAXIMUM PAPER CAPACITY
Up to 250 sheets
PAPER INPUT - PAPER TRAY #2 - PAPER TYPE
(Optional Trays) Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
PAPER INPUT - PAPER TRAY #2 - PORTRAIT
(Optional Trays) A4, Letter, A5, Executive, Legal, Folio, Mexico Legal
PAPER INPUT - PAPER TRAY #2 - MAXIMUM PAPER CAPACITY
(Optional Trays) Up to 500 sheets per tray
PAPER INPUT - MULTI-PURPOSE TRAY - PAPER TYPE
Plain paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Envelope Thin, Envelope Thick, Glossy Paper
PAPER INPUT - MULTI-PURPOSE TRAY - PORTRAIT
Width 76.2 to 215.9 mm, Length 127 to 355.6 mm & Envelopes
PAPER INPUT - MULTI-PURPOSE TRAY - MAXIMUM PAPER CAPACITY
Up to 50 sheets of 80 g/m2 Plain Paper (Up to 10 envelopes)
PAPER INPUT - MANUAL FEED SLOT - PAPER TYPE
N/A
PAPER INPUT - MANUAL FEED SLOT - PORTRAIT
N/A
PAPER INPUT - MANUAL FEED SLOT - MAXIMUM PAPER CAPACITY
N/A
PAPER OUTPUT
Up to 150 sheets Face Down
Document Sizes
ADF (PAPER HANDLING) 1
Up to 50 sheets
Copy
COLOUR
Yes
MONOCHROME
Yes
MULTIPLE COPIES
Sorts/Stacks (up to 99 pages)
ENLARGE/REDUCE
25% to 400% (in increments of 1%)
RESOLUTION
Maximum 1200 x 600 dpi
2-SIDED - PAPER SIZE
A4
Connectivity
USB
USB 2.0
LAN
10Base-T/100Base-TX/1000Base-T
WIRELESS LAN
IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode) IEEE 802.11g/n (Wi-Fi Direct™)
NFC
N/A
Scan
COLOUR SCANNING
Yes
MONOCHROME
Yes
RESOLUTION - INTERPOLATED
Up to 19,200 × 19,200 dpi (interpolated)
RESOLUTION - SCANNER GLASS
Up to 1,200 × 2,400 dpi (optical)
RESOLUTION - ADF
Up to 1,200 x 600 dpi (optical)
SCANNING WIDTH - ADF
Up to 215.9 mm
SCANNING LENGTH - ADF
Up to 355.6 mm
Fax
COMPATIBILITY
ITU-T Super Group 3
MODEM SPEED
33,600bps (Fax)
GROUPS
Up to 20
BROADCASTING
350 locations
SPEED DIAL
300 locations
MEMORY TRANSMISSION
Up to 500 pages
OUT OF PAPER RECEPTION
Up to 500 pages
PC FAX - SENDING
Yes
PC FAX - RECEIVING
Yes (Windows only)
Display & Memory
DISPLAY
9.3cm Colour LCD Touchscreen
MEMORY CAPACITY
512 MB
Weight
WEIGHT
27.9 kg
Operation
POWER SOURCE
AC 220 to 240V 50/60Hz
POWER CONSUMPTION - COPYING
Approx. 550W
POWER CONSUMPTION - READY
Approx. 70W
POWER CONSUMPTION - SLEEP
Approx. 10W
POWER CONSUMPTION - POWER OFF
Approx. 0.03W
NOISE LEVEL
49 dB (A) (Approx.)
Network
WIRELESS NETWORK SECURITY
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
WIRELESS SETUP SUPPORT UTILITY - WPS
Yes
System Requirements
WINDOWS® OPERATING SYSTEM
Windows 7, Windows 8 , Windows 8.1 , Windows 10, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
MAC OPERATING SYSTEM
Mac OS X 10.10.5 or greater
| SKU | MFC-L8690CDW |
| Barcode # | 4977766774604 |
| Brand | BROTHER |
| Shipping Weight | 33.7000kg |
| Shipping Width | 0.540m |
| Shipping Height | 0.650m |
| Shipping Length | 0.650m |
| Shipping Cubic | 0.228150000m3 |
Manufacturer Warranty: 1 Year Return to Base Warranty Manufacturer Contact Info: http://www.brother.com.au/, (02) 9887 4344
