12-Port Gigabit Industrial Smart Managed Switch with 10 1000BASE-T ports and 2 SFP ports

The DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches are equipped with 8 PoE-capable 10/100/1000BASE-T ports (PoE models), 2 10/100/1000BASE-T ports, and 2 SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G Series furthermore integrate advanced management and security functions to provide a complete solution.





Features





Easy Management

Easy to manage with user friendly Web-based management and industry-standard CLI.





Gigabit Connectivity with PoE and SFP

Designed with 10 x Gigabit ports and 2 x SFPs slot to suit a range of network layouts.





Fast Deployment

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.





High Availability

Rapid ring failover recovery time of < 20ms.





Surge Protection

High-capacity 6 kV surge protection on all copper ports.





Officially Certified

Certifications for vibration, shock, free-fall, and electromagnetic compatibility.





Withstands Extreme Temperatures

Operates in harsh environments with temperatures from -40°C to +75°C.





Strong Build

The tough housing has been created to keep your network protected and reliably rugged.





Fanless Design

With no moving parts inside to reduce downtime and maintenance call outs.





Discrete Size

Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.





Durable, Reliable, and Efficient



The DIS-200G Series switches are housed in a highly resistant metal casing to protect the switches from harsh environments. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-200G Series while also being able to operate in a wider temperature range of up to 75 °C.
For increased flexibility, the DIS-200G Series can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack. Additionally, the DIS-200G Series features 6 kV surge protection to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes.









High Redundancy and Reliability



The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.







Surveillance Traffic Optimization



The DIS-200G Series supports the Auto Surveillance VLAN feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting their traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.







Easy Troubleshooting



The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.





(DIS-200G-12SW)

  • 8 1000BASE-T ports and 2 SFP ports
  • Robust and High-Redundancy Design

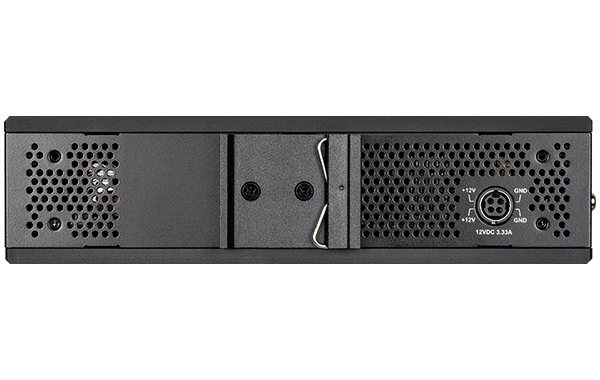

  • DIN Rail mountable
  • Fanless, passive cooling design
  • High EMC endurance
  • 6 kV surge protection on copper ports
  • Dual power input for redundant power supplies
  • Advanced networking features
  • Ethernet Ring Protection Switching (ERPS)



1000BASE-T Ports : 10
SFP Ports : 2
PoE Type Required : None
Switching Capacity : 24 Gbps
MAC Address Table Size : 8K
Metal Housing : Yes
DIN Rail Mountable : Yes

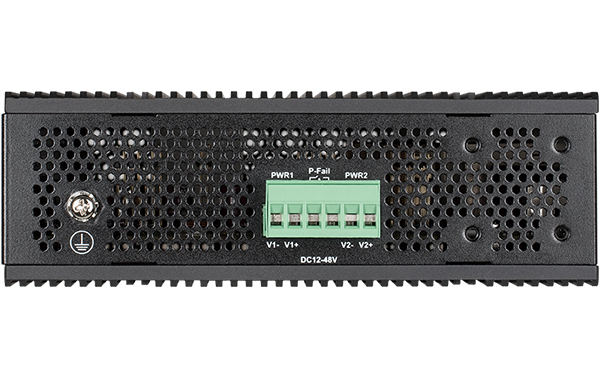

Power Input : 12 to 48V DC terminal block dual; 12V DC 4-pin DIN single
Fans : Fanless
Operating Temperature : From -40° to 75°C
Surge Protection : 6 kV Surge Protection
Management Options : Smart Managed



SKU DIS-200G-12SW
Barcode # 790069433528
Brand D-Link
Shipping Weight 2.1100kg
Manufacturer Warranty
12 Months Limited Warranty
