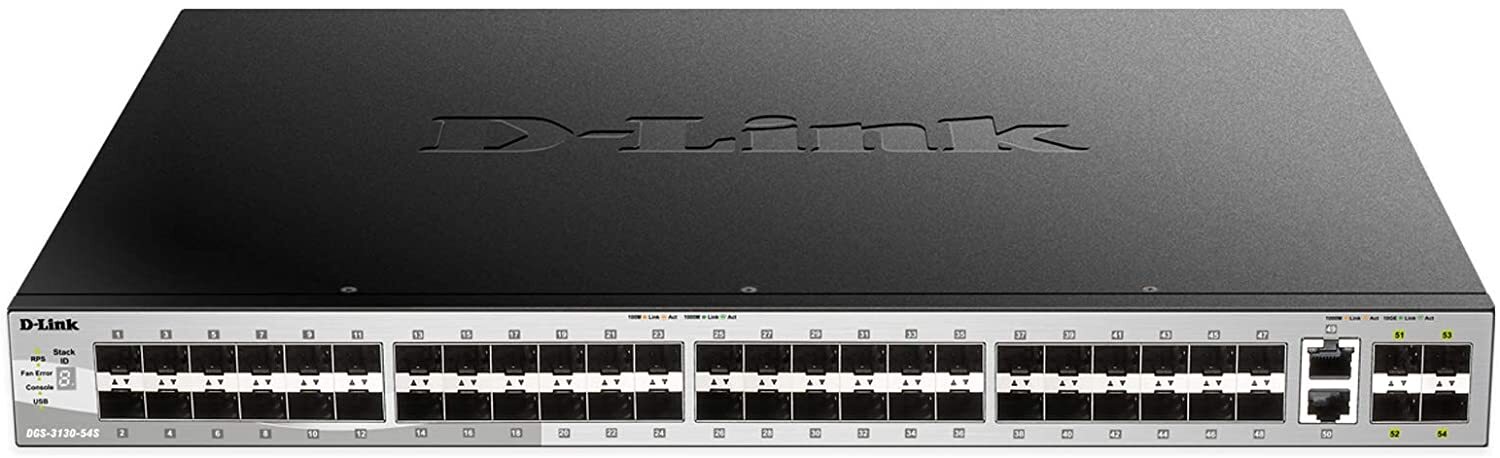

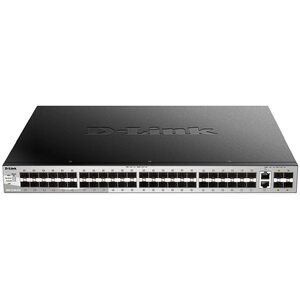

D-Link 54 port Stackable Gigabit Switch with 48 SFP ports and 4 10 Gigabit SFP+ ports and 2 10GBASE-T ports.
Model # DGS-3130-54S
-
SKU: DGS-3130-54S
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link DGS-3130, 54-Port Stackable Managed Switch with 48 SFP, 2 (10G) BASE-T and 4 (10G) SFP+ Ports
DGS-3130-54S
Network - Switches
Features
The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130 Series has models equipped with Gigabit Ethernet, Power over Ethernet (PoE) and SFP network connection options ranging from 24 to 48 ports.
- RJ-45 Ports: 50
- RJ-45 Speeds: 1Gbps / 10Gbps
- Combo Ports (RJ-45 + SFP): 48 SFP, 2 (10G) BASE-T and 4 (10G) SFP+ Ports
- SFP (Small Form-Factor Pluggable) Ports : 52
- SFP Speeds: 48 (1G), 4 (10G) SFP+
- PoE++ (60w) or higher available?: No
- Number of PoE Ports: 0
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): 64-Byte Packet Forwarding Rate: 161 Mbps
- Switching Capacity in Gigabits per Second (Gbps): 216
- Web-based GUI: Yes
- Redundant Power Supply: No
- 19" Rack Mountable: Yes
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): Yes
- Stacking Capacity (Virtual): Yes
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
- Ruggedized: No
- Operating Temperature: 0 to 50 C
- Unit dimensions: 440 x 350 x 44 mm
- Warranty Licence: Ltd L'Time
Technical Details
| Model | DGS-3130-54S |
|---|---|
| Main Port Type | Ethernet |
| Port Count | 54 |
| SFP Ports | 4 |
| Port Speed | 10/100/1000 |
| Managed | Fully Managed |
| PoE | No |
| PoE Budget | NA |
| OSI Layer Capability | Layer 3 |
| Form Factor | Rack-mount |
| Standard Warranty | Ltd L'Time |
| Stackable | Both |
| Cooling | Active |
| Redundant Power Supply | No |
| Cloud Managed | No |
| Licence required | No |
| Warranty |
Resources
High resolution Image
Links and Download
(DGS-3130-54S)
Technical Details
| Model | DGS-3130-54S |
|---|---|
| Main Port Type | Ethernet |
| Port Count | 54 |
| SFP Ports | 4 |
| Port Speed | 10/100/1000 |
| Managed | Fully Managed |
| PoE | No |
| PoE Budget | NA |
| OSI Layer Capability | Layer 3 |
| Form Factor | Rack-mount |
| Standard Warranty | Ltd L'Time |
| Stackable | Both |
| Cooling | Active |
| Redundant Power Supply | No |
| Cloud Managed | No |
| Licence required | No |
| Warranty |
| SKU | DGS-3130-54S |
| Barcode # | 790069435317 |
| Brand | D-LINK |
| Shipping Weight | 5.8200kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.460m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.002950000m3 |
Manufacturer Warranty
12 Months Limited Warranty
Manufacturer Contact Info
1300 766 868
