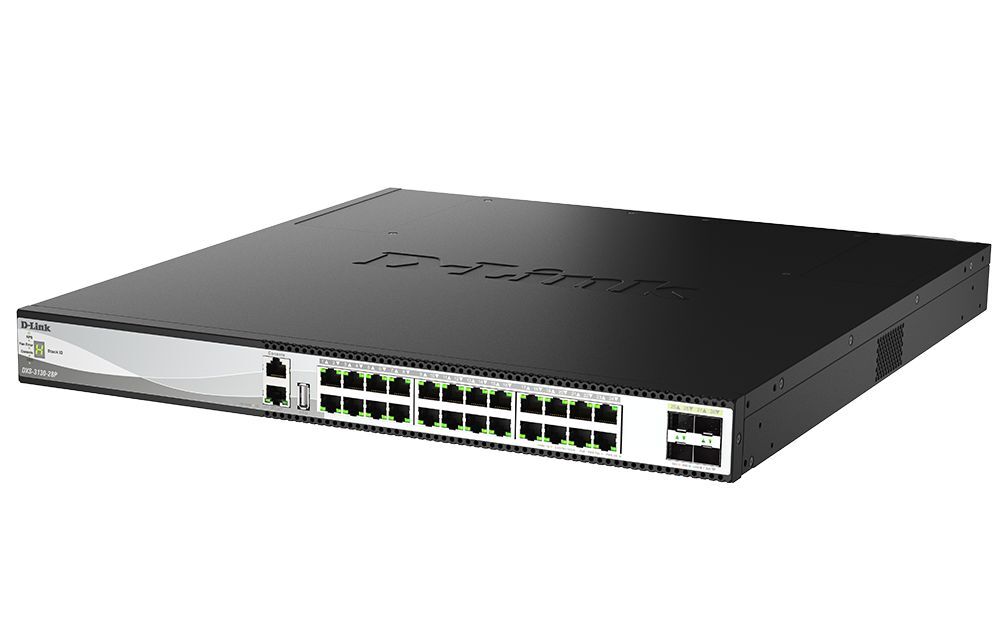

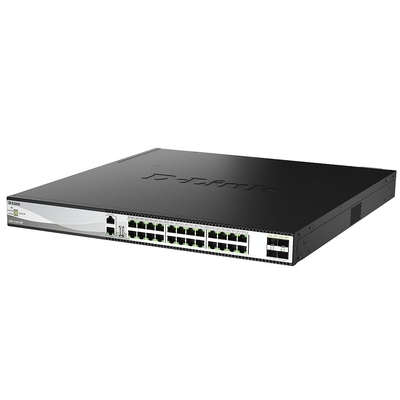

D-LINK DXS-3130-28P 28-Port Stackable 10 Gigabit PoE++ Layer 3 Switch
Model # DXS-3130-28P
-
SKU: DXS-3130-28P
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link DXS-3130-28P, 28-Port Managed Switch with 24 10G/MultiGig PoE (60W) and 4 (25G) SFP28 Ports, 790W
DXS-3130-28P
Network - Switches
Features
The DXS-3130-28P Layer 3 Stackable Managed Switch is designed for secure connectivity in an enterprise or metro Ethernet access network and supports both multicasting and enhanced security, making it an ideal 10G/multi-Gigabit access layer solution. The DXS-3130-28P features 24 10G/multi-Gigabit 802.3bt 60W PoE++ ports and 4 10/25G SFP28 ports, offering a versatile and high-speed networking connection. The DXS-3130- 28P is equipped with 24 PoE ports, supporting 802.3af, 802.3at, and 802.3bt 60W PoE++ standards.
- RJ-45 Ports: 28
- RJ-45 Speeds: 10/100/1000
- Combo Ports (RJ-45 + SFP): 24 10G/MultiGig PoE (60W) + 4 (25G) SFP28 Ports
- SFP (Small Form-Factor Pluggable) Ports: 4
- SFP Speeds: 28G
- PoE++ (60w) or higher available?: Yes
- Extended PoE?: No
- Number of PoE Ports: 24
- Capacity in Millions of Packets per Second (mpps): 298
- Switching Capacity in Gigabits per Second (Gbps): 680
- Web-based GUI: Yes
- Redundant Power Supply: Yes
- 19" Rack Mountable: Yes
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): Yes
- Stacking Capacity (Virtual): Yes
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
- Unit dimensions: 440 x 470 x 44 mm
- Ruggedized: No
- Operating Temperature: 0 to 50 C
Technical Details
| Model | DXS-3130-28P |
|---|---|
| Main Port Type | Ethernet |
| Port Count | 28 |
| SFP Ports | 4 |
| Port Speed | 100M |
| Managed | Managed |
| PoE | Yes |
| PoE Budget | 790 |
| OSI Layer Capability | Layer 3 |
| Form Factor | Rack-mount |
| Stackable | Both |
| Cooling | Active |
| Redundant Power Supply | Yes |
| Cloud Managed | No |
| Licence required | No |
Resources
High resolution Image
Links and Download
(DXS-3130-28P)
Technical Details
| Model | DXS-3130-28P |
|---|---|
| Main Port Type | Ethernet |
| Port Count | 28 |
| SFP Ports | 4 |
| Port Speed | 100M |
| Managed | Managed |
| PoE | Yes |
| PoE Budget | 790 |
| OSI Layer Capability | Layer 3 |
| Form Factor | Rack-mount |
| Stackable | Both |
| Cooling | Active |
| Redundant Power Supply | Yes |
| Cloud Managed | No |
| Licence required | No |
| SKU | DXS-3130-28P |
| Barcode # | 790069474125 |
| Brand | D-LINK |
| Shipping Weight | 6.4000kg |
