D-LINK Smart Managed Switch DGS-1520-28MP
Model # DGS-1520-28MP
-
SKU: DGS-1520-28MP
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link DGS-1520, 28-Port Stackable Smart Managed Switch with 20 Base-T PoE, 4 (2.5G) Base-T PoE, 2 (10G) Base-T and 2 (10G) SFP+ Ports
DGS-1520-28MP
Network - Switches
Features
The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity.
- RJ-45 Ports: 26
- RJ-45 Speeds: 1Gbps / 10Gbps
- Combo Ports (RJ-45 + SFP): 20 Base-T PoE, 4 (2.5G) Base-T PoE, 2 (10G) Base-T and 2 (10G) SFP+ Ports
- SFP (Small Form-Factor Pluggable) Ports : 2
- SFP Speeds: 10G
- PoE++ (60w) or higher available?: Yes
- Number of PoE Ports: 20
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): 104.16
- Switching Capacity in Gigabits per Second (Gbps): 140
- Web-based GUI: Yes
- Redundant Power Supply: No
- 19" Rack Mountable: Yes
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): Yes
- Stacking Capacity (Virtual): Yes
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
- Ruggedized: No
- Operating Temperature: -5 to 50 C
- Unit dimensions: 441 x 308.5 x 44 mm
- Warranty Licence: Ltd L'Time
Technical Details
| Model | DGS-1520-28MP |
|---|---|
| Main Port Type | Ethernet |
| Port Count | 28 |
| SFP Ports | 2 |
| Port Speed | 10/100/1000 |
| Managed | Smart Managed |
| PoE | Yes |
| PoE Budget | 370 |
| OSI Layer Capability | Layer 3 |
| Form Factor | Rack-mount |
| Standard Warranty | Ltd L'Time |
| Stackable | Both |
| Cooling | Passive |
| Redundant Power Supply | No |
| Cloud Managed | No |
| Licence required | No |
| Warranty | LTD L'TIME |
Resources

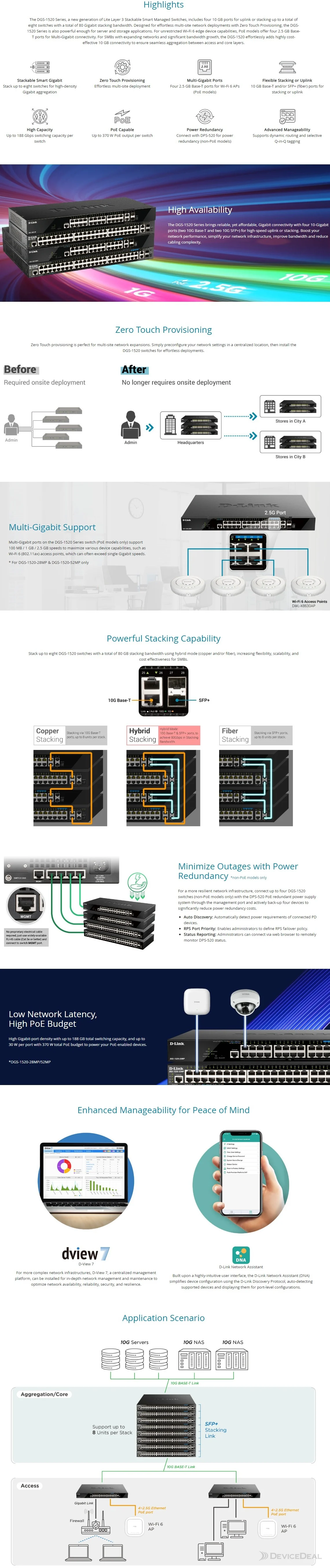

High resolution Image
(DGS-1520-28MP)
Technical Details
| Model | DGS-1520-28MP |
|---|---|
| Main Port Type | Ethernet |
| Port Count | 28 |
| SFP Ports | 2 |
| Port Speed | 10/100/1000 |
| Managed | Smart Managed |
| PoE | Yes |
| PoE Budget | 370 |
| OSI Layer Capability | Layer 3 |
| Form Factor | Rack-mount |
| Standard Warranty | Ltd L'Time |
| Stackable | Both |
| Cooling | Passive |
| Redundant Power Supply | No |
| Cloud Managed | No |
| Licence required | No |
| Warranty | LTD L'TIME |
| SKU | DGS-1520-28MP |
| Barcode # | 790069454776 |
| Brand | D-LINK |
| Shipping Weight | 5.9500kg |
| Shipping Width | 0.480m |
| Shipping Height | 0.520m |
| Shipping Length | 0.110m |
