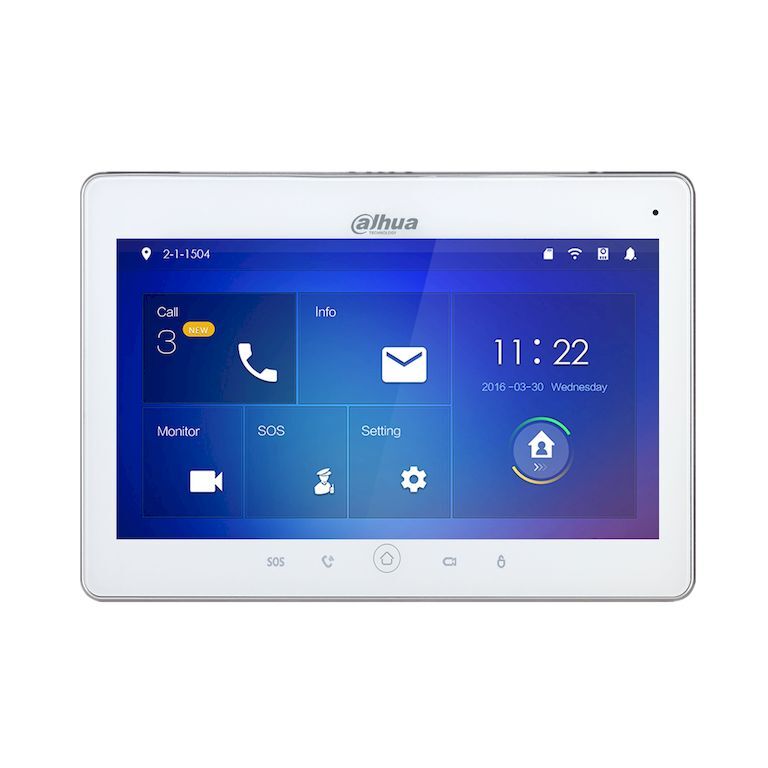

Technical Speci?cation Model VTH5241DW-S2 System Main Processor Embedded Micro Processor Operation System Embedded LINUX OS Video Video Compression H.264 Audio Audio Compression G.711 Audio Input All-direction Microphone Audio Output Built-in Loudspeaker Bidirectional Talk Support Dual-way Bidirectional talk Display LCD Screen 10" 1024x600 Operation Mode Input Touch buttons and capacitive screen Interface Wired Zones 6 on-board zones Wireless Zones 8 wireless zones Alarm Out 1 RS485 1 Network Wi-Fi IEEE802.11b/g/n 2400~2483.5MHz CE EIRP?20dBm, FCC POWER?30dBm Ethernet 10M/100Mbps Self-adaptive Network Protocol TCP/IP General Memory Slot Micro SD, Max 32GB Installation Surface Power DC 12V, PoE?802.3af) Power Consumption Work ?8W Working Temperature ?10°C to +55°C Relative Humidity 10%RH–90%RH Dimensions 265.0mm×180.0mm×22.5mm Weight 1kg
