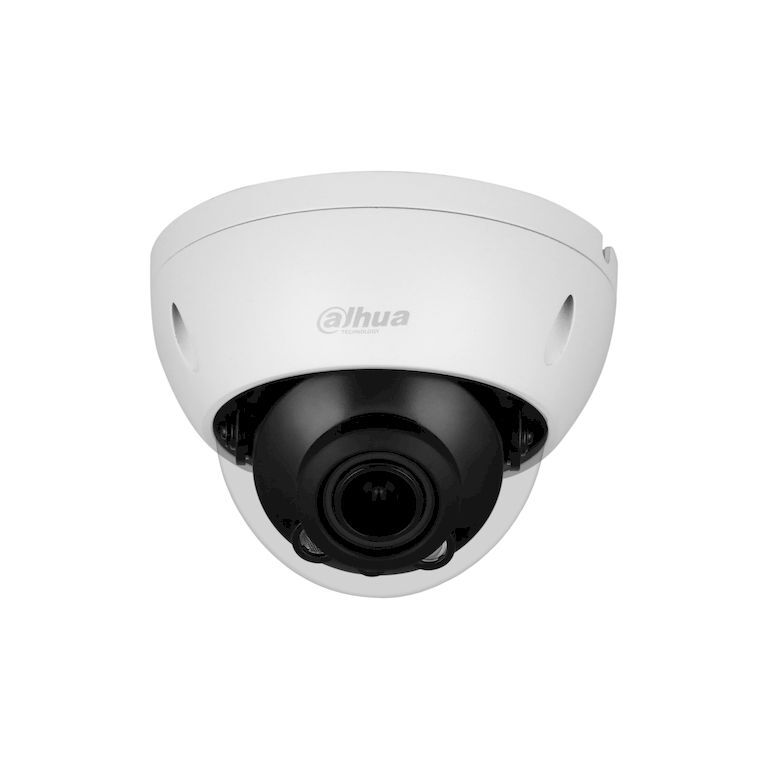

Camera Image Sensor 1/2.7” 5Megapixel progressive CMOS Max. Resolution 2592 (H) × 1944 (V) ROM 128 MB RAM 256 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.008 Lux @ F1.5 S/N Ratio >56 dB Illumination Distance 40 m (131.2 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 2 (IR LED) Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° Lens Lens Type Motorized vari-focal Mount Type ?14 Focal Length 2.7 mm–13.5 mm Max. Aperture F1.5 Field of View Horizontal: 100°–26° Vertical: 72°–20° Diagonal: 133°–33° Iris Type Fixed Close Focus Distance 0.8m–0.8m (2.62 ft–2.62 ft) DORI Distance Lens Detect Observe Recognize Identify W 64 m (209.97 ft) 25.6 m (83.99 ft) 12.8 m (41.99 ft) 6.4 m (21 ft) T 220 m (721.78 ft) 88 m (288.71 ft) 44 m (144.36 ft) 22 m (72.18 ft) Smart Event IVS Tripwire; intrusion Video Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265+/ Smart H.264+ Video Frame Rate Main stream: 2592 × 1944 (1 fps-20 fps) 2688 × 1520 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) Stream Capability 2 streams Resolution 2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 Kbps–8192 Kbps H.265: 12 Kbps–8192 Kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest(RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 resolution and lower.) Mirror Yes Privacy Masking 4 areas Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception Network Network RJ-45 (10/100 Base-T) SDK and API Yes Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec User/Host 20 Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Power Power Supply 12V DC/PoE (802.3af) Power Consumption < 7.9W Environment Operating Conditions -30°C to +60°C (-22°F to +140°F)/less than ? 95% Storage Temperature -40°C to +60°C (-40°F to +140°F) Protection IP67; IK10 Structure Casing Metal Dimensions ?122 mm × 88.9 mm (?4.80" × 3.50") Net Weight 0.47 kg (1.1 lb) Gross Weight 0.63 kg (1.4 lb)
