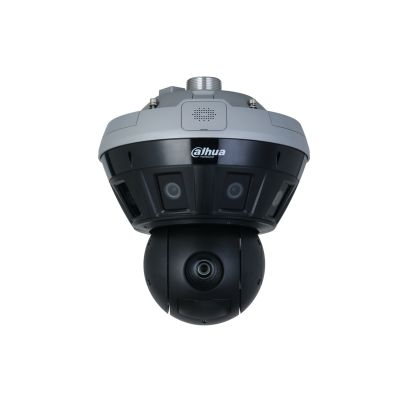

Camera Image Sensor Panoramic network camera: 1/1.8"CMOS PTZ camera: 1/1.8"CMOS Max. Resolution Panoramic network camera: 4096 × 1800 PTZ camera: 2560 × 1440 ROM Panoramic network camera: 4 GB PTZ camera: 4 GB RAM Panoramic network camera: 4 GB PTZ camera: 1 GB Scanning System Progressive Electronic Shutter Speed Panoramic network camera: Auto/Manual 1/3 s-1/100,000 s PTZ Camera: Auto/Manual 1/1 s-1/300,000 s Min. Illumination Panoramic network camera:0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0(B/W, 30 IRE) PTZ camera:0.001 lux @F1.6(Color, 30 IRE); 0.0001 lux @F1.6(B/W, 30 IRE); 0 lux (Illuminator on) S/N Ratio Panoramic network camera: >56 dB PTZ camera: >56 dB Illumination Distance Panoramic network camera: NA PTZ camera: up to 100 m (328.08 ft) (IR on) Illuminator On/Off Control Auto; Zoomprio; Manual Illuminator Number Panoramic network camera: NA PTZ camera: 4(IR LED) Gradienter The horizontal gradient is visualized, simplifying installation. Lens Lens Type Panoramic network camera: Fixed-focal PTZ camera: Motorized vari-focal Lens Mount Panoramic network camera: M16 PTZ camera: Module Focal Length Panoramic network camera: 2.8 mm PTZ camera: 5.3 mm–134 mm, optical zoom (25 times) Max. Aperture Panoramic network camera: F1.0 PTZ camera: F1.6–F4.0 Field of View Panoramic network camera: H: 180°; V: 103° PTZ camera: H: 3.5°–58°; V: 2°–35°; D: 2°–64° Iris Control Panoramic network camera: Fixed PTZ camera: Auto Close Focus Distance Panoramic network camera:1.4 m (4.59 ft) PTZ camera: 0.5 m–7 m (1.64 ft–22.96 ft) DORI Distance Lens Detect Observe Recognize Identify Panoramic network camera 57.9 m (189.96 ft) 23.2 m (76.11 ft) 11.6 m (38.05 ft) 5.8 m (19.02 ft) PTZ camera 1688 m (5538.05 ft) 675 m (2214.56 ft) 337 m (1105.64 ft) 168 m (551.18 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence IVS (Perimeter Protection) Panoramic network camera: Intrusion, tripwire PTZ camera:Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering. Face Detection PTZ camera: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Video Metadata PTZ camera: Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, calling,etc. Non-motor vehicle attributes: type, color, number of people, top type and color ,helmet. Human body attributes: gender, top/bottom type and color, bag, hat, gender, and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. Video Video Compression H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265+; Smart H.264+ Video Frame Rate Panoramic network camera: Main stream: 4096 × 1800@(1-25/30fps) Sub stream: 1024 × 452@(1-25/30fps) Third stream: 1920 × 832@(1-25/30fps) PTZ camera: Main stream: 2688 × 1520@(1-25/30fps) Sub stream: 704 × 480@(1-25/30fps) Third stream: 1920 × 1080@(1-25/30fps) Stream Capability 3 streams Resolution Panoramic network camera: Main stream: 4096 × 1800; 3840 × 1680; 2880 × 1264; 2048 × 900 Sub Stream: 1024 × 452 Third Stream: 1920 × 832; 1280 × 560 PTZ camera: Main stream: 2560 × 1440; 1920 × 1080; 1280 × 960; 1280 × 720 Sub Stream: 704 × 576; 352 × 288 Third Stream: 1920 × 1080; 1280 × 960; 1280 × 720 Bit Rate Control CBR/VBR Video Bit Rate Panoramic network camera: H.264: 3328 kbps–16640 kbps H.265: 1280 kbps–9984 kbps PTZ camera: H.264: 2816 kbps – 13056 kbps H.265: 1024 kbps –7936 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes HLC Yes WDR Panoramic network camera: WDR (120 dB) PTZ camera: WDR (120 dB) White Balance Panoramic network camera: Auto; natural; street lamp; outdoor; manual; regional custom PTZ camera: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural; street lamp Gain Control Auto; Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Image Stabilization Panoramic network camera: NA PTZ camera: Electronic Image Stabilization (EIS) Smart Illumination Panoramic network camera:NA PTZ camera:Yes Defog Panoramic network camera: NA PTZ camera: Yes Image Rotation 0°/180° (PTZ camera) Privacy Masking Panoramic network camera: 4 areas PTZ camera: 8 areas LDC Panoramic network camera: Yes PTZ camera: No Audio Built-in MIC Yes, built-in dual Mic Built-in Speaker Yes, built-in speaker Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; parking detection; scene changing; audio detection; voltage detection; external alarm; video metadata; security exception Network Network Port RJ-45(10/100/1000 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP Cyber Security Configuration encryption; trusted execution; Digest; security logs;WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone User/Host 14 (Total bandwidth: 176 M) Storage Micro SD card (support max. 512GB); FTP; SFTP; NFS; SMB Browser IE: IE11 Chrome Firefox Management Software DSS Certification Certifications CE-LVD:EN62368-1 CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 PTZ Dome Pan/Tilt Range Pan: 0° to 360° endless Tilt: –10° to 90°, auto flip 180° Manual Control Speed Pan: 0.1°/s–120°/s Tilt: 0.1°/s–50°/s Positioning Accuracy Pan: 0.1° Tilt: 0.1° Remote PTZ Reset Yes Preset 300 Tour 8 Tour (up to 32 preset per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Preset/Pattern/Tour/Scan Time Task Yes Three-dimensional Positioning Yes PTZ Limit Yes Position Display Yes Information Display Yes Time Display Yes Port Audio Input 2 channels (terminal) Audio Output 1 channel (terminal) Alarm Input 3 channels in: 5 mA 3–5 VDC Alarm Output 2 channels out: 1,000 mA 30 VDC/500 mA 50 VAC Analog Output 1 channel (CVBS output: BNC) Power Power Supply 36 VDC Power Consumption Basic: 35 W (36 VDC) Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation ): 45 W (36 VDC) Environment Operating Temperature –40 °C – +60 °C (–104 °F to +140 °F) Operating Humidity ?95% Storage Temperature –40°C to +70°C (–104°F to +158°F) Protection IP67 Structure Casing Material Metal + plastic Product Dimensions 326 mm × ?280 mm (12.83" × ?11.02") Packaging Dimensions 394 mm × 352 mm × 468 mm (15.51" × 13.86" × 18.43") Net Weight 7 kg (15.43 lb)
