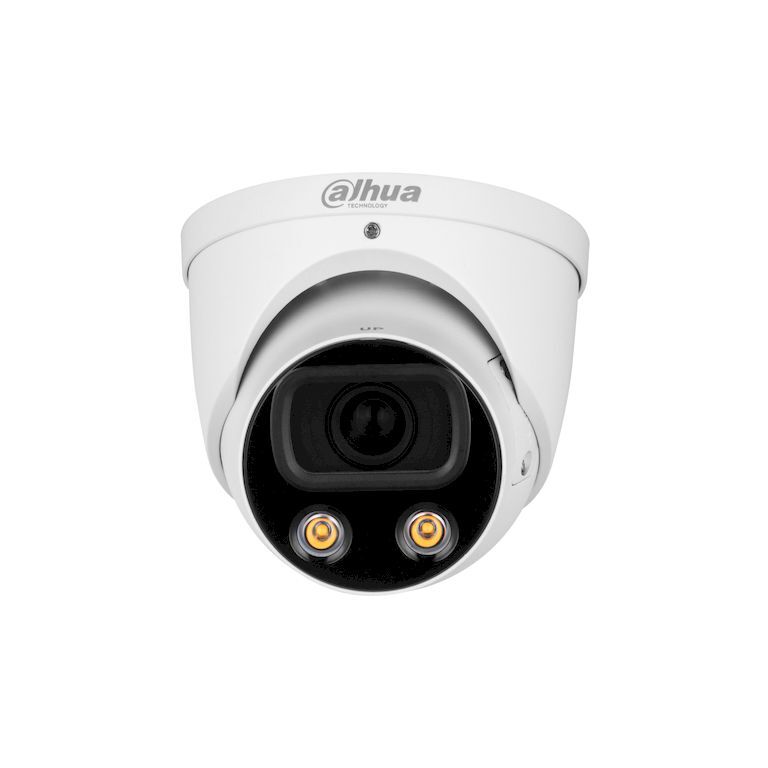

Camera Image Sensor 1/1.2'' CMOS Max. Resolution 3840 (H) × 2160 (V) ROM 128 MB RAM 1 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.0005Lux@F1.0 S/N Ratio >56 dB Illumination Distance 50 m (164.04 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 2 (Warm light) Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M22 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.0 Field of View 2.8 mm: H: 102°; V: 53° ; D: 125° 3.6 mm: H: 88°; V:48° ; D: 104° Iris Type Fixed Close Focus Distance 2.8 mm: 5 m (16.4 ft) 3.6 mm: 6 m (19.7 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 95.6m (313.65 ft) 38.2 m (125.33 ft) 19.1 m (62.66 ft) 9.6 m (31.50 ft) 3.6 mm 105.9 m (347.44 ft) 42.4 m (139.11 ft) 21.2 m (69.55 ft) 10.6 m (34.78 ft) Smart event IVS Abandoned object; missing object Heat Map Yes Professional, intelligent IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. People Counting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265+/Smart H.264+ Video Frame Rate Main stream: 3840 × 2160 @(1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 3 streams Resolution 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps Day/Night Color/B/W BLC Yes HLC Yes WDR 140 dB Defog Yes White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management Network Network RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade Interoperability ONVIF( Profile S/Profile G/Profile T); CGI; Milestone; P2P User/Host 20 (Total bandwidth: 80 M) Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS Browser IE: IE9 and later Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Client IOS; Android Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Port Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 1 channel in: 5mA 3V–5 VDC Alarm Output 1 channel out: 300mA 12 VDC Power Power Supply 12 VDC (±30%)/PoE (802.3af)/ePoE Power Consumption Basic: 3.6 W (12 VDC); 5 W (PoE) Max. (H.265 + 3 streams + intelligence + LED): 7.9 W (12 VDC); 9.6 W (PoE) Environment Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F) Protection Grade IP67 Structure Casing Metal Dimensions ?122 mm × 119.7 mm (?4.80" × 4.71" ) Net Weight 0.74kg(1.63lb) Gross Weight 0.96kg(2.12lb)
