Ergotron 45-478-216

Ergotron 45-478-216 HX Wall Monitor Arm White

A white HX wall arm for one monitor or TV up to 42 inches, supporting 9.07 to 19.05 kg with Constant Force positioning.

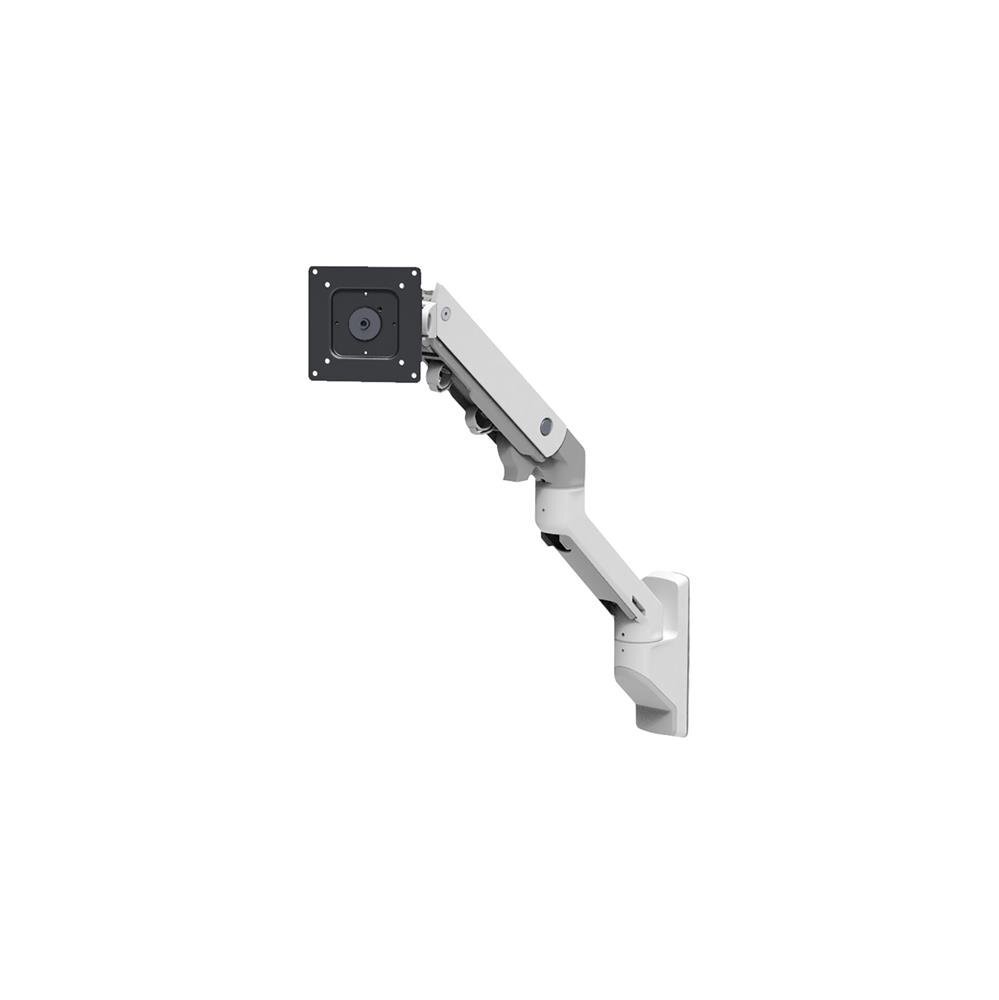

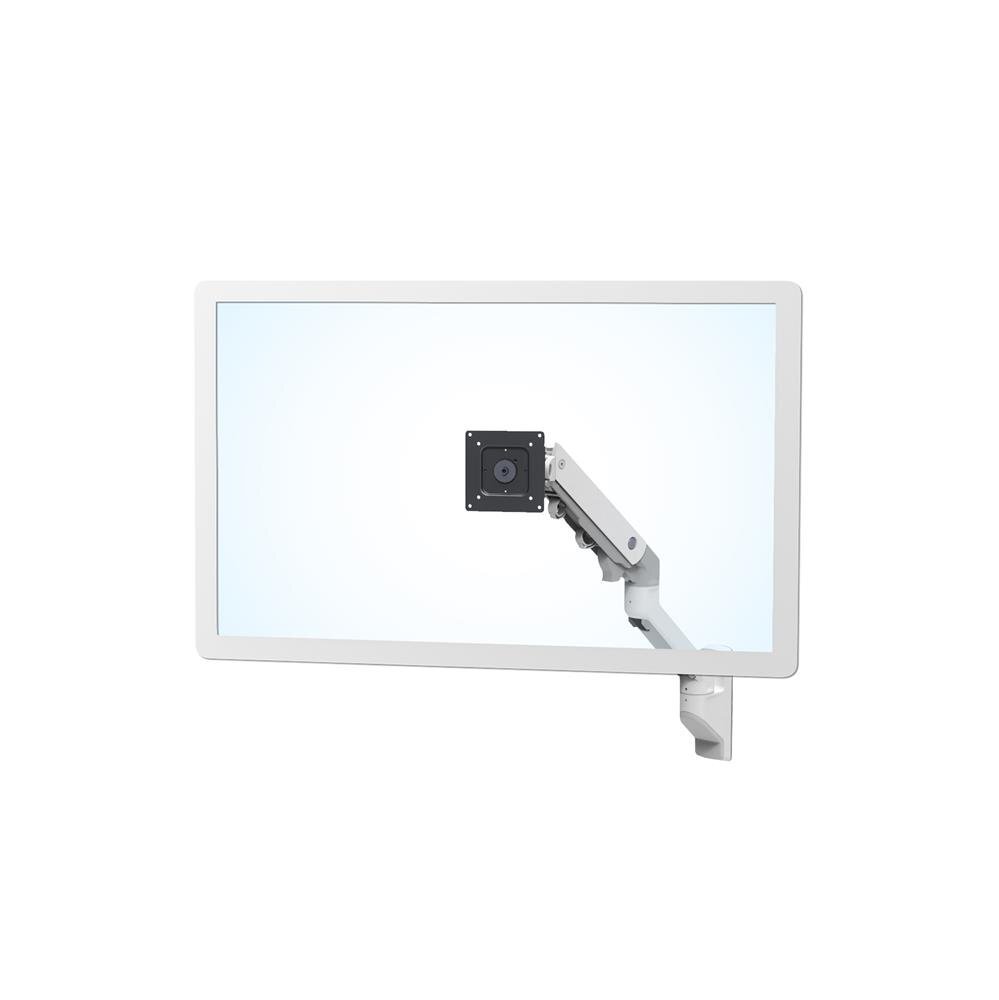

Ergotron 45-478-216 HX white wall monitor arm

Maximum screen size42 inches

Load range9.07 to 19.05 kg

MountingWall mounted

ColourWhite

Product overview

The Ergotron HX Wall Monitor Arm provides wall-mounted support for a compatible large or heavy display. Constant Force technology supports movement, while the supplied arm, extension, pivot, wall-mount components and hardware form a complete single-display mounting kit.

Important product details

The supplied VESA patterns are 75 × 75, 100 × 100, 200 × 100 and 200 × 200 mm.
An optional HX monitor bow kit is referenced in the supplied description; it is not listed as included.

Australian manufacturer warranty

DeviceDeal is an authorised reseller. This Australian-version Ergotron product is covered by a 10-year limited manufacturer warranty in Australia.

Frequently asked questions

What screen size does the Ergotron 45-478-216 support?

The supplied maximum screen size is 42 inches.

What load range is supported?

The supplied load range is 9.07 to 19.05 kg.

Which VESA patterns are supported?

The supplied patterns are 75 × 75, 100 × 100, 200 × 100 and 200 × 200 mm.

What is included in the package?

The package includes the arm, extension, pivot, wall mount and mounting hardware.

What warranty applies to the 45-478-216?

This Australian-version product is covered by a 10-year limited Ergotron manufacturer warranty in Australia and is supplied by authorised reseller DeviceDeal.

(45-478-216)

Features and highlights

Ergotron 45-478-216 HX Wall Monitor Arm White

A white HX wall arm for one compatible large-format monitor or TV within the supplied size and load range.

42-inch display supportSupports one compatible monitor or TV up to 42 inches.

Heavy-display rangeSupports 9.07 to 19.05 kg.

Constant Force technologySupports smooth display repositioning.

Wall-mounted formatMoves the display support from the desk to the wall.

Four VESA patternsSupports four supplied monitor and TV mounting patterns.

Complete mounting kitIncludes the arm, extension, pivot, wall mount and hardware.

Key highlights

White finish
One-monitor or TV configuration
17.8 × 48.8 × 30.5 cm supplied dimensions
BIFMA Level 2 certification listed
Australian-version product with a 10-year limited Ergotron manufacturer warranty, supplied by authorised reseller DeviceDeal

Specifications Ergotron 45-478-216 HX Wall Monitor Arm White

SKU: 45-478-216

General information

Brand	Ergotron
Manufacturer part number	45-478-216
Product line	HX
Product name	HX Wall Monitor Arm
Product type	Wall monitor arm

Display support

Number of displays	1
Maximum screen size supported	42 in
Minimum load capacity	9.07 kg
Maximum load capacity	19.05 kg
Device supported	Monitor; TV

Mounting and physical characteristics

VESA standards	75 × 75; 100 × 100; 200 × 100; 200 × 200 mm
Height	17.8 cm
Width	48.8 cm
Depth	30.5 cm
Product colour	White

Package, certification and warranty

Package contents	Arm; Extension; Pivot; Wall Mount; Mounting Hardware
Motion technology	Constant Force
Optional accessory	HX monitor bow kit
Certification	BIFMA Level 2
Limited warranty	10 Year

SKU	45-478-216
Barcode #	698833054521
Brand	ERGOTRON
Shipping Weight	6.1600kg
Shipping Width	0.018m
Shipping Height	0.048m
Shipping Length	0.024m

10-year manufacturer warranty

Australian manufacturer warranty

DeviceDeal is an authorised reseller, and this Australian-version Ergotron 45-478-216 is covered by a 10-year limited manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to Ergotron warranty terms, eligibility requirements and product assessment.
