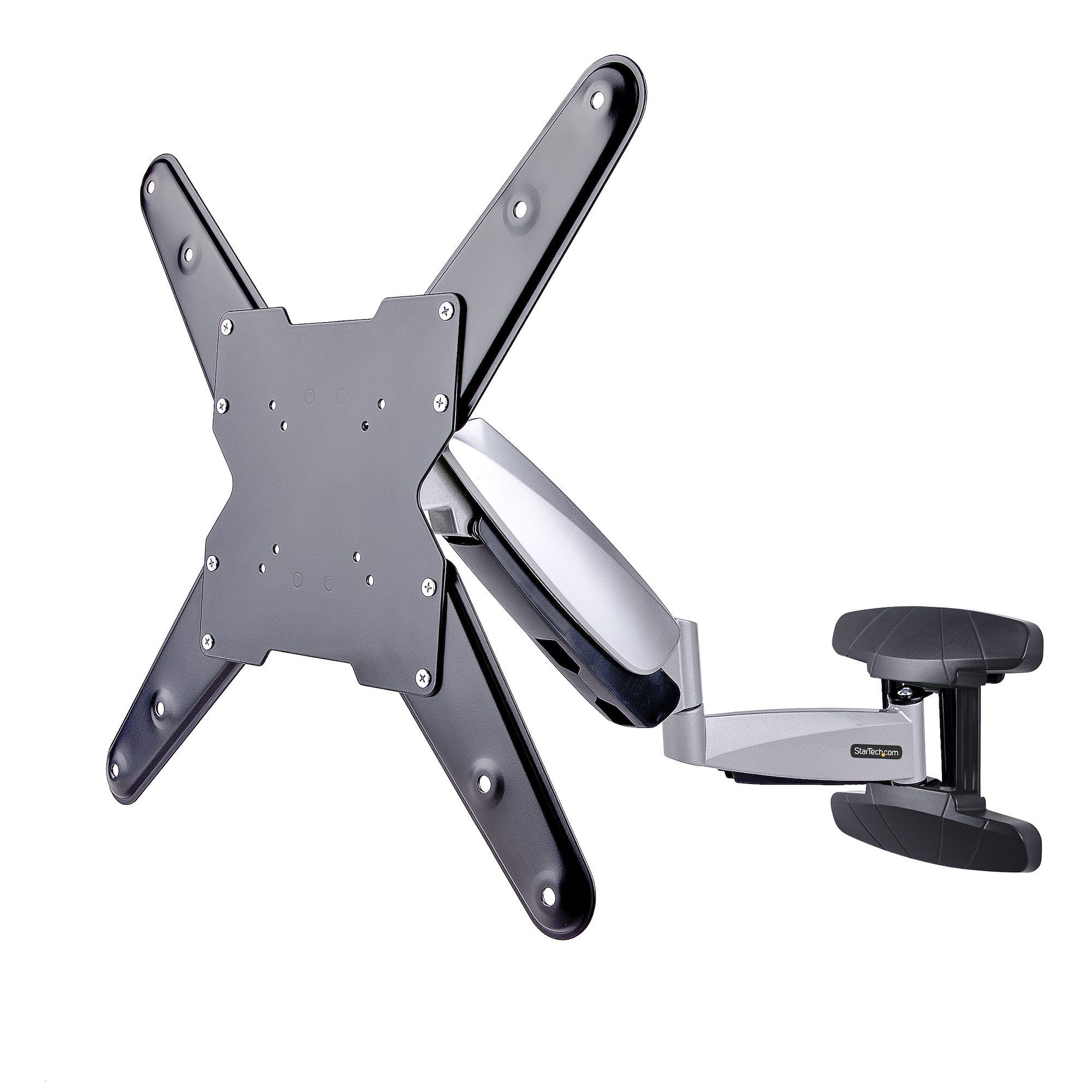

STARTECH.COM | FHA-TV-WALL-MOUNT

Full-Motion Height-Adjustable TV Wall Mount for 2355in Displays

Mount one flat, curved or ultrawide display from 23 to 55 inches and 8 to 30kg with spring-assisted height and full-motion adjustment.

2355in, 830kg support

Supports one display from 23 to 55 inches with a required weight between 8kg and 30kg.

Full-motion positioning

Provides ±90° swivel, +8°/-15° tilt, ±3° rotation and up to 32cm of spring-assisted height adjustment.

VESA 75×75 to 400×400

Includes mounting hardware for the listed VESA patterns and installation on a suitable wood stud or concrete wall.

What to know

The display must weigh at least 8kg and no more than 30kg, and its VESA pattern must match the supported list. Wall structure and fixings must be suitable for the total installed load; professional installation may be required under local rules.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 2-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

Which display sizes fit FHA-TV-WALL-MOUNT?

It supports one display from 23 to 55 inches.

What display weight does FHA-TV-WALL-MOUNT support?

The display must weigh at least 8kg and no more than 30kg.

Which VESA patterns does FHA-TV-WALL-MOUNT support?

It supports 75×75, 100×100, 200×100, 200×200, 300×300, 400×200 and 400×400mm.

How can FHA-TV-WALL-MOUNT be adjusted?

It provides ±90° swivel, +8°/-15° tilt, ±3° rotation and up to 32cm spring-assisted height adjustment.

How far does FHA-TV-WALL-MOUNT extend from the wall?

It sits approximately 5.8cm from the wall when folded and reaches up to 59.5cm.

Can FHA-TV-WALL-MOUNT hold a curved TV?

Yes, provided the display meets the supported size, weight and VESA requirements.

What wall types are supported?

The supplied hardware supports installation on a suitable wood stud or concrete wall when installed correctly.

What warranty applies to FHA-TV-WALL-MOUNT?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 2-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(FHA-TV-WALL-MOUNT)

Features and highlights

Supports one 2355in flat, curved or ultrawide display
Minimum display weight 8kg; maximum 30kg
VESA 75×75, 100×100, 200×100, 200×200, 300×300, 400×200 and 400×400
Spring-assisted height adjustment up to 32cm
Display swivel ±90°
Display tilt +8° / -15°
Display rotation ±3°
Folds to approximately 5.8cm from the wall and reaches up to 59.5cm
Built-in cable management and mounting hardware included
2-year StarTech.com manufacturer warranty

Compatibility check: Check display size, 830kg weight, exact VESA pattern and wall construction before installation. Use the correct supplied hardware for a suitable wood-stud or concrete wall and follow local safety requirements.

Specifications

Product type	Single-display full-motion TV wall mount
Supported display size	2355in
Weight capacity	Minimum 8kg; maximum 30kg
Supported display types	Flat, curved and ultrawide displays
VESA patterns	75×75; 100×100; 200×100; 200×200; 300×300; 400×200; 400×400mm
Display swivel	±90° / 180° total
Display tilt	+8° / -15°
Display rotation	±3°
Height adjustment	Spring assisted; up to 32cm
Distance from wall	Approximately 5.8cm minimum to 59.5cm maximum
Current official lateral range	Up to 1.19m; supplied DeviceDeal description lists 1.08m
Cable management	Integrated
Wall types	Suitable wood-stud or concrete wall using the included hardware
Construction	Steel and aluminium; black and silver finish
Product dimensions	Approximately 59.5 × 45 × 45cm
Product weight	Approximately 4.8kg
Included hardware	Mount assembly, VESA plates, M5/M6/M8 display screws, washers, spacers, wall hardware, bubble level and manual
Compliance	TAA compliant
Warranty	2-year StarTech.com manufacturer warranty

SKU	FHA-TV-WALL-MOUNT
Barcode #	65030895149
Brand	STARTECH
Shipping Weight	6.6000kg
Shipping Width	0.510m
Shipping Height	0.110m
Shipping Length	0.630m

Warranty and Australian supply

FHA-TV-WALL-MOUNT is supplied by DeviceDeal as an Australian-market product and carries the official 2-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
