Brateck · LDA30-114

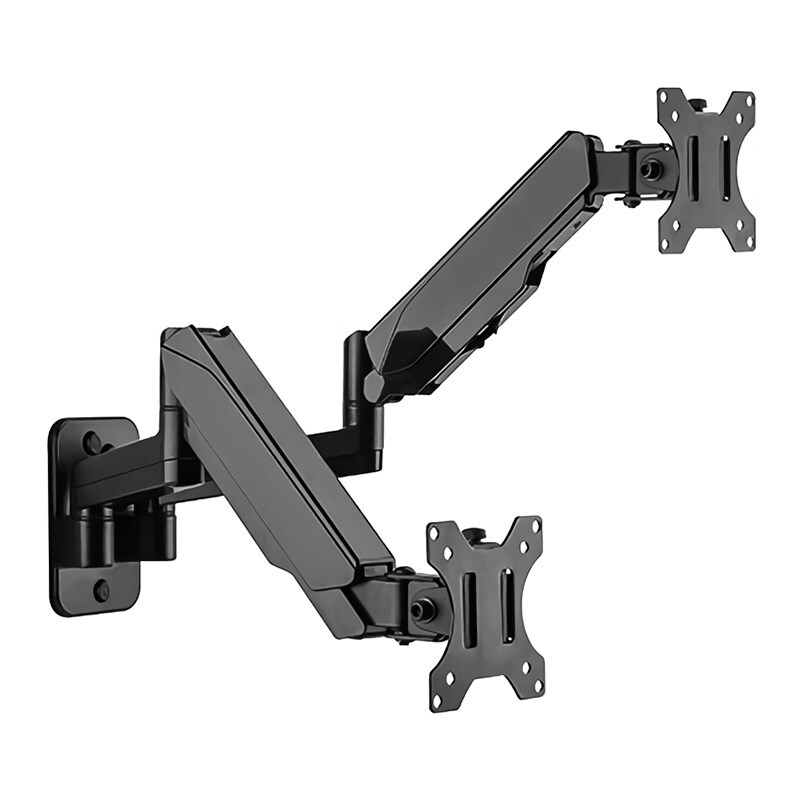

Brateck LDA30-114 Dual Wall-Mounted Gas-Spring Monitor Arm

A wall-mounted gas-spring arm for two 17-inch to 32-inch monitors, including curved screens, with 18 kg capacity per screen and full-motion adjustment.

Two 1732-inch monitors18 kg per screen422 mm arm extension

Brateck LDA30-114 dual wall-mounted gas-spring monitor arm

Product highlights

Dual-screen wall mount

Supports two monitors on a wall-mounted arm system.

Gas-spring positioning

Built-in gas springs support smooth and accurate adjustment for comfortable viewing positions.

Full-motion adjustment

Tilt, swivel and screen rotation provide flexible monitor positioning.

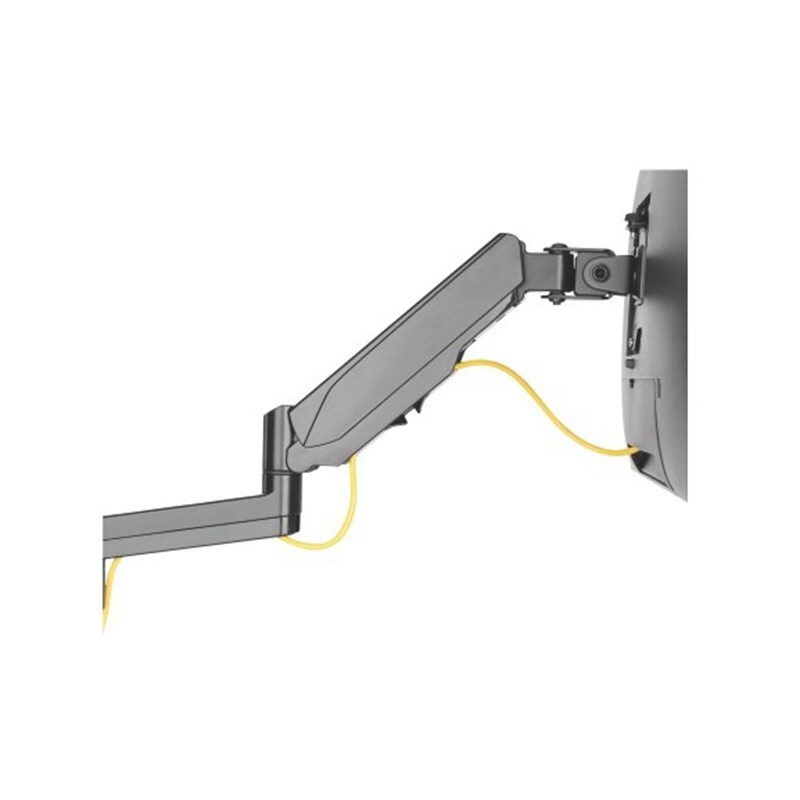

Quick-release and cable management

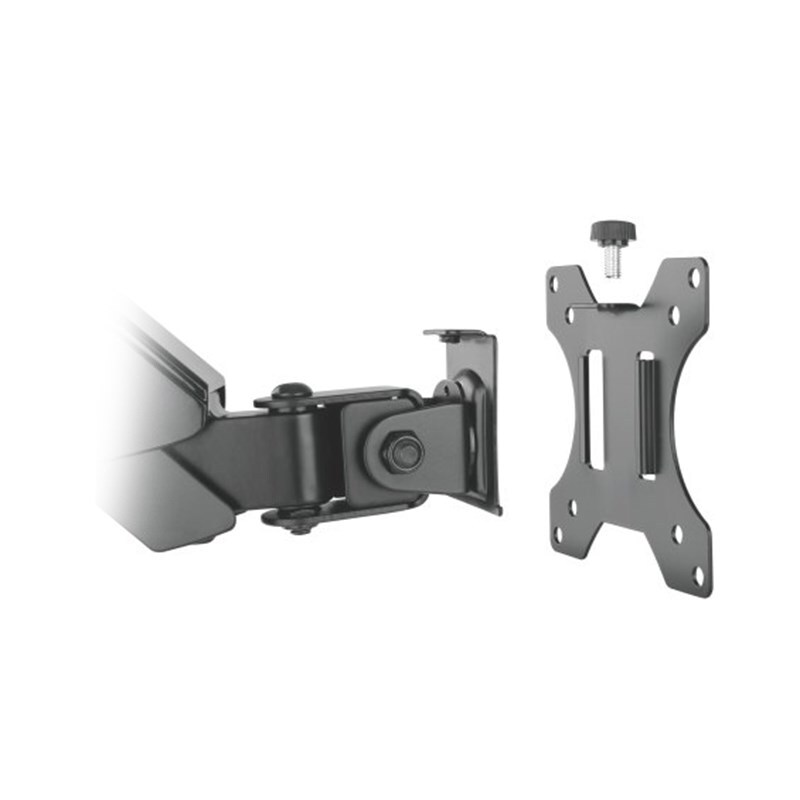

Quick-release VESA plates support installation, while integrated cable management organises cords.

Australian warranty confidence

Purchase from an authorised reseller

DeviceDeal is an authorised reseller of Brateck products. This product is supplied with the stated 12 months limited warranty and manufacturer warranty coverage in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to the manufacturer's terms, eligibility requirements and product assessment.

Frequently asked questions

How many monitors does the Brateck LDA30-114 support?

It supports two monitors from 17 inches to 32 inches, including curved monitors.

What is the capacity per screen?

Each screen has a supplied weight-capacity range of 18 kg (2.217.6 lb).

Which adjustments are available?

Each arm provides tilt, swivel, screen rotation and up to 422 mm full extension.

Does it include cable management?

Yes. Integrated cable management is included.

What warranty is supplied?

DeviceDeal is an authorised Brateck reseller, and the supplied source states a 12 Months Limited Warranty.

(LDA30-114)

Features and highlights

Dual-screen support

Fits two 17-inch to 32-inch monitors, including curved monitors.

Per-screen capacity

18 kg (2.217.6 lb).

VESA support

75 × 75 mm and 100 × 100 mm.

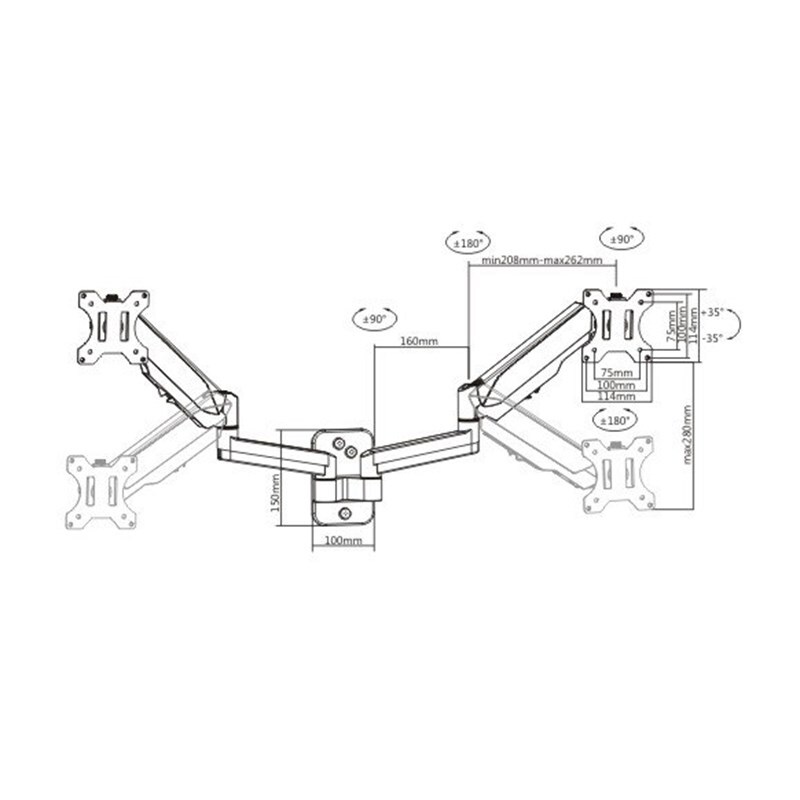

Adjustment ranges

Tilt +35° to -35°; swivel +90° to -90°; screen rotation +180° to -180°.

Arm extension

Up to 422 mm (16.6 inches).

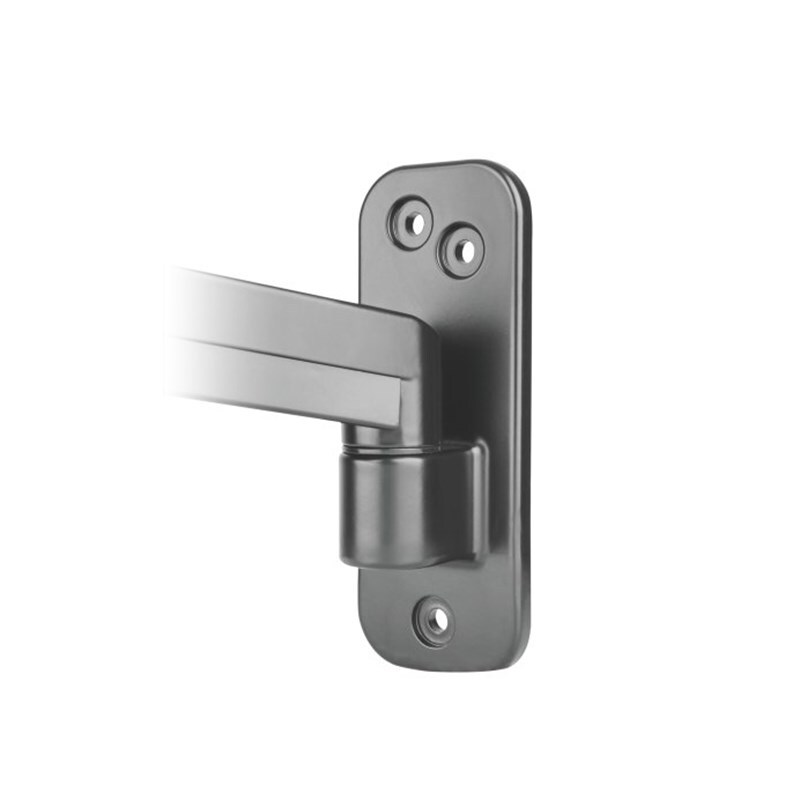

Installation features

Wall-mounted design, quick-release VESA plates and integrated cable management.

Technical specifications

Product details

Brand	Brateck
Model	LDA30-114
Product category	Gas-spring monitor arm
Rank	Standard
Materials	Aluminium; plastic
Surface finish	Powder coating
Colour	Matte black; metallic grey

Display support

Screen quantity	2
Screen size	1732 inches
Curved-monitor support	Yes
Weight capacity per screen	18 kg (2.217.6 lb)
VESA compatibility	75 × 75 mm; 100 × 100 mm

Adjustment

Tilt range	+35° to -35°
Swivel range	+90° to -90°
Screen rotation	+180° to -180°
Full arm extension	422 mm (16.6 inches)
Profile	Minimum 99 mm (3.9 inches)

Physical and installation

Dimensions	924 × 100 × 386 mm (36.4 × 3.9 × 15.2 inches)
Installation	Wall mounted
Quick-release VESA plate	Yes
Cable management	Yes

Package and other information

Accessory kit package	Normal / ziplock polybag; compartment polybag
Instruction manual included	Yes
Power plug included	No
Anti-theft	No
Magnetic	No
Lithium battery	No

Warranty

Warranty	12 Months Limited Warranty

SKU	LDA30-114
Barcode #	6956745159555
Brand	Brateck
Shipping Weight	8.0000kg
Shipping Width	0.100m
Shipping Height	0.390m
Shipping Length	0.920m
Shipping Cubic	0.035666000m3

Warranty information

12 Months Limited Warranty

DeviceDeal is an authorised reseller of Brateck products. Brateck LDA30-114 Dual Wall-Mounted Gas-Spring Monitor Arm is supplied with the stated 12 months limited warranty and manufacturer warranty coverage in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims remain subject to the manufacturer's warranty terms, eligibility requirements and product assessment.
