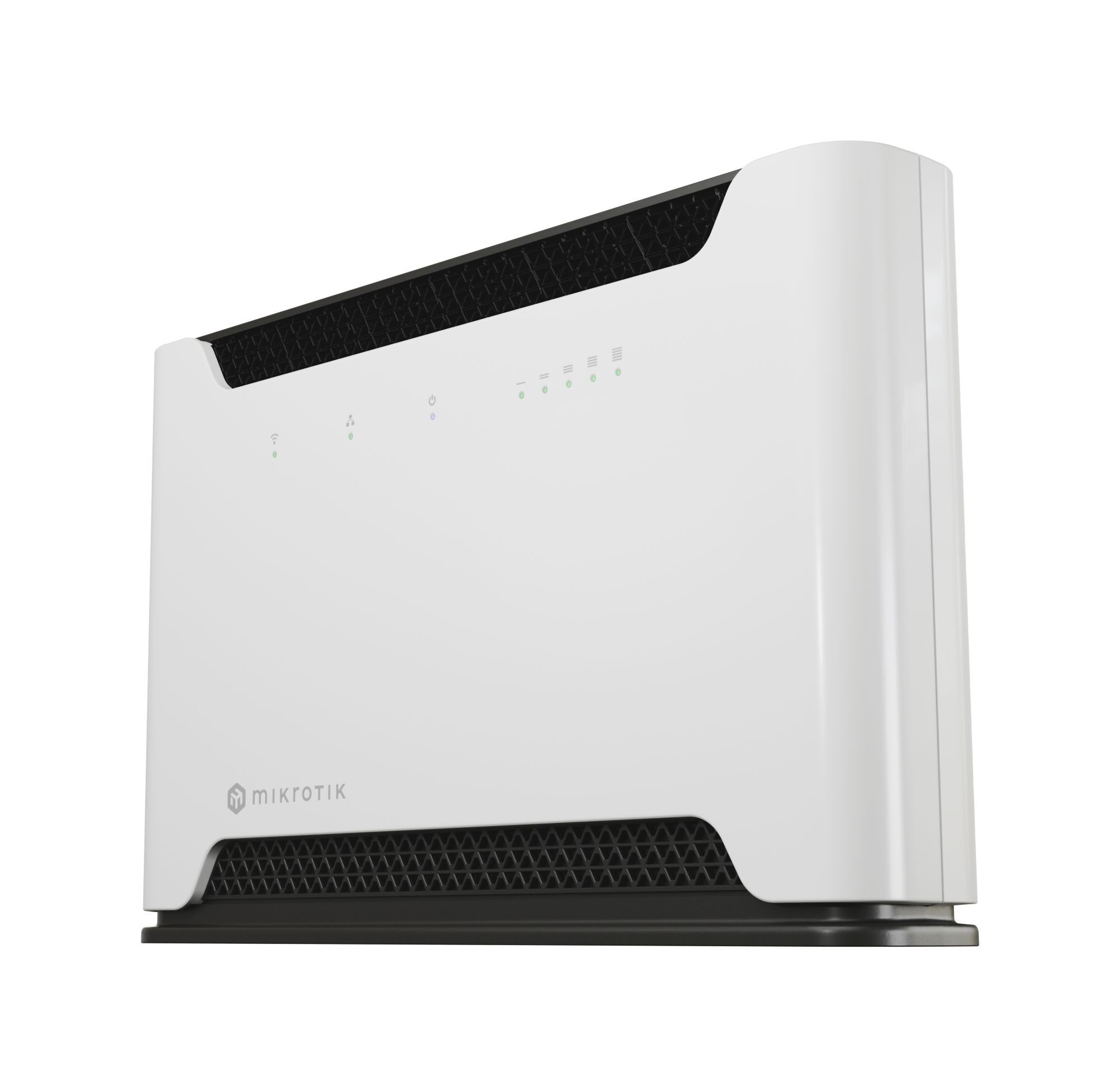

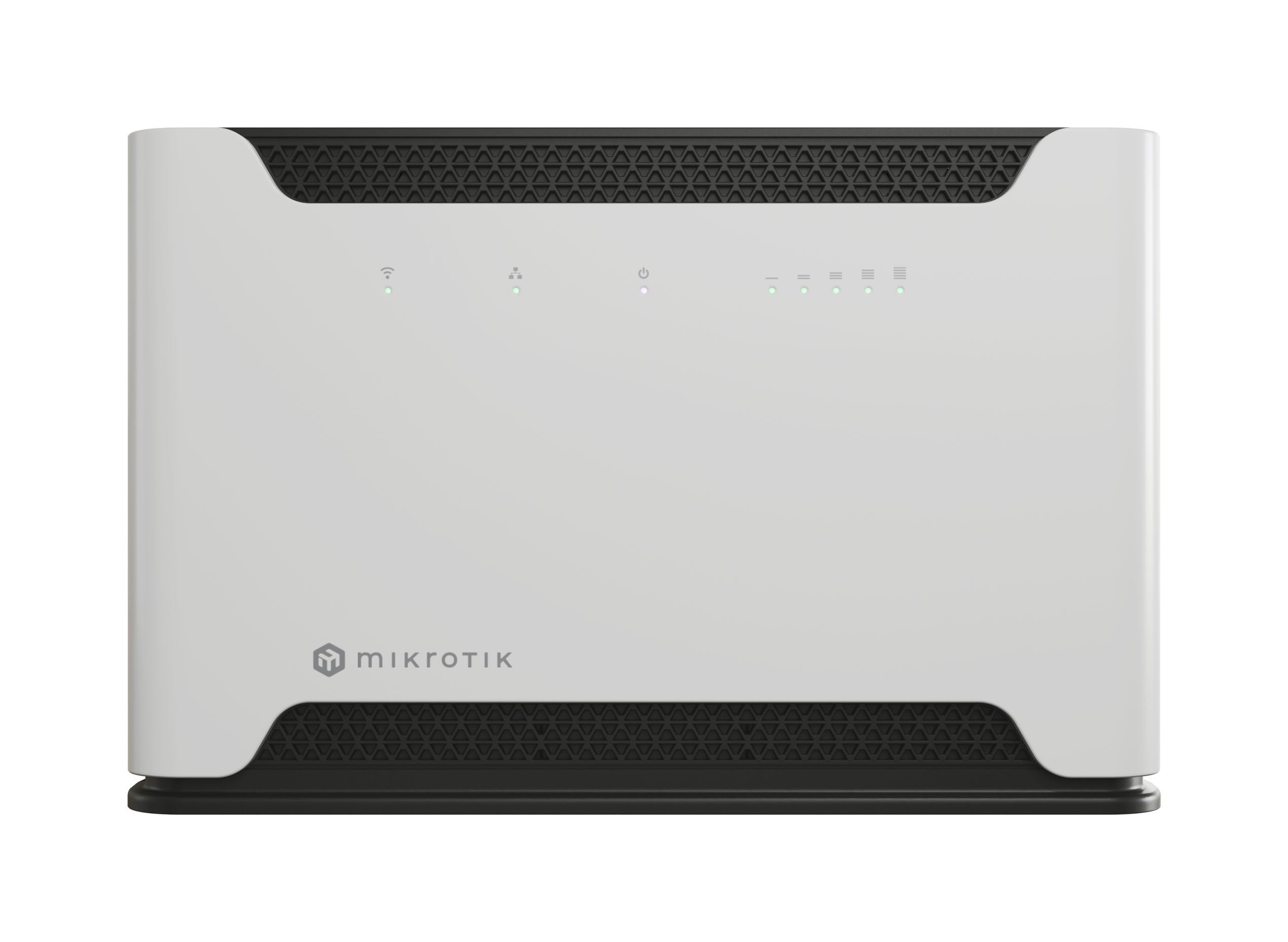

MikroTik D53G-5HacD2HnD-TC&EG120K-EA Chateau LTE12 (2025) AP with LTE Modem

Remove the bottleneck in your mobile internet setup

Are you tired of ISP or operator-issued routers that limit your speed and coverage? Chateau LTE12 is the solution, delivering faster, more reliable mobile internet, whether you are in the city or the countryside. With carrier aggregation and expanded 4x4 MIMO support, you’ll experience:

Faster speeds in crowded areas
More stable connections in remote locations
Wider coverage across multiple LTE bands

New and improved LTE connectivity

Upgraded LTE12 modem for stronger, reliable connections.
Expanded 4x4 MIMO support on more bands: 1 / 3 / 7 / 38 / 40 / 41
Dual-band Wi-Fi for seamless performance across all devices
Now with B32 support for improved LTE performance in supported regions!

Built for homes and businesses

5x Gigabit Ethernet ports to connect media servers, PC towers, TVs, or smart home systems.
Dual-band Wi-Fi (2.4 GHz & 5 GHz) ensures stable connections for all your devices.

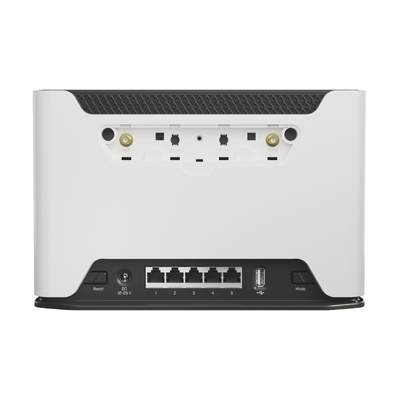

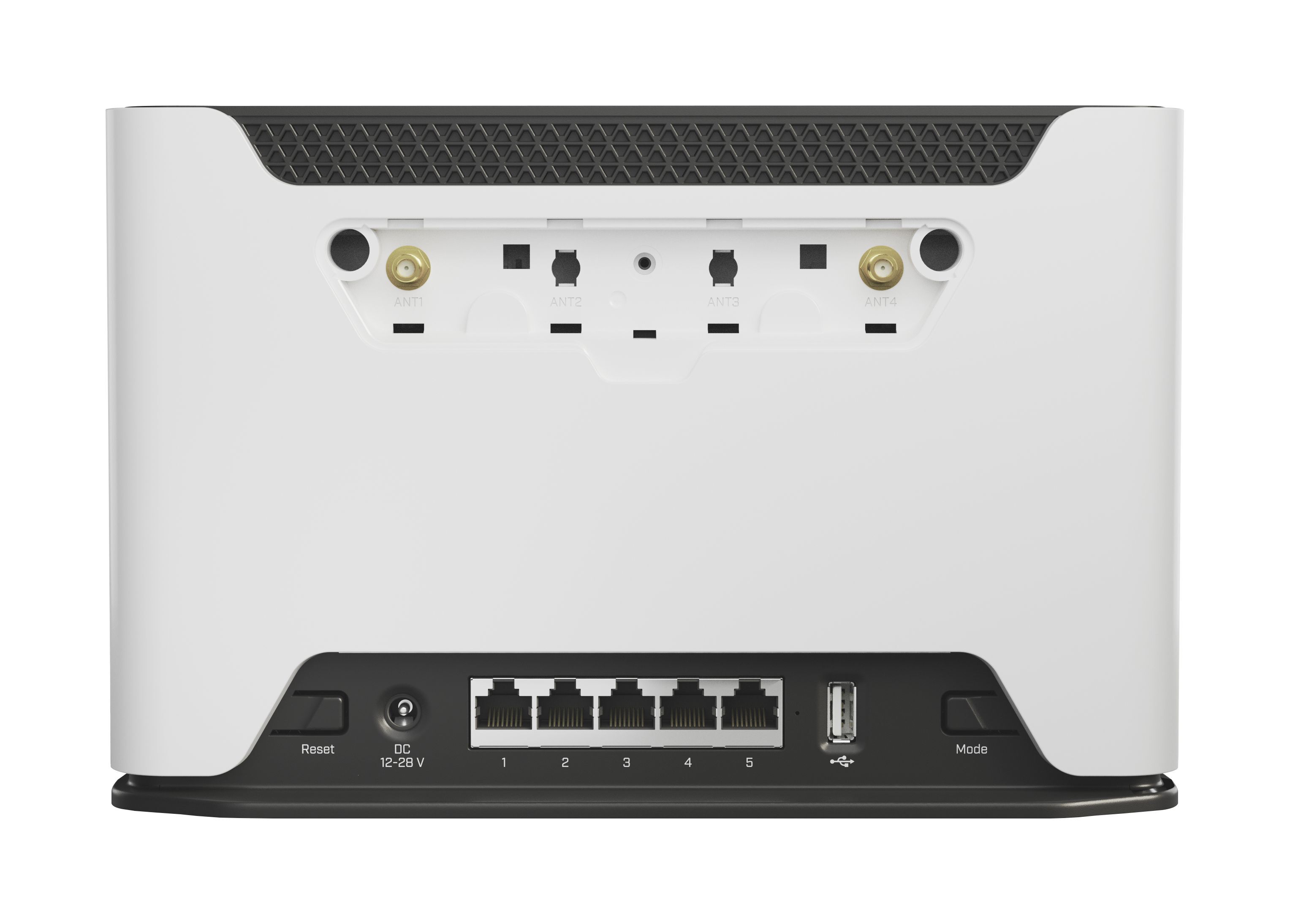

External LTE antenna support (SMA female ports) to boost signal strength in tricky signal areas.
RouterOS for advanced security, VPNs, and full network control.

Stay ahead of connectivity challenges with the improved Chateau LTE12. Powerful, secure, and designed to keep you connected—anytime, anywhere!

(D53G-5HacD2HnD-TCEG120K)

Details
Product code	D53G-5HacD2HnD-TC&EG120K-EA
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	448-896 (auto) MHz
Switch chip model	IPQ-4019
RouterOS license	4
Size of RAM	256 MB
Storage size	32 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 70°C
IPsec hardware acceleration	Yes

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	24 W
Max power consumption without attachments	18 W
Cooling type	Passive

Mobile

Details
3G Category	R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	12 (600Mbps Downlink, 150Mbps Uplink)
MIMO DL	4x4
MIMO UL	1x1
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands	40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz)
TAC	86642205

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	IPQ-4019
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	4
Wireless 5 GHz chip model	IPQ-4019
Wireless 5 GHz generation	Wi-Fi 5
