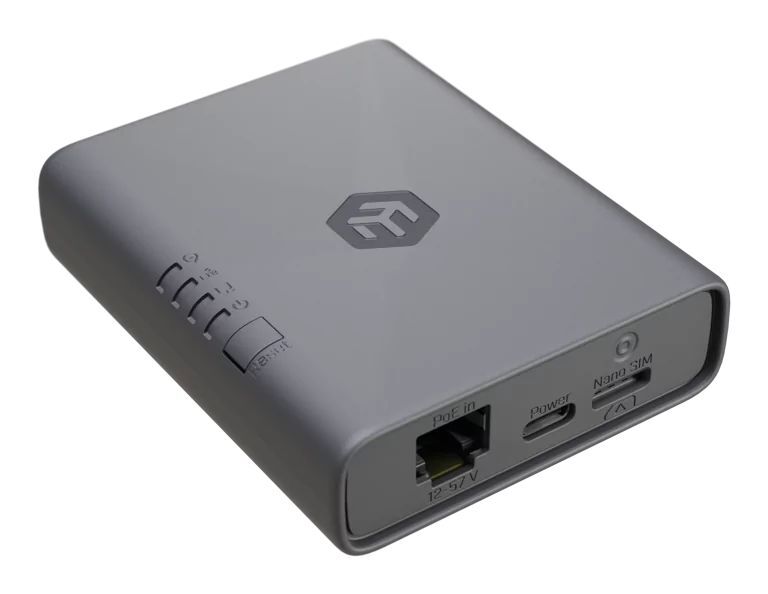

MikroTik KNOT Embedded LTE4 Industrial Gateway
LTE Cat4 | BLE & GNSS Support | DIN Rail Mountable | Model: EC25-EU&Kne

Unlock versatile industrial connectivity with the MikroTik KNOT Embedded LTE4. Originally designed for the specific demands of coffee and vending machines, this compact gateway is a perfect fit for all types of industrial automation. It delivers reliable LTE Cat4 mobile connectivity, Bluetooth for IoT sensors, and GNSS support in a tiny but powerful package. Powered by an ARM Cortex A7 processor and RouterOS v7, the KNOT fits into tight spaces, mounts directly to a DIN rail, and acts as a robust platform for integrators, automation specialists, and IoT system builders.

Main Features
  • Industrial LTE Cat4: Provides high-speed mobile backhaul for primary connectivity or as a reliable backup link for Ethernet devices.
  • Integrated Bluetooth & GNSS: Acts as an IoT gateway for BLE sensors and beacons while providing precise tracking for assets and vehicles.

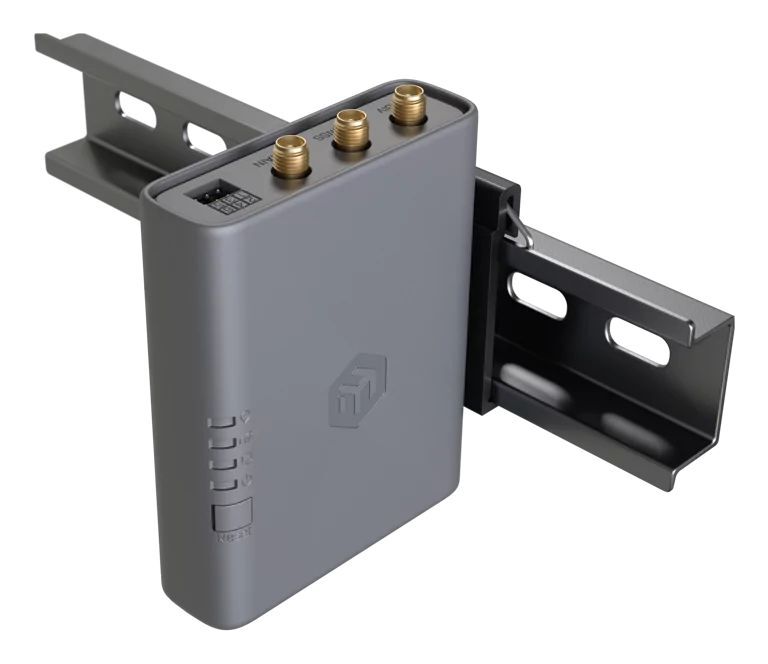

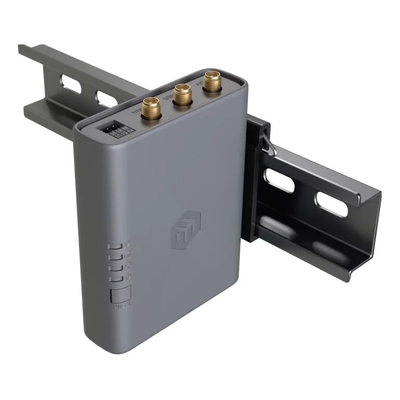

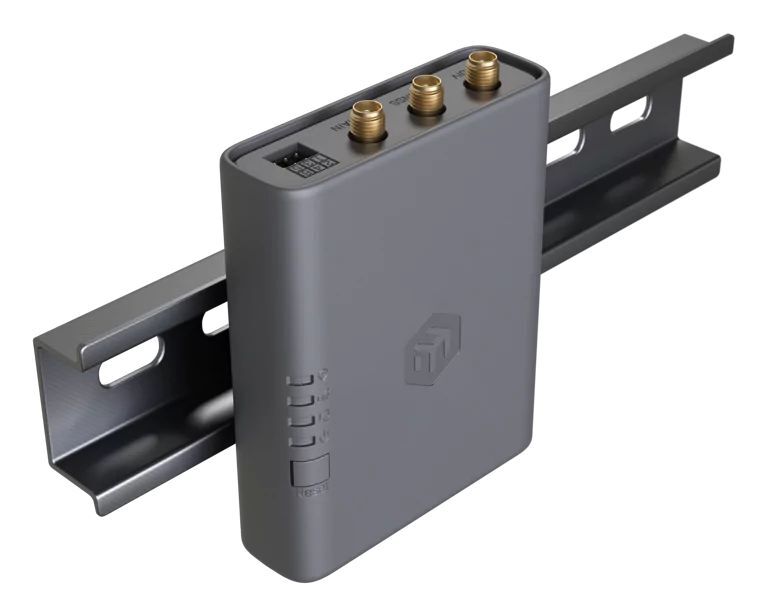

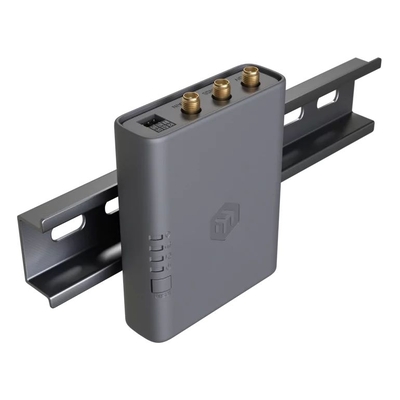

  • Compact Industrial Design: Specifically engineered to fit into restricted spaces and industrial automation cabinets via standard DIN rail mounting.
  • Advanced Dual SIM: Supports both eSIM and Nano SIM for maximum carrier flexibility and network redundancy.
Technical Specs
  • Processor: ARM 32-bit Cortex A7 (Up to 1.2 GHz)
  • Memory: 256 MB RAM
  • Operating System: RouterOS v7 (License Level 3)
  • Interface: Gigabit Ethernet, GPIO, 2x2 MIMO, PoE-In
  • Connectivity: LTE Cat4, Bluetooth, GNSS/GPS
  • Mounting: DIN Rail Support included
Versatile Integration for Harsh Environments
The MikroTik KNOT Embedded LTE4 is built for environments where reliability is critical and space is at a premium. It is widely used in smart city infrastructure for parking and metering, utility monitoring, and retail kiosks. Whether used as a data collection node for environmental sensors or a secure payment terminal gateway, the KNOT adapts easily to your needs. The unit requires external antennas, allowing you to customize the hardware to match your specific signal environment and ensure peak performance in any industrial automation application.

(EC25-EUKNe)

Detailed Specifications: EC25-EU&KNe
System Architecture & Performance
CPU
ARM 32-bit Cortex A7 (1 Core)
Nominal Frequency
1200 MHz
Memory (RAM)
256 MB
Storage
512 MB NAND
Operating System
RouterOS v7 (License level 3)
Mobile Connectivity
LTE Category
Category 4 (150Mbps DL / 50Mbps UL)
LTE FDD Bands
1, 3, 7, 8, 20, 28A
LTE TDD Bands
38, 40, 41
3G / 2G
3G R8 (42.2Mbps DL) | 2G Class12
SIM Slots
1x Nano SIM + eSIM Support
Powering & Ethernet
Ethernet Ports
1x 10/100/1000 Mbps (Gigabit)
PoE Input
802.3af/at (12-57 V)
DC Input
PoE-IN or USB-C (5 V)
Power Consumption
Max 7 W
Physical & Peripherals
Operating Temp.
-40°C to 70°C
Wireless Peripherals
Bluetooth 5.1
GPS Connection
SMA RF connector
Cooling
Passive Cooling
Certifications & Extras
Compliance
CE, EAC, ROHS | IP20 Rating
Included Accessories
K-91 Fastening set, 5V 0.8A Power Adapter
SKU EC25-EUKNe
Brand MIKROTIK
Shipping Weight 1.0000kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

MikroTik EC25-EU&KNe KNOT Embedded LTE4 ARM 32-bit Cortex A7 up to 1.2 GHz 256 MB RAM

Model # EC25-EU&KNe

  • SKU: EC25-EUKNe

$107.00
In Stock
