Directional outdoor connectivity
The lightweight grid antenna reduces wind loading, while the enclosure and heat sink support outdoor operation across a tested -40°C to 70°C temperature range. IP54 protection is specified.

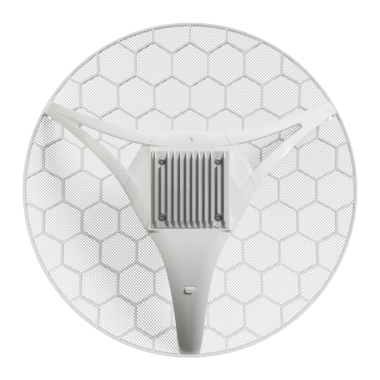

MikroTik LHGG LTE7 Outdoor LTE Cat 7 Kit with 17 dBi Directional Antenna
-
SKU: LHGGRR11e-LTE7
- Pick Up Available
- Australian Warranty
- Checkout Securely
MikroTik LHGG LTE7 Outdoor LTE Cat 7 Kit with 17 dBi Directional Antenna
The MikroTik LHGG LTE7 kit is designed for last-mile mobile internet in remote locations. Its LTE Category 7 modem supports up to 300 Mbps download and 100 Mbps upload, paired with a 17 dBi directional antenna for pole or mast installations.
Ethernet and RouterOS
A Gigabit Ethernet port carries data and accepts 802.3af/at PoE input at 1257 V. RouterOS v7 runs on a dual-core 800 MHz ARM processor with 256 MB of RAM. The device has one Micro SIM slot.
Product video
(LHGGRR11e-LTE7)
Features
- LTE Category 7 modem, up to 300 Mbps download and 100 Mbps upload
- 17 dBi directional grid antenna
- Outdoor pole or mast installation
- One Gigabit Ethernet port
- 802.3af/at PoE input, 1257 V
- RouterOS v7 and 256 MB RAM
- IP54 enclosure with -40°C to 70°C tested ambient range
Specifications
Product specifications
| Product code | LHGGR&R11e-LTE7 |
|---|---|
| Architecture | ARM 64bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Number of DC inputs | 1 (PoE-IN) |
|---|---|
| Max power consumption | 8 W |
| Max power consumption without attachments | 8 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
Ethernet
| 10/100/1000 Ethernet ports | 1 |
|---|
Peripherals
| Number of SIM slots | 1 Modem (Micro SIM) |
|---|---|
| MiniPCI-e slots | 1 |
Certification & Approvals
| Certification | CE, EAC, ROHS |
|---|---|
| IP | 54 |
Mobile
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
|---|---|
| 3G bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz) |
| MIMO DL | 2x2 |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) |
| TAC | 35312597 |
Other
| Mode button | Yes |
|---|
Additional product details
| LTE antenna gain | 17 dBi |
|---|---|
| Antenna design | Directional grid |
| Mounting | Pole or mast |
| SKU | LHGGRR11e-LTE7 |
| Brand | MIKROTIK |
| Shipping Weight | 3.0000kg |
Warranty assistance
For warranty assistance, contact DeviceDeal and quote product SKU LHGGR&R11e-LTE7.
