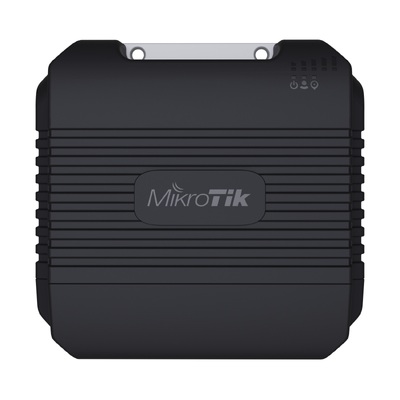

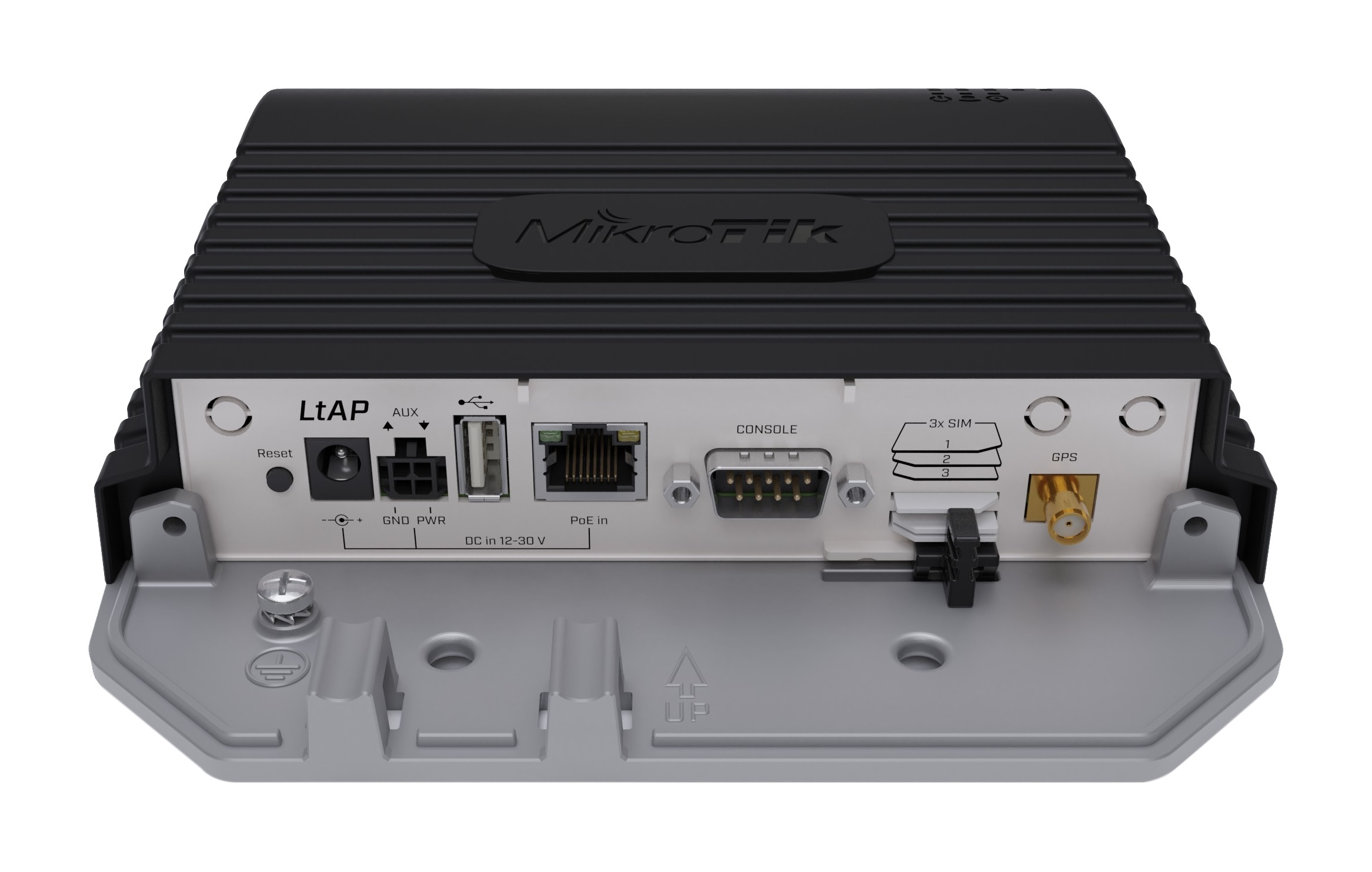

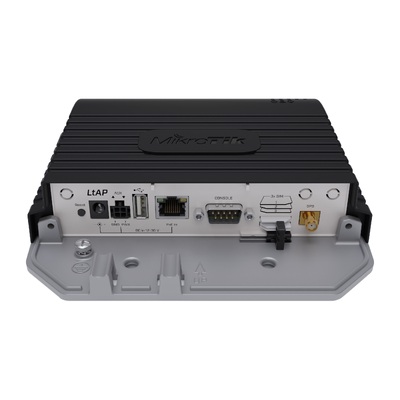

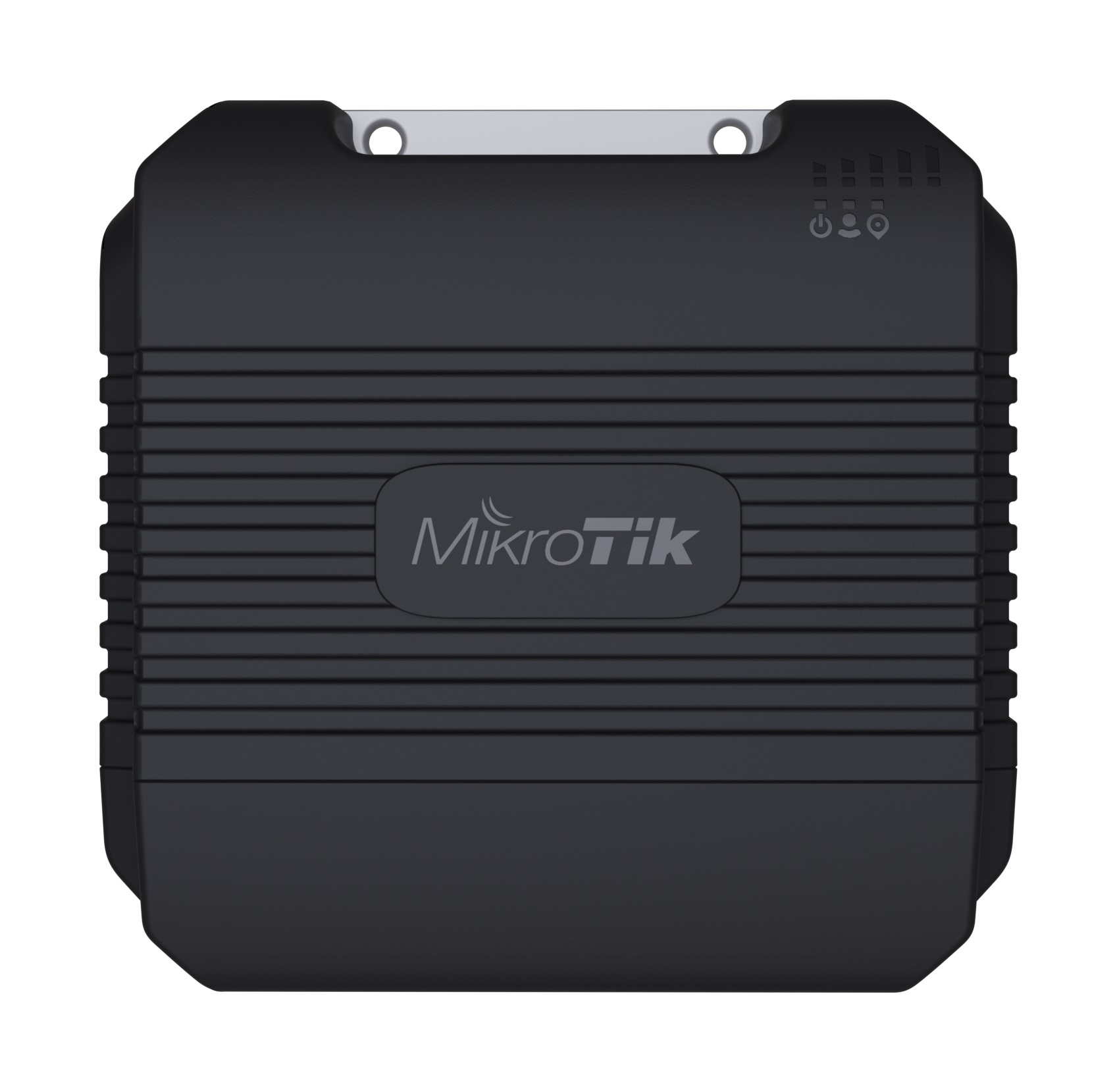

MIKROTIK LtAP-2HnD&FG621-EA&LR8 LtAP LR8 LTE6 kit compact all-in-one solution with LTE

LtAP LR8 LTE6 kitA compact all-in-one solution with LTE, GPS and wireless support for LoRa® in a rugged heavy-duty case. Now with a brand new CAT6 LTE modem for higher speeds and a better price!

Inside the heavy-duty case, there is a powerful 2.4 GHz wireless access point with a Gigabit Ethernet port, built-in GPS and two internal LTE antennas. There are two miniPCIe slots – one is used for the LTE modem, the other one is populated with the concentrator gateway card for LoRa® technology.

This upgraded edition comes with a brand new CAT6 LTE modem that brings the mobile internet speed up while bringing the price of the LtAP down! It also enables carrier aggregation, allowing the device to use multiple bands at the same time. That means - better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6!

There are three powering options: DC jack, PoE-in and automotive. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day!

Internet-of-things has never been so affordable



To fully understand what this device can do, we need to talk about Internet-of-things. Let’s start with an example. Imagine a farmer who has cattle, an irrigation system for the crops, and storage for the goods. On a day-to-day basis he needs to:

• track the animals;

• monitor the grain stock level;

• control the irrigation system

For all these tasks the farmer can use low-cost wireless sensors. By connecting them to the LtAP - he can gather the real-time data, combine it with the location information of the vehicle, and send it to the cloud via high-speed LTE. Now all the information he needs to monitor and plan the growth of his farms is in one place. So simple and so handy. The wireless technology behind this is called LoRa®, which stands for Long Range. It requires very low power. That’s why LoRa® is the best way to build your Internet-of-things solutions. LoRa® can be used for anything from smart homes to agriculture, supply chains, logistics and even smart cities. Monitor parking spaces, track utility services, measure environmental data and so on - the possibilities are endless.

There is even a free server infrastructure that you can use - The Things Network, fully supported by the LtAP LR8 LTE kit. With a large community of enthusiasts and developers around the world, you will never be alone with your questions regarding the LoRa® network.

Perfect for logistics and tracking

There are 3 MiniSIM slots you can use to set up automatic switching between mobile operators. Very convenient if you have to cross the border regularly. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same goes for the GPS – you can attach an external antenna as well. By the way, we have provided a simple application example on the RouterOS documentation website, so you can start real-time location tracking right away!

The Things Network

Our products for LoRa® are ready to work with “The Things Network” - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internetof- things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.

The setup is so easy - anyone can learn it. No need to reinvent the wheel – join “The Things Network” to save time and energy with smart solutions!

(LtAP-2HnDFG621-EALR8)

Details
Product code LtAP-2HnD&FG621-EA&LR8
Architecture MMIPS
CPU MT7621AT
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
RouterOS license 4
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $279.00

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 12-30 V
Automotive input Voltage 12-27 V
Max power consumption 24 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-30 V

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL 2x2
MIMO UL 1x1
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC 86335904

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9342
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of SIM slots 3 Modem (Mini SIM)
MiniPCI-e slots 2
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
GNSS standards GPS

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 54
SKU LtAP-2HnDFG621-EALR8
Brand MIKROTIK
