MIKROTIK LtAP-2HnD&FG621-EA LtAP LTE6 kit LTE access point with a built-in GPS

LtAP LTE6 kitA compact heavy-duty LTE access point with a built-in GPS. Add extensive networking and tracking options to your vehicle without breaking the bank! 3 MiniSIM slots, multiple powering options, extra miniPCI-e slot, console port.

In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.



Perfect for logistics and tracking



There are 3 MiniSIM slots – you can use them to set up automatic roaming, switching the mobile operators as you cross the border. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same principle goes for the GPS – you need an external antenna via SMA.

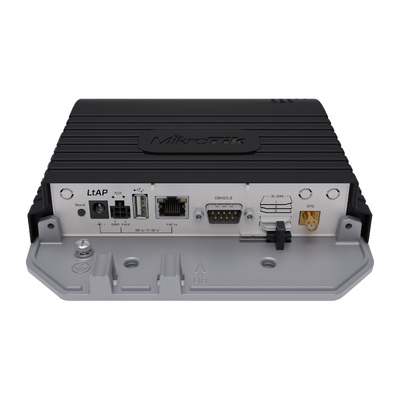

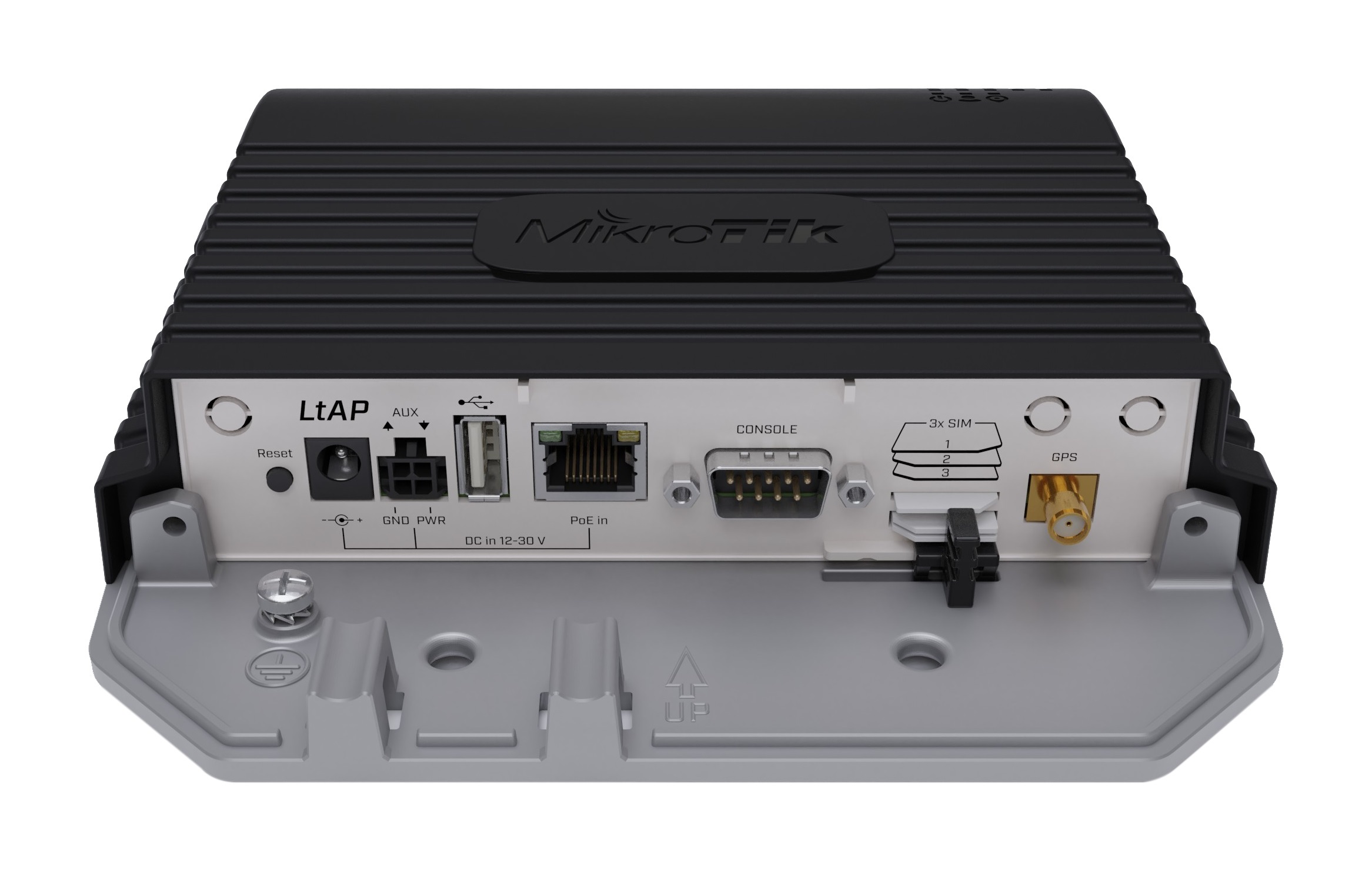

The power options are as flexible as it gets. You have the classic DC jack, passive PoE-in, and an automotive connector. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day!



Customize – and achieve even more!



LtAP LTE6 kit comes with two miniPCI-e slots. One of these slots is reserved by the LTE modem, while the other one can be used as an expansion slot. You could add a 5 GHz interface, for example. Or a second LTE modem – for redundancy. It’s your call, adapt the LtAP to your needs!



Our latest Cat6 LTE modem – cut costs, not speed



This LtAP features a brand new Category 6 LTE modem – the same modem you’ve seen in our bestselling Chateau ax series. It supports a variety of popular LTE frequencies, like the B28 band. You can reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use two bands simultaneously. That is a huge advantage in areas with many LTE users. LtAP LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation.

(LtAP-2HnDFG621-EA)

Specifications

Details
Product code LtAP-2HnD&FG621-EA
Architecture MMIPS
CPU MT7621AT
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
RouterOS license 4
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $199.00

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 12-30 V
Automotive input Voltage 12-27 V
Max power consumption 24 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-30 V

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL 2x2
MIMO UL 1x1
LTE FDD bands 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC 86335904

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9342
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of SIM slots 3 Modem (Mini SIM)
MiniPCI-e slots 2
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
GNSS standards GPS

Certification & Approvals

Details
Certification CE, E-MARK, EAC, ROHS
IP 54

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
SKU LtAP-2HnDFG621-EA
Brand MIKROTIK

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

MIKROTIK LtAP-2HnD&FG621-EA LtAP LTE6 kit LTE access point with a built-in GPS

Model # LtAP-2HnD&FG621-EA

  • SKU: LtAP-2HnDFG621-EA

$358.20
Sold Out

Pre-ordering not available for this item.
