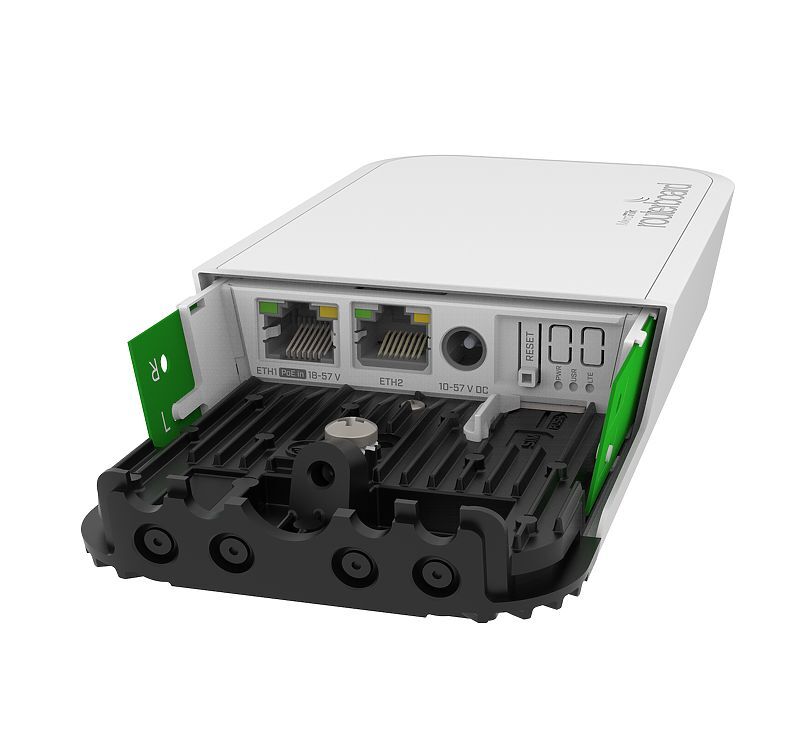

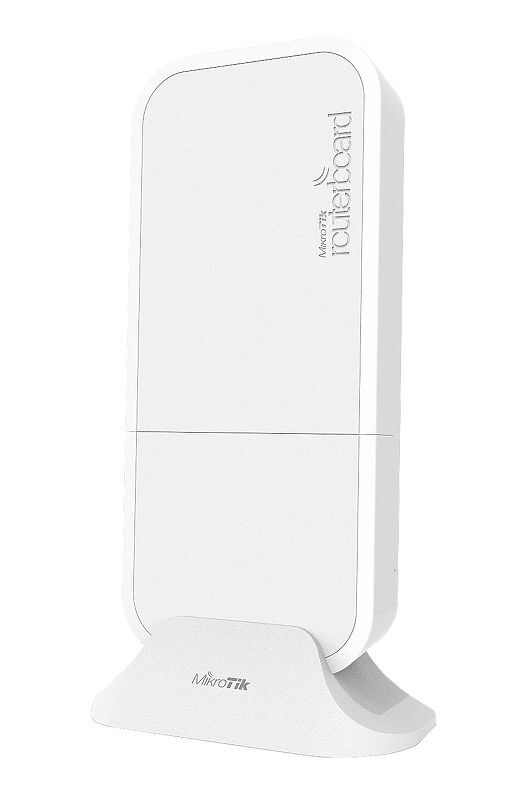

A small package with a huge ambition – the wAP ac LTE is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. It has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can also enjoy wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C?° to +60 C? and can be easily mounted on walls, ceilings or poles.Don’t be fooled by the compact size – this device is powered by a four-core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.RBwAPGR-5HacD2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.
Specifications:DetailsProduct codeRBwAPGR-5HacD2HnD&R11e-LTEArchitectureARM 32bitCPUIPQ-4018CPU core count4CPU nominal frequency716 MHzLicense level4Operating SystemRouterOSSize of RAM128 MBStorage size16 MBStorage typeFLASHTested ambient temperature-30°C to 60°C
Powering:DetailsPoE in802.3af/atPoE in input Voltage18-57 VNumber of DC inputs2 (DC jack, PoE-IN)DC jack input Voltage10-57 VMax power consumption14 WMax power consumption without attachments10 W
Mobile:Details2G CategoryClass123G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink)LTE Category4 (150Mbps Downlink, 50Mbps Uplink)LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)LTE TDD bands38 (2600MHz) / 40 (2300MHz)2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
Wireless:DetailsAC speedAC1200Wireless 2.4 GHz Max data rate300 Mbit/sWireless 2.4 GHz number of chains2Wireless 2.4 GHz standards802.11b/g/nAntenna gain dBi for 2.4 GHz2.5Wireless 2.4 GHz chip modelIPQ-4018Wireless 2.4 GHz generationWi-Fi 4Wireless 5 GHz Max data rate867 Mbit/sWireless 5 GHz number of chains2Wireless 5 GHz standards802.11a/n/acAntenna gain dBi for 5 GHz2.5Wireless 5 GHz chip modelIPQ-4018Wireless 5 GHz generationWi-Fi 5
Ethernet:Details10/100/1000 Ethernet ports2
Peripherals:DetailsNumber of SIM slots1 Modem (Micro SIM)MiniPCI-e slots1
Other:DetailsPCB temperature monitorYesVoltage MonitorYes
Certification & Approvals:DetailsCertificationCE/RED, FCC, IC, EAC, ROHS
Wireless specifications:2.4 GHzTransmit (dBm)Receive Sensitivity1MBit/s22-10011MBit/s22-946MBit/s23-9554MBit/s19-78MCS023-95MCS718-735 GHzTransmit (dBm)Receive Sensitivity6MBit/s24-9554MBit/s20-78MCS024-95MCS719-73MCS917-68
(RBwAPGR-5HacD2HnDR11e-LTE)
| SKU |
RBwAPGR-5HacD2HnDR11e-LTE |
| Barcode # |
4752224004932 |
| Brand |
MIKROTIK |
| Shipping Weight |
0.6000kg |
