Outdoor mobile connectivity
Mount the unit outdoors and aim it towards the serving mobile tower. The IP54 enclosure is specified for tested ambient temperatures from -40°C to 60°C. RouterOS v7 runs on a 650 MHz processor with 64 MB of RAM.
MikroTik SXT LTE7 Outdoor LTE Cat 7 Kit with Dual SIM and PoE In/Out
-
SKU: SXTRR11e-LTE7
- Pick Up Available
- Australian Warranty
- Checkout Securely

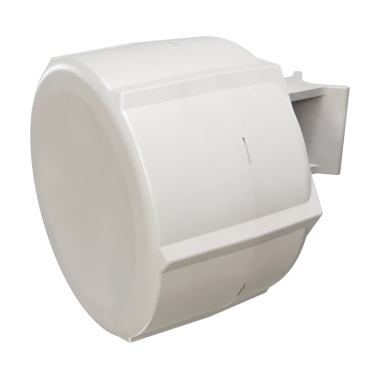

MikroTik SXT LTE7 Outdoor LTE Cat 7 Kit with Dual SIM and PoE In/Out
The MikroTik SXT LTE7 kit is an outdoor LTE device for remote locations within cellular network coverage. Its LTE Category 7 modem supports up to 300 Mbps download and 100 Mbps upload, with carrier aggregation and two Micro SIM slots for connection options.
PoE input and output
The unit has two 10/100 Ethernet ports, with 802.3af/at PoE input on Ether1 and passive PoE output on Ether2. The input range is 1257 V. A 24 V power supply is included.
(SXTRR11e-LTE7)
Features
- LTE Category 7, up to 300 Mbps download and 100 Mbps upload
- Carrier aggregation support
- Two Micro SIM slots
- Two 10/100 Ethernet ports
- 802.3af/at PoE input on Ether1
- Passive PoE output up to 57 V on Ether2
- 24 V power supply included
- Outdoor IP54 enclosure and RouterOS v7
Specifications
Product specifications
| Product code | SXTR&R11e-LTE7 |
|---|---|
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9531 |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
Powering
| Number of DC inputs | 1 (PoE-IN) |
|---|---|
| Max power consumption | 24 W |
| Max power consumption without attachments | 7 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
Ethernet
| 10/100 Ethernet ports | 2 |
|---|
Peripherals
| Number of SIM slots | 2 Modem (Micro SIM) |
|---|---|
| MiniPCI-e slots | 1 |
Certification & Approvals
| Certification | CE, EAC, ROHS |
|---|---|
| IP | 54 |
Mobile
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
|---|---|
| 3G bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz) |
| MIMO DL | 2x2 |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz) |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) |
| TAC | 35312597 |
PoE-out
| PoE-out ports | Ether2 |
|---|---|
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 600 mA |
| High voltage PoE-Out current limit | 400 mA |
| Max total out (A) | 600 mA |
Other
| Mode button | Yes |
|---|
Additional product details
| Carrier aggregation | Supported |
|---|---|
| Included power supply | 24 V |
| PoE input port | Ether1 |
| SKU | SXTRR11e-LTE7 |
| Brand | MIKROTIK |
| Shipping Weight | 3.0000kg |
Warranty assistance
For warranty assistance, contact DeviceDeal and quote product SKU SXTR&R11e-LTE7.
