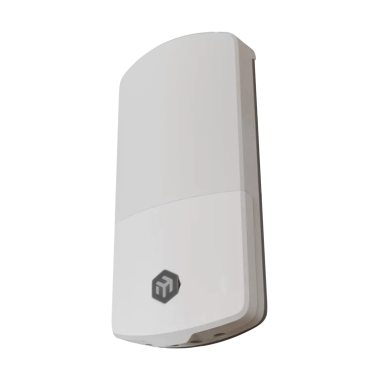

The MikroTik wAP ax LTE7 kit combines LTE Category 7 connectivity and dual-band Wi-Fi 6 in an IP66 weatherproof enclosure. It is designed for rural properties and challenging outdoor installations, with two Gigabit Ethernet ports and a dual-core ARM processor.
LTE and Wi-Fi 6
The LTE modem supports up to 300 Mbps download and 100 Mbps upload. Dual-chain 2.4 GHz and 5 GHz Wi-Fi radios provide maximum data rates of 574 Mbit/s and 1200 Mbit/s respectively. The listed Wi-Fi antenna gains are 6.9 dBi at 2.4 GHz and 7 dBi at 5 GHz.
Flexible installation and power
The enclosure can be secured to an external wall or roof from inside the case, with a concealed anti-vandal screw and a marked rear cable pass-through. Power the unit through the DC jack at 1257 V or via 802.3af/at PoE input at 1857 V.
Centralised management
RouterOS v7 and CAPsMAN support management of multiple access points. The unit includes 256 MB of RAM, 128 MB NAND storage and one Micro SIM slot.
Product video
(wAPGR-5HaxD2HaxDR11e-LTE7)
Features
LTE Category 7 with up to 300 Mbps download and 100 Mbps upload
Dual-band, dual-chain Wi-Fi 6
IP66 enclosure for outdoor installation
Two Gigabit Ethernet ports
DC jack or 802.3af/at PoE input
RouterOS v7 and CAPsMAN support
Concealed anti-vandal screw and rear cable pass-through
