ProSAFE® M4300 Intelligent Edge Series

Stackable Switches with Full PoE+ Provisioning

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.



Best-in-class stacking

  • M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)

  • High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption



Higher flexibility

  • Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization

  • 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds



Lower complexity

  • Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license

  • DHCP/BootP innovative auto-installation including firmware and configuration file upload automation



Investment protection

  • Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks

  • Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection



Secure services

  • With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs

  • With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies



Industry standard management

  • Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN

  • Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support



Industry leading warranty

  • NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty

  • 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement



Key features:

  • Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
  • Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
  • Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
  • Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
  • Up to 384 (Gigabit) ports, or 384 (10 Gigabit) ports, or a combination of both in a single logical switch
  • PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
  • 48-port 10G models ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
  • Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
  • SDN-Ready OpenFlow 1.3 support for maximum investment protection



Software:

  • Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
  • Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
  • Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
  • Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
  • Comprehensive IPv4/IPv6 static and dynamic routing including Proxy ARP, OSPF, Policy-based routing and automatic 6-to-4 tunneling
  • Enhanced IPv4/IPv6 multicast forwarding with IGMPv3/MLDv2 ASM and SSM Proxy and Control Packet Flooding protection
  • High performance IPv4/IPv6 multicast routing with PIM timer accuracy and unhandled PIM (S,G,rpt) state machine events transitioning
  • Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
  • Innovative multi-vendor Auto-iSCSI capabilities for easier virtualization optimization



Availability:

  • Dual redundant, modular power supplies equipping full width models contribute to business continuity management
  • Vertical or horizontal flexible stacking with management unit hitless failover and nonstop forwarding across operational stack members
  • Spine and leaf architecture with every leaf switch (1G access switches) connecting to every spine switch (distributed 10G "core" switches)
  • Stacking and distributed link aggregation allow for multi-resiliency with zero downtime and load balancing capabilities
  • Link Dependency new feature enables or disables ports based on the link state of different ports
  • Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP) offer interoperability with PVST+ infrastructures



Management:

  • DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
  • Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN remote mirroring implementation
  • Service port for out-of-band Ethernet management (OOB)
  • Standard RS232 straight-through serial RJ45 and Mini-USB ports for local management console
  • Standard USB port for local storage, logs, configuration or image files
  • Dual firmware image and configuration file for updates with minimum service interruption
  • Industry standard command line interface (CLI) for IT admins used to other vendors commands
  • Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
  • Single-pane-of-glass NMS300 management platform with mass-configuration support



(GSM4352S-100AJS)

Product Number

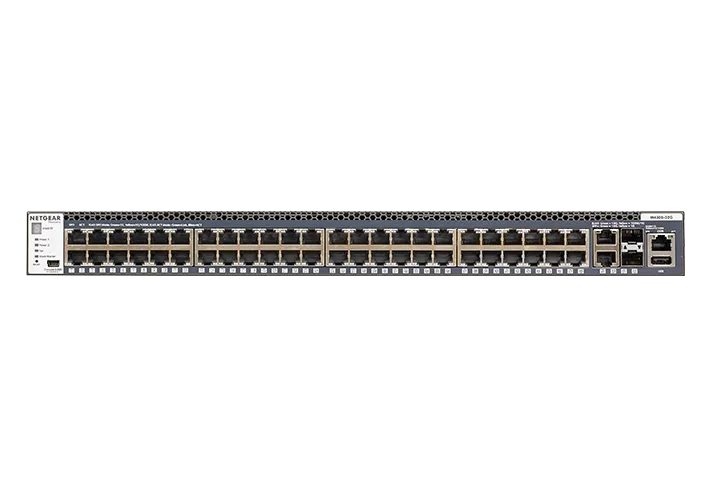

M4300-52G

Product Thumbnail
Model Description
  • 48x1G Stackable Managed Switch with 2x10GBASE-T and 2xSFP+
Datasheet (PDF)
Datasheet (Excel)
Ordering Number
  • GSM4352S
Acoustics
  • 31.5dB @ 25°C (77°F)
Power Consumption (Max)
  • 47.4 Watts
1G RJ45 Ports
  • 48 x 10/100/1000
10G RJ45 Ports
  • 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
10G Fiber SFP+ Ports
  • 2 x SFP+ (1G and 10G speeds)
Power over Ethernet
  • -
PoE Budget (Watts)
  • -
Feature Set
  • Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
Management Ports
  • 1G Ethernet service port for out-of-band management (OOB, RJ45)
  • RS232 straight-through serial RJ45 for local management console
  • Mini-USB port for local management console
  • USB port for local storage, logs, configuration or image files
Form Factor
  • Full width with dual, redundant modular PSUs for business continuity



SKU GSM4352S-100AJS
Barcode # 606449110159
Brand NETGEAR
Shipping Weight 6.6000kg
Shipping Width 0.430m
Shipping Height 0.100m
Shipping Length 0.570m
Shipping Cubic 0.024510000m3
Manufacturer Warranty
Limited Product Lifetime Warranty
Manufacturer Contact Info
http://www.netgear.com.au/
(02) 8117 6800

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Netgear GSM4352S-100AJS 48-Port Fully Managed Stackable Layer 3 Switch - M4300-52G

48 x 1G ports with 2 x 10GBASE-T & 2 x SFP+

  • SKU: GSM4352S-100AJS

$3,273.00
$4,499.00
SAVE $1,226.00 (27%)
In Stock
