  • ONE-TOUCH MANAGEMENT – App managed Smart Cloud Switch using the NETGEAR Insight app for one-touch installation, monitoring and management of all your GC110 and Insight Switches and APs, no additional hardware needed
  • ANYWHERE MONITORING & MANAGEMENT – Smart Cloud remote management for unrivaled mobile management experience of your wireless network – anywhere, anytime, from the palm of your hand
  • ALL-INCLUSIVE CONNECTIVITY – 8-port Gigabit copper + 2-port Gigabit SFP fiber – All-inclusive connectivity with copper and fiber ports
  • SMART SWITCHING – Advanced L2 switching capabilities (VLANs, LAGs, QoS, ACLs, IPv6 support, IGMP snooping, multicast, RSTP, rate limiting, etc)
  • MODERN DESIGN - Clean, modern design and fanless, silent operation for flexible deployment in any environment, even noise sensitive (classrooms, offices, patient care)
  • PEACE OF MIND – Industry-leading 5-year limited hardware warranty



GC110

  • Managed with Insight App
    Setup, monitor, and manage your network from anywhere with NETGEAR Insight iOS and Android mobile app.
  •

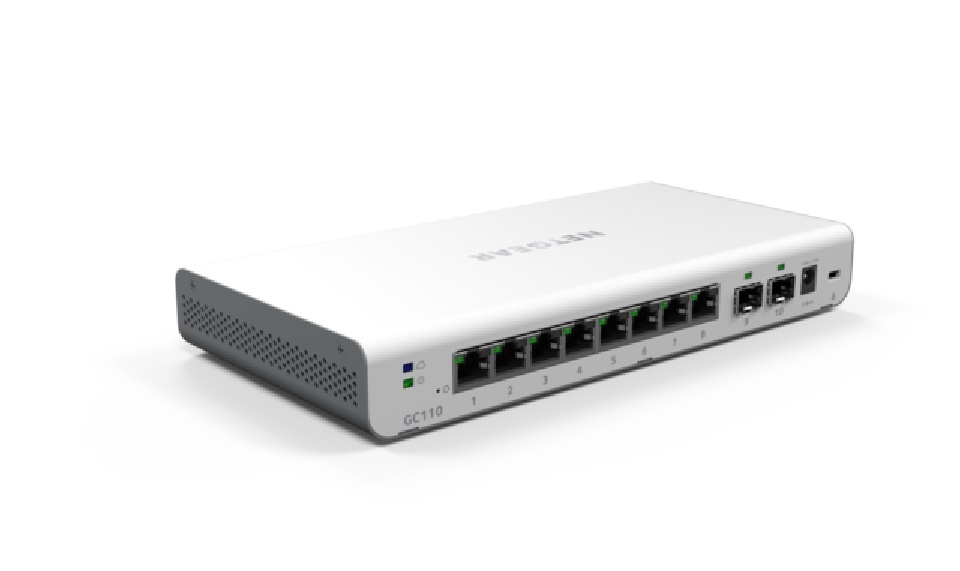

    • All-inclusive Connectivity
      8 PoE copper Gigabit Ethernet ports and 2 SFP Fiber ports for maximum flexibility and easy deployment in your network.
    •
      • Fanless and Silent
        Flexible deployment in any environment, even noise sensitive ones (classrooms, offices, patient care); wall-mountable.
      •
        • Quality, Durability, and Peace of Mind
          All NETGEAR Insight switches include; 5-year Limited Hardware Warranty, Next Business Day (NBD) Replacement, 90 days free technical support.

(GC110)

Traffic Management

  • Auto Negotiation of speed and duplex modes
  • IEEE 802.3x Flow Control
  • Dynamic MAC address management
  • IEEE 802.1Q-based VLAN
  • Auto Voice VLAN
  • Auto Video VLAN
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 801.2p-based QoS
  • TCP/UDP-based QoS
  • DiffServ
  • IPv4 and IPv6-based QoS
  • DSCP Support
  • Rate Limiting (ingress, or egress)
  • Link Aggregation and LACP
Product Number

GC110

Product Thumbnail
Model Description
  • Insight Managed 8-Port Gigabit Ethernet Smart Cloud Desktop Switch w/2 SFP Fiber Ports
Gigabit copper ports
  • 8
SFP ports
  • 2 (dedicated)
Datasheet (PDF)
  • GC110 Datasheet
Number of PoE/PoE+ ports
  • N/A
Total PoE power budget (watts)
  • N/A
Bandwidth (full-duplex)
  • 20 Gbps
Buffer size (dynamically shared across ports in use)
  • 1.5 MB
MAC address database size (48-bit MAC addresses)
  • 16K
VLAN (number supported)
  • 256
VLAN routing
  • Not supported
Dynamic VLAN assignment
  • Yes
MLD Snooping
  • Yes
Static routes
  • Not supported
Link Aggregation / Port Trunking
  • LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG
Number of LAGs & number of members
  • 5 LAGS with max 8 members in each LAG
Number of priority queues
  • 8
Supported multicast groups
  • 512
DoS prevention
  • Yes
Loop detection/prevention
  • Yes
Jumbo frame support
  • Up to 9K packets
EEE (IEEE 802.3az)
  • Yes
Power supply
  • External: Input 12V/1.5A (localized to country of sale)
Max power consumption (Watts)
  • 10.1 W
Fan(s)
  • 0 (fanless)
Acoustic noise level @ 25°C (dBA)
  • N/A
Operating temperature
  • 0° to 45°C (32° to 113°F)
MTBF (@ 25°C)
  • 4,013,311 hours (458 years)
Electromagnetic compliance (A or B)
  • Class A
Dimensions (W x D x H)
  • 245 x 123 x 33 mm (9.6 x 4.8 x 1.3 in)
Weight
  • 0.74 kg (1.63 lb)
SKU GC110
Barcode # 606449119985
Brand Netgear
Shipping Weight 0.7400kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.386m
Shipping Cubic 0.006176000m3
