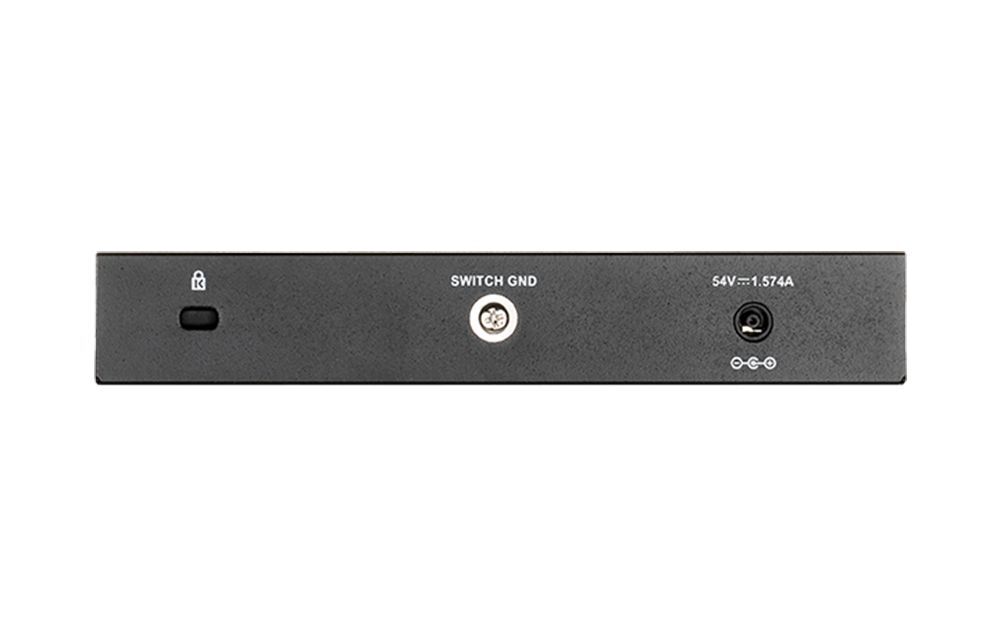

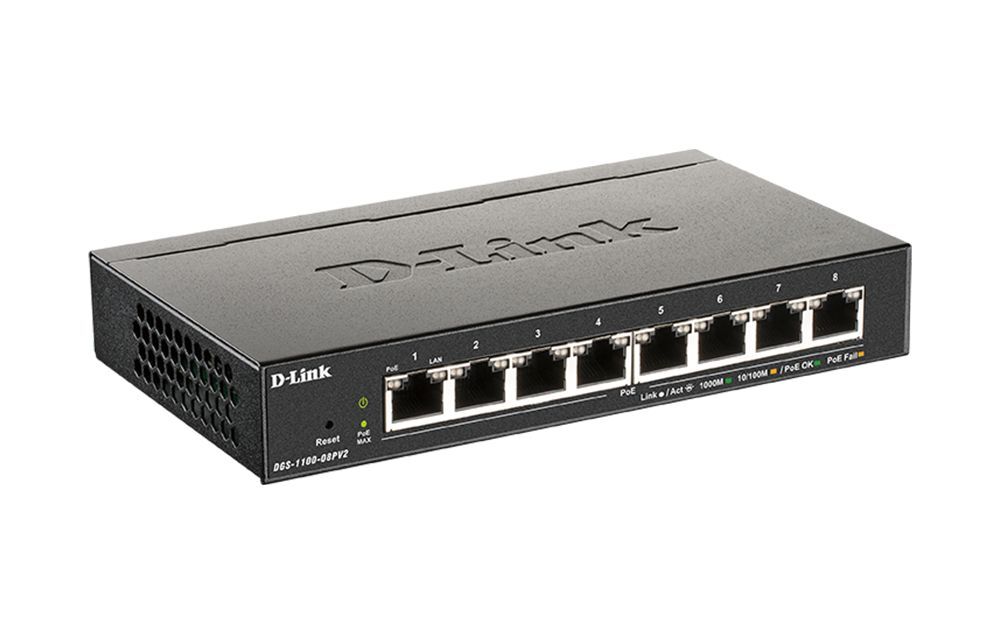

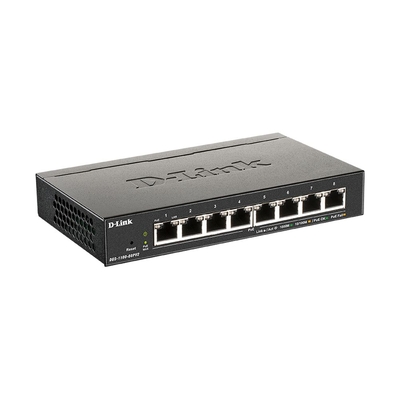

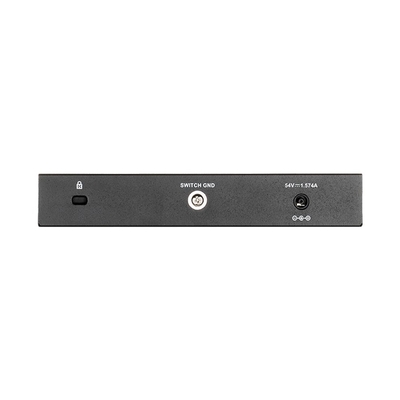

D-Link 8-Port Gigabit Smart Managed PoE Switch with 8 PoE Ports


DGS-1100-08PV2

Network - Switches

Features

The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
  • RJ-45 Ports: 8
  • RJ-45 Speeds: 10/100/1000
  • Combo Ports (RJ-45 + SFP): 8 PoE Ports
  • SFP (Small Form-Factor Pluggable) Ports : 0
  • SFP Speeds: 0
  • PoE++ (60w) or higher available?: Yes
  • Number of PoE Ports: 8
  • Extended PoE?: No
  • Capacity in Millions of Packets per Second (mpps): 11.9 Mpps
  • Switching Capacity in Gigabits per Second (Gbps):16 Gbps
  • Web-based GUI: Yes
  • Redundant Power Supply: No
  • 19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)
  • DIN-Rail Mountable: No
  • Stacking Capacity (Physical): No
  • Stacking Capacity (Virtual): No
  • IPv4 Routing: Yes
  • IPv6 Routing: Yes
  • DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
  • Ruggedized: No
  • Operating Temperature: 0 to 40 C
  • Unit dimensions: 171 x 97.8 x 28.6 mm
  • Warranty Licence: Limited Lifetime Warranty

Technical Details

ModelDGS-1100-08PV2
Main Port TypeEthernet
Port Count8
SFP Ports0
Port Speed10/100/1000
ManagedSmart Managed
PoEYes
PoE Budget64
OSI Layer CapabilityLayer 2
Form FactorRack-mount
Standard WarrantyLimited Lifetime Warranty
StackableNo
CoolingPassive
Redundant Power SupplyNo
Cloud ManagedNo
Licence requiredNo
Warranty

Resources

High resolution Image
Links and Download
Product Link Product Data Sheet Installation Guide

(DGS-1100-08PV2)

Technical Details

ModelDGS-1100-08PV2
Main Port TypeEthernet
Port Count8
SFP Ports0
Port Speed10/100/1000
ManagedSmart Managed
PoEYes
PoE Budget64
OSI Layer CapabilityLayer 2
Form FactorRack-mount
Standard WarrantyLimited Lifetime Warranty
StackableNo
CoolingPassive
Redundant Power SupplyNo
Cloud ManagedNo
Licence requiredNo
Warranty
SKU DGS-1100-08PV2
Barcode # 790069453311
Brand D-LINK
Shipping Weight 1.1000kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

D-LINK 8-Port Gigabit Smart Managed PoE Switch with 8 PoE ports (64W PoE budget)

Model # DGS-1100-08PV2

  • SKU: DGS-1100-08PV2

$221.00
In Stock
