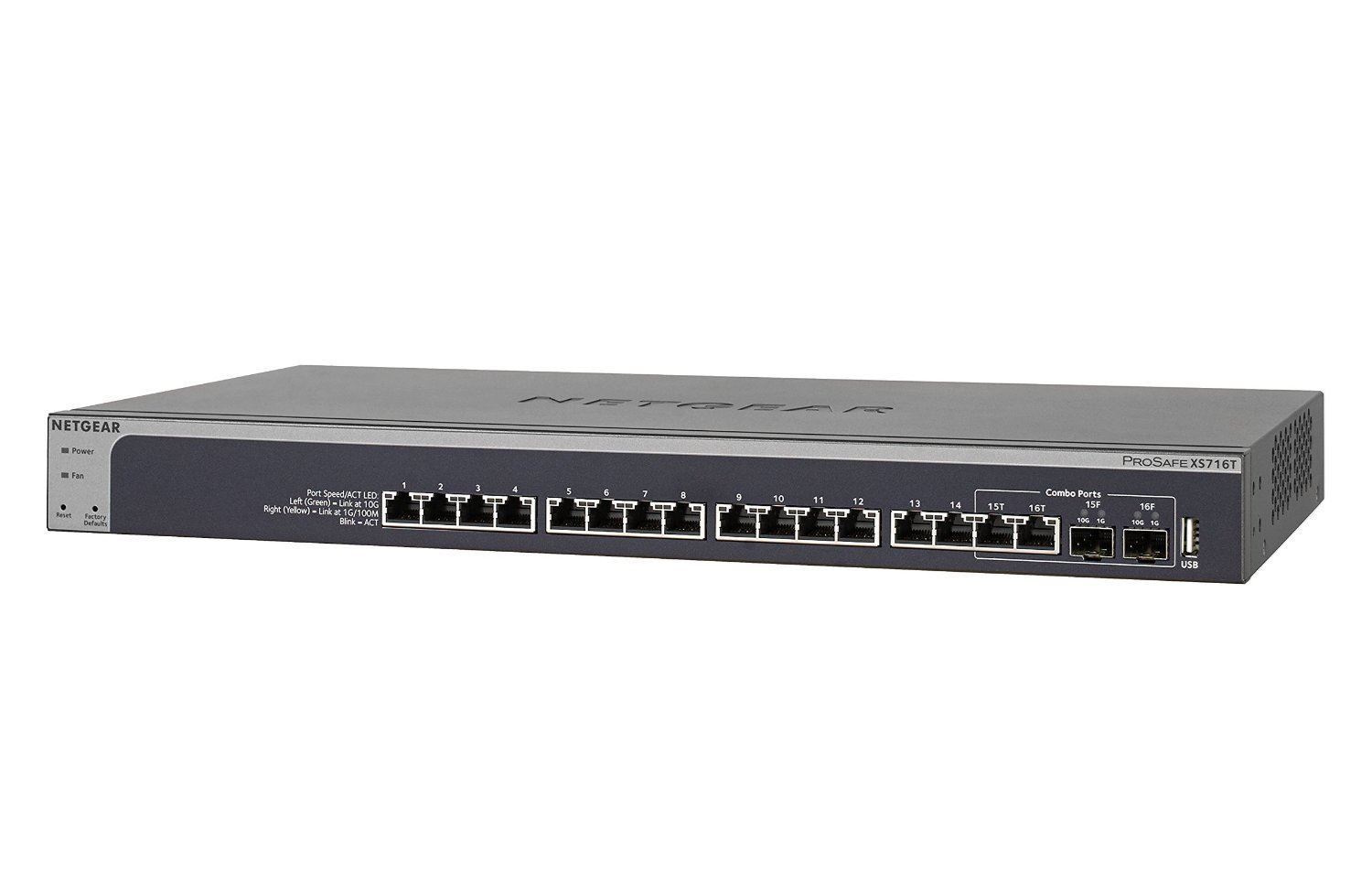

NETGEAR ProSAFE XS716T 16 Port 10 Gigabit Ethernet Smart Managed Switch - 16x 100M/1G/10G Copper Ports - 2x SFP+ shared (combo) Ports - 1x USB for Firmware/Config Access - 1x internal PSU - 2x internal fixed fan - Limited Lifetime Warranty



(XS716T)

Performance

  • Packet buffer memory: XS708T/XS716T: 2 MB ----- XS728T/XS748T: 3 MB
  • Bandwidth: XS708T: 160 Gbps ----- XS716T: 320 Gbps ----- XS728T: 560 Gbps ----- XS748T: 960 Gbps
  • Priority queues: 8
  • Priority queuing: Weighted Round Robin (WRR) and Strict Priority
  • MAC Address database size: 16K
  • Multicast groups: 512
  • Number of IPv4 static routes: XS708T/XS716T: 32 ----- XS728T/XS748T: 64
  • Number of IPv6 static routes: XS708T/XS716T: 32 ----- XS728T/XS748T: 64
  • Number of routed VLANs: XS708T/XS716T: 15 ----- XS728T/XS748T: 32
  • Number of ARP cache entries: XS708T/XS716T: 738 ----- XS728T/XS748T: 1024
  • Number of DHCP snooping bindings: XS708T/XS716T: 8K ----- XS728T/XS748T: 1K
  • Access Control Lists (ACLs) - shared for MAC, IP and IPv6 ACLs: XS708T/XS716T: 100 ----- XS728T/XS748T: 164
  • Jumbo frame support: XS708T/XS716T: Up to 9K ----- XS728T/XS748T: Up to 10K

L2 Services - VLANs

  • Number of VLANs: XS708T/XS716T: 256 ----- XS728T/XS748T: 512
  • IEEE 802.1Q VLAN Tagging
  • IP-based VLANs
  • MAC-based VLANs
  • Auto-VoIP based on protocols (SIP, H323 and SCCP)
  • Auto-Voice VLAN based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
  • Auto-Video VLAN
  • Private VLAN

L2 Services - Availability

  • Broadcast, multicast, unknown unicast storm control
  • IEEE 802.3ad - LAGs (LACP)
  • IEEE 802.3x (full duplex and flow control)
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree Protocol
  • IEEE 802.1s Multiple Spanning Tree Protocol

L2 Services - Multicast Filtering

  • IGMP snooping (v1, v2, and v3)
  • MLD snooping support (v1 and v2)
  • IGMP snooping queries
  • Block unknown multicast
  • Multicast VLAN Registration (MVR): XS708T/XS716T: Yes ----- XS728T/XS748T: No

L3 Services - DHCP

  • DHCP client
  • DHCP snooping

L3 Services - Routing

  • IPv4 static routes: XS708T/XS716T: 32 ----- XS728T/XS748T: 64
  • IPv6 static routes: XS708T/XS716T: 32 ----- XS728T/XS748T: 64
  • Host ARP table: XS708T/XS716T: 738 entries ----- XS728T/XS748T: 1024 entries
  • ICMP Router Discovery Protocol (IRDP): XS708T/XS716T: Yes ----- XS728T/XS748T: No
  • VLAN routing: XS708T/XS716T: 15 VLANs ----- XS728T/XS748T: 32 VLANs
  • Number of IP VLAN interfaces: XS708T/XS716T: 15 ----- XS728T/XS748T: 32

Link Aggregation

  • IEEE 802.3ad - LAGs (LACP)
  • Manual Static LAG
  • LAG hashing: L2 only (MAC addresses)
  • 8 LAGs with max 8 members in each LAG (XS708T/XS716T)
  • 12 LAGs with max 8 members in each LAG (XS728T/XS748T)

Network Monitoring and Discovery Services

  • 802.1ab LLDP
  • SNMP: v1, v2c, v3
  • RMON group 1,2,3,9

Network Security

  • IEEE 802.1X
  • RADIUS accounting
  • Access Control Lists (ACLs): L2 / L3 / L4
  • MAC lockdown
  • MAC lockdown by the number of MACs
  • Control MAC # Dynamic learned entries: 600
  • Control MAC # static entries: XS708T/XS716T: 20 ----- XS728T/XS748T: 600
  • IEEE 802.1x RADIUS port access authentication
  • Port-based security by locked MAC addresses
  • Dynamic ARP inspection: XS708T/XS716T: Yes ----- XS728T/XS748T: No
  • Broadcast, multicast, unknown unicast storm control
  • DoS attacks prevention: XS708T/XS716T: Yes ----- XS728T/XS748T: No

Quality of Service (QoS)

  • Port-based rate limiting: XS708T/XS716T: Egress only ----- XS728T/XS748T: Ingress and egress
  • Port-based QoS
  • Support for IPv6 fields
  • DiffServ QoS
  • IEEE 802.1p COS
  • Destination MAC and IP
  • IPv4 and IPv6 DSCP
  • IPv4 and IPv6 ToS
  • TCP/UDP-based
  • Weighted Round Robin (WRR)
  • Strict priority queue technology
  • Auto-VoIP
  • Auto-Voice VLAN
  • Auto-Video VLAN

Management

  • Password management
  • Configurable management VLAN
  • Admin access control via RADIUS and TACACS+
  • IPv6 management
  • SNTP client over UDP port 123
  • SNMP v1/v2c
  • SNMP v3 with multiple IP addresses
  • RMON group 1,2,3,9
  • Port mirroring
  • Many-to-one port mirroring: XS708T/XS728T/XS748T: 8 ----- XS716T: 16
  • Web browser-based graphical user interface (GUI)
  • Smart Control Center (SCC) for multi-switch management
  • Dual software (firmware) image
  • Dual configuration file
  • Cable test utility
  • SSL/HTTPS Web-based access (version): XS708T/XS716T: Yes (v3) ----- XS728T/XS748T: Yes (v2)
  • TLS Web-based access (version): XS708T/XS716T: Yes (v1.0) ----- XS728T/XS748T: Yes (v1.0 ~ v1.2)
  • File transfers (uploads, downloads): TFTP / HTTP
  • HTTP upload/download (firmware)
  • Syslog (RFC 3164)
  • USB port for firmware updates, configuration settings upload/backup, and system log file downloads

NETGEAR Warranty

  • This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
10-Gigabit copper ports
  • 16 10GBASE-T copper
SFP ports
  • 2 SFP+ 1000/10GBASE-X fiber ports (shared)
Buffer size
  • 2 MB
MAC address database size
  • 16K
VLAN (# supported)
  • 512
Number of LAGs & number of members
  • 8 LAGS with max 8 members in each LAG (LACP)
Number of priority queues
  • 8
Access Control Lists (ACLs)
  • 100 shared for MAC, IP and IPv6 ACLs
IPv4 Static routes
  • 32
IPV6 Static routes
  • 32
Power supply
  • Internal 100-240VAC 50-60Hz
Max power consumption (Watts)
  • 96 W
Fan
  • 2
Acoustic Noise Level @25C (dBA)
  • 29.1 dBA
Operating Temperature
  • -5° to 55°C (23° to 131°F)
MTBF (@ 25° C)
  • 276,832 hours
Electromagnetic compliance (A or B)
  • Class A
Dimensions (W x D x H)
  • 440 x 204 x 43 mm (17.3 x 8 x 1.7 in)
Weight
  • 2.98 kg (6.57 lb)
SKU XS716T
Barcode # 606449111934
Brand Netgear
Shipping Weight 4.2000kg
Shipping Width 0.290m
Shipping Height 0.100m
Shipping Length 0.570m
Shipping Cubic 0.016530000m3
Manufacturer Warranty
Limited Product Lifetime Warranty
Manufacturer Contact Info
http://www.netgear.com.au/
(02) 8117 6800
