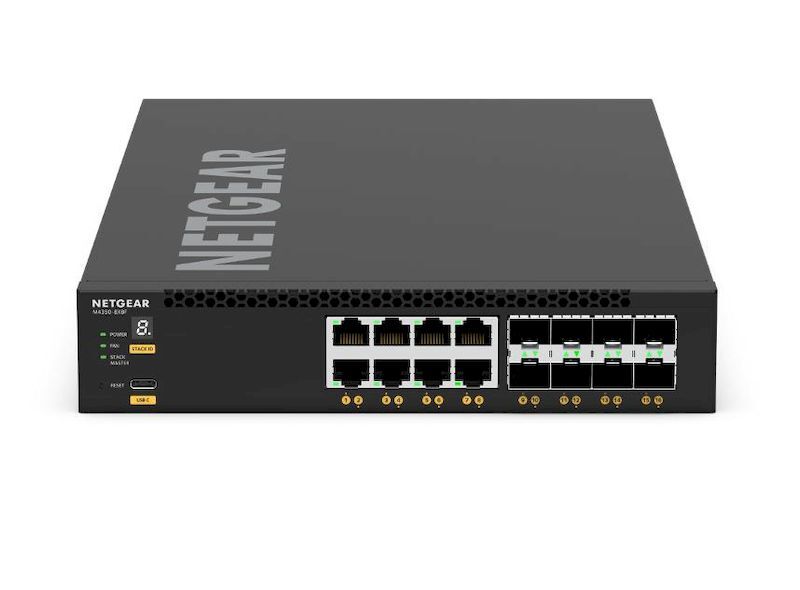

NETGEAR XSM4316-100AJS
NETGEAR 16-PORT L3 STACK MANAGED SWITCH, 10G(8), SFP+(8) (HALF WIDTH)

Name: NETGEAR XSM4316-100AJS 16-PORT L3 STACK MANAGED SWITCH- 10G/MULTI-GIG(8)- SFP+(8) (HALF WIDTH)
Brand: NETGEAR
SKU: XSM4316-100AJS
Price: 3105 AUD
Availability: OutOfStock

10 Gigabit / Multi-Gig

16 (8 x 10G/Multi-Gig, 8 x 10G SFP+)

Enhanced (NETGEAR IGMP Plus™)

81.1W/254.65Btu/hr

Overview:

Engineered and Certified for AV over IP

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

Highlights

NETGEAR listens to and supports the Pro AV community

IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI

Enterprise-class hardware

From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)

Other IT use cases

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack

Industry standard management

Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
SNMP, sFlow and RSPAN - the entire feature set is available without license

Industry leading warranty

NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty*
90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Features:

POWER AND THROUGHPUT

Edge to core stackable platform, from 1 Gigabit to 100
Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

(XSM4316-100AJS)

Specifications:

NETGEAR XSM4316-100AJS Specifications

Technical Specification

Width : 220mm
Depth : 400mm
Height : 43.2mm
Weight : 4.05kg (8.93lb)
Primary Port Speed : 10 Gigabit / Multi-Gig
Number of Ports : 16 (8 x 10G/Multi-Gig, 8 x 10G SFP+)
PoE Ports / Budget : N/A
IGMP Support : Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support : Yes, up to 12kb
AVB Support : Yes, included
Acoustics : Quiet Mode 34.4dB@25ºC
Power Consumption : 81.1W/254.65Btu/hr
Standby without any port connection: 30.5W/95.77Btu/hr

Support & Warranty

Warranty:

This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
