View PDF BrochureVLAN and Traffic Segmentation
Supports static and dynamic VLANs, voice, WiFi and camera VLANs, VLAN routing and up to 512 VLANs.

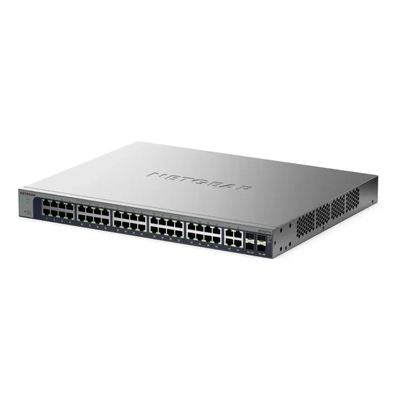

NETGEAR XS748TM 48-Port 10G Multi-Gigabit Smart Cloud Switch
Model# XS748TM
-
SKU: XS748TM
- Pick Up Available
- Australian Warranty
- Checkout Securely
48-Port 10G / Multi-Gigabit Smart Cloud Switch
NETGEAR XS748TM
The NETGEAR XS748TM is a 48-port smart cloud switch with 44 auto-negotiating 10G/5G/2.5G/1G copper ports and four dedicated 10G SFP+ uplink ports. It combines NETGEAR Insight cloud management, a web-based GUI and Smart lite CLI access with advanced Layer 2+ and Layer 3 lite switching features.
What is the NETGEAR XS748TM?
The XS748TM is a 19-inch rack-mount 10G/Multi-Gigabit Ethernet smart switch designed for use as a high-speed network core or aggregation switch. Its 960Gbps non-blocking switching bandwidth and high port density support demanding business networks.
48 Ports 44 copper ports plus four dedicated SFP+ uplinks
10G Multi-Gig Copper ports auto-negotiate at 1G, 2.5G, 5G or 10G
960Gbps Non-blocking, full-duplex switching bandwidth
Insight Centralised local or remote cloud management
High-Speed 10G and Multi-Gigabit Connectivity
Flexible copper and fibre connectivity for evolving network requirements.
The XS748TM provides 44 10G/Multi-Gigabit RJ45 copper ports. Each copper port scales to the speed supported by the connected device, with 1G, 2.5G, 5G and 10G operation.
Existing Cat5e cabling can support 2.5G and 5G connections, while four dedicated 10G SFP+ ports provide high-bandwidth fibre or compatible copper-module uplinks to servers, storage or the network backbone.
Advanced Smart Switching Features
Layer 2+ and Layer 3 lite controls for segmentation, prioritisation, routing and security.
Quality of Service
Port-based, 802.1p and DSCP-based QoS help prioritise voice, video and application traffic.
Multicast Control
IGMP and MLD snooping, querier support and 512 multicast groups help optimise multicast delivery.
DHCP and Routing Services
Includes DHCP client, snooping, server and relay functions, plus IPv4 and IPv6 static routing.
Link Aggregation
Supports LACP and manual static aggregation with up to eight LAGs and up to eight members per LAG.
Network Protection
Includes ACLs, 802.1x authentication, dynamic ARP inspection, protected ports and automatic DoS prevention.
Flexible Local and Cloud Management
Multiple administration options support both straightforward setup and scriptable management.
- NETGEAR Insight mobile app and cloud portal for remote setup, monitoring and management.
- Zero-touch provisioning for additional Insight-managed devices that inherit existing network settings.
- Web browser-based GUI for local administration.
- Smart lite CLI with SSH and Telnet access for scripted and automated configuration.
- SNMP v1, v2c and v3, RMON, port mirroring, cable testing, ping and traceroute tools.
- Cloud-initiated firmware updates and dual firmware images.
Designed for Business Network Aggregation
High port density and rack-mount installation suit central switching and aggregation roles.
The XS748TM is designed for demanding business networks and can be deployed as the high-speed core of a business network or as an aggregation switch within a larger infrastructure. Temperature- and load-based fan control adjusts cooling according to operating conditions.
What Is Included?
Package contents listed in the supplied product information and datasheet.
- NETGEAR XS748TM smart switch
- Power cord, localised to the region of sale
- Rack-mount kit
- Rubber footpads for tabletop installation
Frequently Asked Questions
Quick answers about the NETGEAR XS748TM.
How many network ports does the XS748TM have?
It has 48 ports in total: 44 10G/Multi-Gigabit RJ45 copper ports and four dedicated 10G SFP+ uplink ports.
Which speeds do the copper ports support?
Each copper port supports auto-negotiated 1G, 2.5G, 5G and 10G Ethernet speeds.
Can the XS748TM be managed remotely?
Yes. NETGEAR Insight provides remote cloud management through the Insight mobile app or cloud portal.
Does it support command-line management?
Yes. The XS748TM supports Smart lite CLI access through SSH and Telnet.
Does the switch support VLAN routing?
Yes. VLAN routing is included among its Layer 3 lite features.
Is the XS748TM rack-mountable?
Yes. It has a 19-inch rack-mount form factor and includes a rack-mount kit.
(XS748TM)
NETGEAR XS748TM Specifications
Review the interfaces, performance, management, switching, physical and environmental specifications.
| Specification | Details |
|---|---|
| Product and Interfaces | |
| Model | XS748TM |
| Product Type | 10G/Multi-Gigabit Ethernet Smart Cloud Switch |
| Form Factor | 19-inch rack mount |
| Total Ports | 48 |
| 10G/Multi-Gigabit Copper Ports | 44 x RJ45 ports supporting 10G/5G/2.5G/1G Ethernet |
| 10G SFP+ Uplink Ports | 4 x dedicated SFP+ ports supporting 1G/10G |
| Forwarding Mode | Store-and-forward |
| Front Device LEDs | Power with cloud mode indicator, fan |
| Front Port LEDs | Speed, link and activity |
| Performance | |
| CPU | 1.2GHz quad-core processor, 512MB RAM, 64MB SPI flash |
| Packet Buffer | 2MB |
| Non-Blocking Bandwidth | 960Gbps, full duplex |
| Packet Forwarding Rate | 714.2Mpps for 64-byte packets |
| MAC Address Table | 16K entries |
| Priority Queues | 8 |
| Priority Queuing | Weighted Round Robin and strict priority |
| Multicast Groups | 512 |
| VLANs | 512 |
| Jumbo Frame Support | 12,288 bytes |
| 1G Copper Latency | 3.67 / 3.72 / 3.48µs for 64 / 1518 / 9216-byte frames |
| 2.5G Copper Latency | 9.34 / 9.48 / 9.49µs for 64 / 1518 / 9216-byte frames |
| 10G Copper Latency | 4.06 / 3.98 / 3.97µs for 64 / 1518 / 9216-byte frames |
| 1G SFP Fibre Latency | 2.11 / 2.14 / 2.10µs for 64 / 1518 / 9216-byte frames |
| 10G SFP+ Fibre Latency | 1.13 / 1.20 / 1.20µs for 64 / 1518 / 9216-byte frames |
| MTBF at 25°C | 174,197 hours |
| Layer 2+ and Layer 3 Lite Features | |
| VLAN Types | Static, dynamic, VoIP, voice, WiFi and camera VLANs |
| VLAN Routing | Yes |
| IPv4 Static Routes | 64 |
| IPv6 Static Routes | 64 |
| Routed VLAN Interfaces | 15 |
| Host ARP Table | 1024 entries |
| DHCP Services | Client, snooping, server, relay, IPv6 server and IPv6 relay |
| DHCP Snooping Bindings | 8K |
| IGMP Snooping | Versions 1, 2 and 3 |
| MLD Snooping | Versions 1 and 2 |
| Link Aggregation | LACP and manual static LAGs; up to 8 LAGs with up to 8 members each |
| Spanning Tree | IEEE 802.1D STP, IEEE 802.1w RSTP and IEEE 802.1s MSTP |
| Energy Efficient Ethernet | Yes, IEEE 802.3az; deactivated by default |
| Security and Quality of Service | |
| Access Control Lists | 100 shared ingress ACLs for MAC, IPv4 and IPv6; L2/L3/L4 support |
| 802.1x Authentication | Yes |
| RADIUS and TACACS+ | RADIUS accounting, RADIUS-based VLAN assignment and administrative access control through RADIUS and TACACS+ |
| Port Security | MAC lockdown, locked MAC addresses and protected ports |
| Dynamic ARP Inspection | Yes |
| DoS Prevention | Yes |
| Storm Control | Broadcast, multicast and unknown unicast |
| QoS | Port-based, DiffServ, IEEE 802.1p CoS, IPv4/IPv6 DSCP and TCP/UDP-based classification |
| Rate Limiting | Ingress and egress |
| Management and Monitoring | |
| Cloud Management | NETGEAR Insight mobile app and Insight cloud portal |
| Local Management | Web browser-based GUI |
| Command-Line Management | Smart lite CLI, SSH and Telnet |
| Zero-Touch Provisioning | Yes |
| Centralised Network Policies | VLANs, ACLs, QoS and LAGs across Insight-managed switches and access points |
| SNMP | v1, v2c and v3 |
| RMON | Groups 1, 2, 3 and 9 |
| Diagnostic Tools | Port mirroring, many-to-one port mirroring, cable test, ping and traceroute |
| Firmware | Cloud firmware upgrade and dual firmware images |
| File Transfers | TFTP and HTTP |
| Syslog Server Support | Yes |
| Power, Cooling and Acoustics | |
| Power Supply | 1 x fixed internal power supply |
| Maximum Power Consumption | 230.3W |
| Minimum Link-Down Standby Power | 105.7W |
| Heat Dissipation | Maximum 785.32BTU/hr; minimum 360.44BTU/hr |
| Fans | 4 fixed internal fans with temperature- and load-based speed control |
| Acoustic Noise at 25°C | 26.9dBA at idle; 44.1dBA at full loadThe datasheet's performance table lists 44.10dBA at full load. |
| Physical and Environmental | |
| Dimensions | 440 x 350 x 43.2mm (W x D x H) |
| Weight | 6.13kg (13.51lb) |
| Mounting Options | Desktop and rack mount |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | Up to 95% relative humidity, non-condensing |
| Maximum Altitude | 10,000ft (3,000m) |
| Package Contents and Warranty | |
| Included Switch | NETGEAR XS748TM |
| Included Power Cord | Power cord localised to the region of sale |
| Included Mounting Hardware | Rack-mount kit |
| Included Footpads | Rubber footpads for tabletop installation |
| Hardware Warranty | NETGEAR Enterprise Limited Lifetime WarrantyThe datasheet states that the hardware warranty is valid only when purchased from a NETGEAR authorised reseller and registered within 90 days of purchase. |
| Initial Technical Support | Complimentary phone, chat and online technical support for the first 90 days from purchase |
| Australia and New Zealand Part Number | XS748TM-100AUS |
| SKU | XS748TM |
| Brand | NETGEAR |
| Shipping Weight | 8.0000kg |
| Shipping Width | 0.440m |
| Shipping Height | 0.080m |
| Shipping Length | 0.360m |
| Shipping Cubic | 0.012672000m3 |
