StarTech 4m Single Mode 9/125 Duplex Fiber Patch Cable LC, SC - SMFIBLCSC4
Model # SMFIBLCSC4
-
SKU: SMFIBLCSC4
- Pick Up Available
- Australian Warranty
- Checkout Securely
4m OS1 single-mode duplex LC/SC fibre cable
A 4m / 13.1ft yellow OS1 9/125µm single-mode duplex fibre patch cable with LC/SC connectors, LSZH jacket and ratings up to 100Gbps.
Key capabilities
OS1 single-mode fibre
For compatible single-mode networking and Fibre Channel links.
Up to 100Gbps cable rating
The exact DeviceDeal table lists 10Gbps, 40Gbps and 100Gbps.
Duplex LC/SC

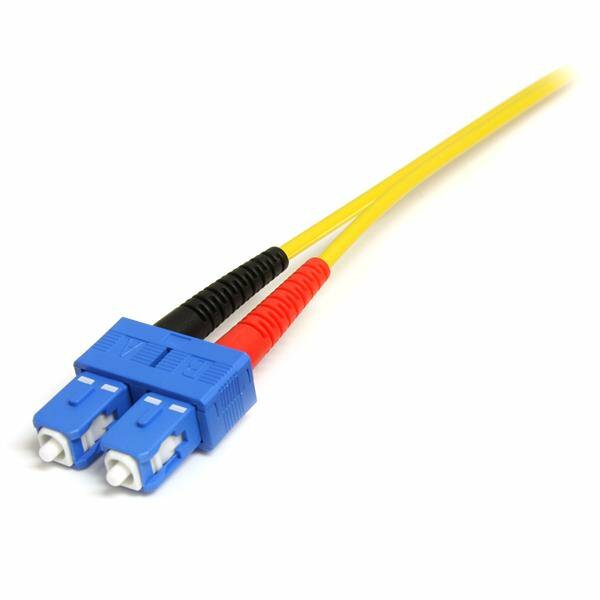

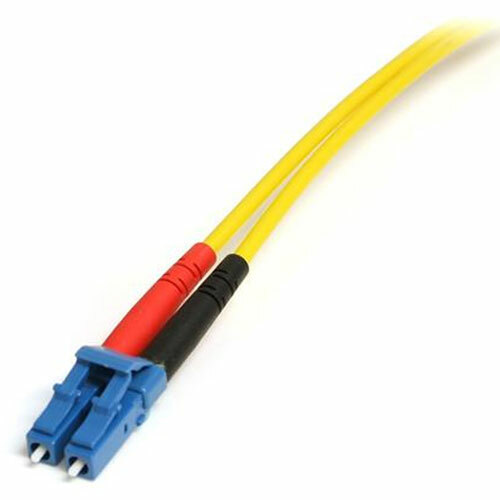

LC Duplex at one end and SC Duplex at the other.
LSZH jacket
Low-Smoke Zero-Halogen construction for installations where smoke and halogen emissions are a consideration.
What to know before buying
Confirm the equipment requires OS1 9/125µm single-mode fibre with LC/SC duplex connectivity. Actual supported distance and rate depend on the transceivers and optical budget.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
How long is SMFIBLCSC4?
What fibre type is used?
What connectors are fitted?
What cable rates are listed?
Is the jacket LSZH rated?
What colour is the cable?
What operating temperature is listed?
What warranty applies in Australia?
(SMFIBLCSC4)
Features and highlights
OS1 single-mode fibre
For compatible single-mode networking and Fibre Channel links.
Up to 100Gbps cable rating
The exact DeviceDeal table lists 10Gbps, 40Gbps and 100Gbps.
Duplex LC/SC
LC Duplex at one end and SC Duplex at the other.
LSZH jacket
Low-Smoke Zero-Halogen construction for installations where smoke and halogen emissions are a consideration.
- 4m / 13.1ft
- OS1 9/125µm
- LC/SC duplex + LSZH
- Lifetime warranty
Specifications
Verified specifications for StarTech SMFIBLCSC4.
Warranty Information
| Warranty | Lifetime |
|---|
Hardware
| Fiber Size | 9/125 |
|---|---|
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
Performance
| Cable Rating | 10Gbps / 40Gbps / 100Gbps |
|---|---|
| Fiber Classification | OS1 |
| Maximum Data Transfer Rate | 100Gbps |
| Type | Single Mode |
Connector(s)
| Connector A | 1 - Fiber Optic LC Duplex Male |
|---|---|
| Connector B | 1 - Fiber Optic SC Duplex Male |
Environmental
| Humidity | 0~90% RH |
|---|---|
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Physical Characteristics
| Cable Length | 13.1 ft [4 m] |
|---|---|
| Color | Yellow |
| Product Length | 13.1 ft [4 m] |
| Weight of Product | 2.3 oz [64 g] |
Packaging Information
| Package Height | 0.8 in [20 mm] |
|---|---|
| Package Length | 8.3 in [21 cm] |
| Package Quantity | 1 |
| Package Width | 7.5 in [19 cm] |
| Shipping (Package) Weight | 2.6 oz [74 g] |
What's in the Box
| Included in Package | 1 - 4m Single Mode Duplex Fiber Patch Cable LC-SC |
|---|
| SKU | SMFIBLCSC4 |
| Barcode # | 65030853088 |
| Brand | Startech |
| Shipping Weight | 0.0700kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.001050000m3 |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
