STARTECH MXTMMHQ5M

5 m coax high-resolution VGA monitor cable

A durable HD15 male-to-male coaxial VGA cable for high-resolution analog video connections, with shielding and ferrite EMI protection.

5 mHD15 M/M1920x1200+Lifetime warranty

Key capabilities

High-resolution VGA

Designed for high-resolution VGA applications of 1920x1200 and above.

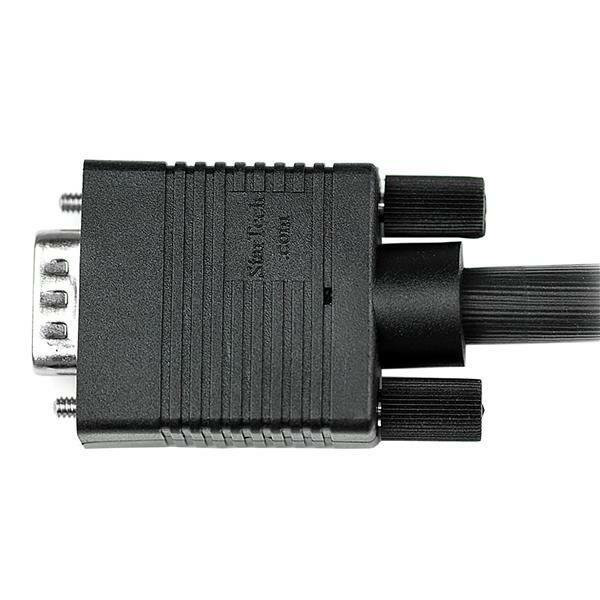

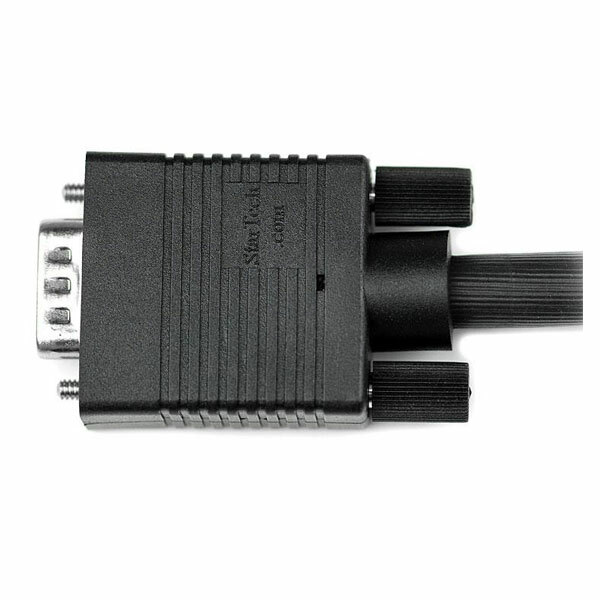

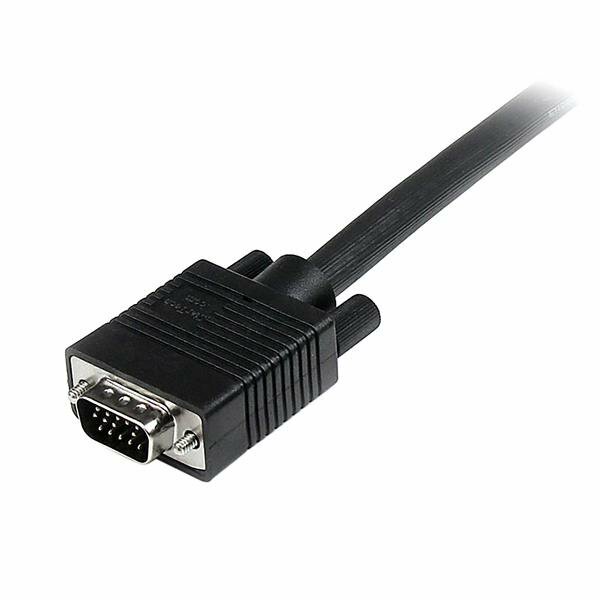

HD15 male to male

VGA 15-pin high-density D-Sub male connectors at both ends.

Coaxial signal construction

Coaxial cable construction helps reduce ghosting and fuzzy images compared with non-coaxial VGA cabling.

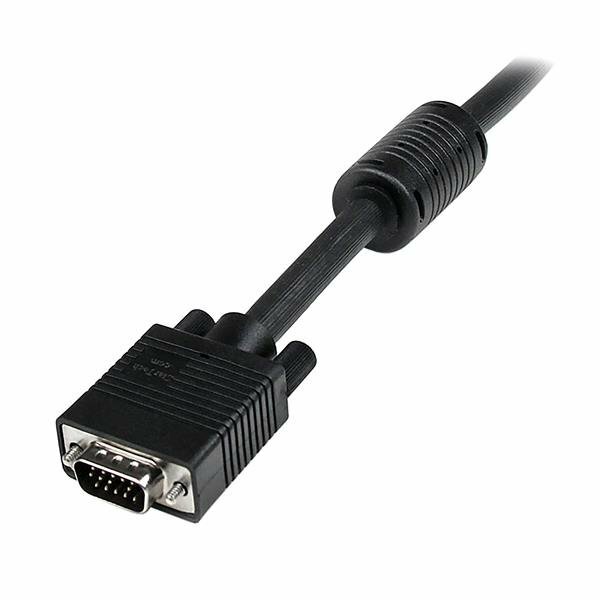

EMI protection

Shielding plus one ferrite near the connector end helps protect the analog video signal from interference.

What to know

Exact cable length: 5 m.
This is an analog VGA video cable; both connected devices need compatible VGA ports.
Cable performance depends on the connected source, display and supported VGA mode.

Australian warranty confidence

This is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia. Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech MXTMMHQ5M?

The StarTech MXTMMHQ5M is a 5 m coaxial VGA monitor cable with HD15 male connectors at both ends for connecting VGA video equipment.

What connectors are on this VGA cable?

It has one VGA 15-pin high-density D-Sub male connector at each end.

What resolution is this cable designed for?

StarTech describes this high-resolution VGA cable as ideally suited to applications of 1920x1200 and above.

How long is the cable?

The cable length is 5 m.

How is the cable constructed for signal quality?

It uses coaxial construction, aluminum-Mylar foil with braid shielding and a ferrite near the connector end to help reduce ghosting, fuzzy images and EMI interference.

What are the main physical cable specifications?

The cable is black, uses 28 AWG conductors and has a PVC jacket with a CMG general-purpose fire rating.

What is included in the package?

1 - 5m Coax High Resolution Monitor VGA Cable - HD15 M/M.

What warranty applies in Australia?

The StarTech MXTMMHQ5M is covered by a Lifetime official StarTech.com manufacturer warranty in Australia when supplied by DeviceDeal. Retain the DeviceDeal tax invoice; warranty coverage and claims are subject to StarTech.com terms, eligibility requirements and product assessment.

(MXTMMHQ5M)

Features and highlights

High-resolution VGA

Designed for high-resolution VGA applications of 1920x1200 and above.

HD15 male to male

VGA 15-pin high-density D-Sub male connectors at both ends.

Coaxial signal construction

Coaxial cable construction helps reduce ghosting and fuzzy images compared with non-coaxial VGA cabling.

EMI protection

Shielding plus one ferrite near the connector end helps protect the analog video signal from interference.

Key highlights

5 m black VGA cable
28 AWG conductors
CMG-rated PVC jacket
Aluminum-Mylar foil with braid shielding
Lifetime official StarTech.com manufacturer warranty in Australia.

Technical specifications

StarTech MXTMMHQ5M coax high-resolution VGA monitor cable

Warranty Information

Warranty	Lifetime

Hardware

Cable Jacket Type	PVC - Polyvinyl Chloride
Cable Shield Type	Aluminum-Mylar Foil with Braid
Connector Plating	Nickel
Fire Rating	CMG Rated (General Purpose)
Number of Conductors	14
Number of Ferrites	1

Connector(s)

Connector A	1 - VGA (15 pin, High Density D-Sub) Male
Connector B	1 - VGA (15 pin, High Density D-Sub) Male

Environmental

Humidity	0 - 80 %RH
Operating Temperature	0 to 60 ¡C
Storage Temperature	-20 to 80 ¡C

Physical Characteristics

Cable Length	16.4 ft [5 m]
Color	Black
Product Length	16.4 ft [5 m]
Weight of Product	19.6 oz [556 g]
Wire Gauge	28 AWG

Packaging Information

Package Height	3.4 in [87 mm]
Package Length	8.7 in [22 cm]
Package Quantity	1
Package Width	7.9 in [20 cm]
Shipping (Package) Weight	1.2 lb [0.6 kg]

What's in the Box

Included in Package	1 - 5m Coax High Resolution Monitor VGA Cable - HD15 M/M

SKU	MXTMMHQ5M
Barcode #	65030847728
Brand	Startech
Shipping Weight	0.5600kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.340m
Shipping Cubic	0.001700000m3
