Adapter and cable in one
The integrated 2m cable creates a direct USB-C-to-VGA connection with fewer joins and less desktop clutter.
StarTech 2m USB Type--C to VGA Adapter Cable - CDP2VGAMM2MB
Model # CDP2VGAMM2MB
-
SKU: CDP2VGAMM2MB
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2VGAMM2MB

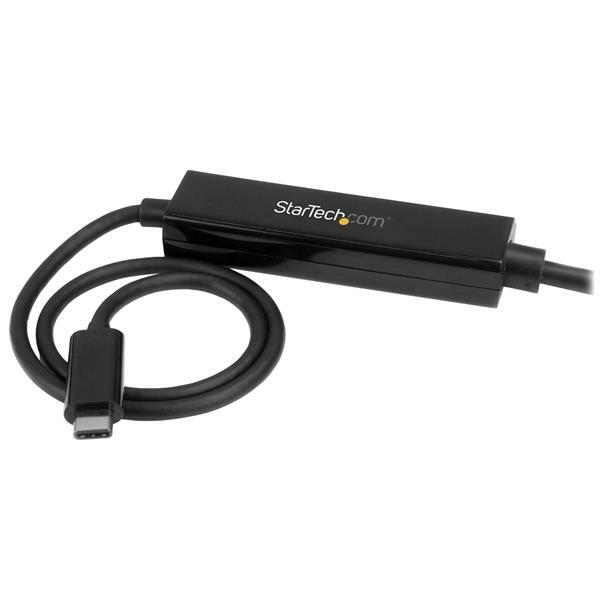

StarTech 2m USB-C to VGA Adapter Cable - 1920 x 1200
Connect a USB-C or Thunderbolt host directly to one VGA monitor or projector with a 2m active cable supporting 1920 x 1200 at 60Hz.
2m cable1920 x 1200EDID/DDC3-year warranty
Product overview
CDP2VGAMM2MB combines the adapter and cable in one direct, one-way connection. It converts USB-C DisplayPort Alt Mode video to analogue VGA, supports EDID/DDC pass-through and carries no audio.
Features that matter
1920 x 1200 video
Supports one VGA display at up to 1920 x 1200 or 1080p at 60Hz.
EDID/DDC pass-through
Passes display identification data to help the host select supported resolutions and timings.
Driverless active conversion
Built-in electronics convert the digital DisplayPort Alt Mode signal to analogue VGA without an additional display driver.
What to know before ordering
Host requirement
The USB-C or Thunderbolt host port must support DisplayPort Alt Mode video output.
Video only
VGA does not carry audio. Use a separate audio connection when sound is required.
One-way cable
Connect USB-C to the host and VGA to the display. The cable is not bidirectional and provides no Power Delivery pass-through.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2VGAMM2MB?
CDP2VGAMM2MB is a 2m active USB-C to VGA adapter cable for connecting one DisplayPort Alt Mode host directly to a VGA display.
What is the maximum resolution?
The verified maximum is 1920 x 1200 or 1080p at 60Hz, with lower VGA resolutions also supported.
What must the USB-C port support?
The host USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.
Does VGA carry audio?
No. VGA carries video only, so a separate audio connection is required.
Is the cable bidirectional?
No. It converts video from a USB-C DisplayPort Alt Mode host to a VGA display.
Does it require a driver?
No additional display driver is required for a compatible host.
What is included in the package?
The package contains one 2m USB-C to VGA adapter cable.
What warranty applies in Australia?
CDP2VGAMM2MB is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2VGAMM2MB)
Features and highlights
CDP2VGAMM2MB key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Adapter and cable in one
The integrated 2m cable creates a direct USB-C-to-VGA connection with fewer joins and less desktop clutter.
1920 x 1200 video
Supports one VGA display at up to 1920 x 1200 or 1080p at 60Hz.
EDID/DDC pass-through
Passes display identification data to help the host select supported resolutions and timings.
Driverless active conversion
Built-in electronics convert the digital DisplayPort Alt Mode signal to analogue VGA without an additional display driver.
Key highlights
- 2m (6.6ft) active cable
- Up to 1920 x 1200 at 60Hz
- DisplayPort 1.2 Alt Mode HBR2
- Single VGA display · no audio
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2VGAMM2MB
Verified specifications and package details for the exact model.
General and Connectivity
Product type
Active USB-C to VGA adapter cable
Cable length
2m (6.6ft)
Connectors
USB-C DisplayPort Alt Mode male to VGA male
Displays supported
1
Colour
Black
Warranty
3 Years
Video
Maximum resolution
1920 x 1200 or 1080p at 60Hz
Bandwidth mode
DisplayPort 1.2 Alt Mode HBR2
EDID / DDC pass-through
Yes
Audio
Not supported over VGA
Power Delivery
No pass-through
Hardware and Requirements
Chipsets
VIA Labs VL103; NXP PTN3355
Host requirement
USB-C DisplayPort Alt Mode
Direction
USB-C host to VGA display only
Driver requirement
No additional display driver
Physical and Packaging
Product dimensions (L x W x H)
2000 x 34 x 15mm
Product weight
132g
Operating temperature
070°C
Storage temperature
-1080°C
Humidity
590% RH, non-condensing
Package dimensions (W x D x H)
122 x 187 x 27mm
Shipping weight
110g
Package contents
1 x USB-C to VGA adapter cable
| SKU | CDP2VGAMM2MB |
| Barcode # | 65030865562 |
| Brand | STARTECH |
| Shipping Weight | 0.1200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000750000m3 |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDP2VGAMM2MB.
